2-1
RDR-VX555

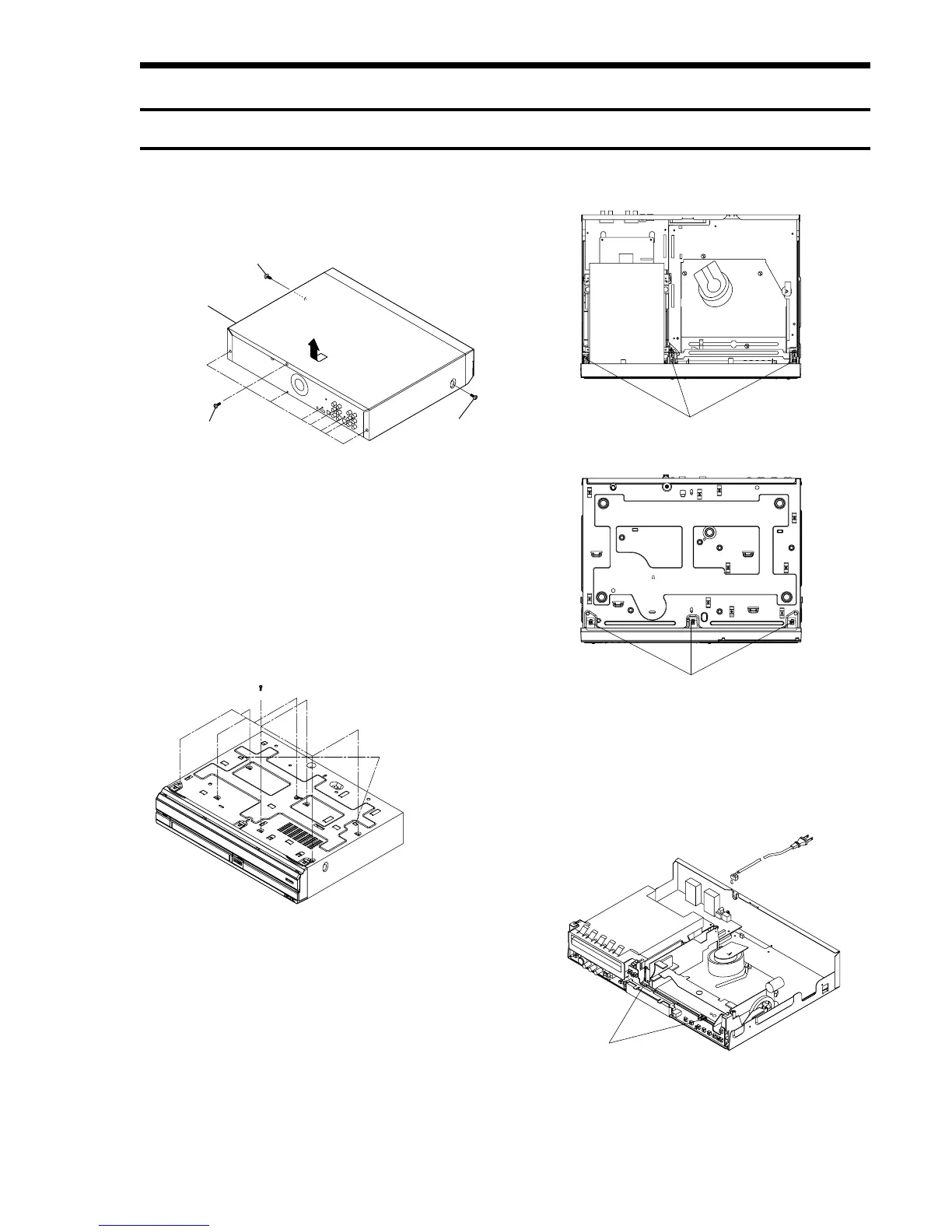

2. DISASSEMBLY AND REASSEMBLY
2-1 CABINET AND PCB
Fig. 2-1 Cabinet Top Removal
Fig. 2-2 Bottom Cover Removal
2-1-1 Cabinet Top Removal
2-1-2 Bottom Cover Removal
2-1-3 Ass’y Front Panel Removal
Fig. 2-3 Ass’y Front Panel Removal
2-1-4 Function PCB Removal
Fig. 2-4 Function PCB Removal
(Bottom View)
1 REMOVE 8 SCREWS
2 RELEASE 2 HOOKS
2 RELEASE 3 HOOKS
(Bottom View)
1 RELEASE 2 HOOKS
1 REMOVE 1 SCREW
3 Lift up the Cabinet Top
in the direction of arrow
2 REMOVE
8 SCREWS
1 REMOVE
1 SCREW
1 RELEASE 3 HOOKS
(Top View)
