Sony RMT-D240A - 2. DISASSEMBLY AND REASSEMBLY (continued)

2-2

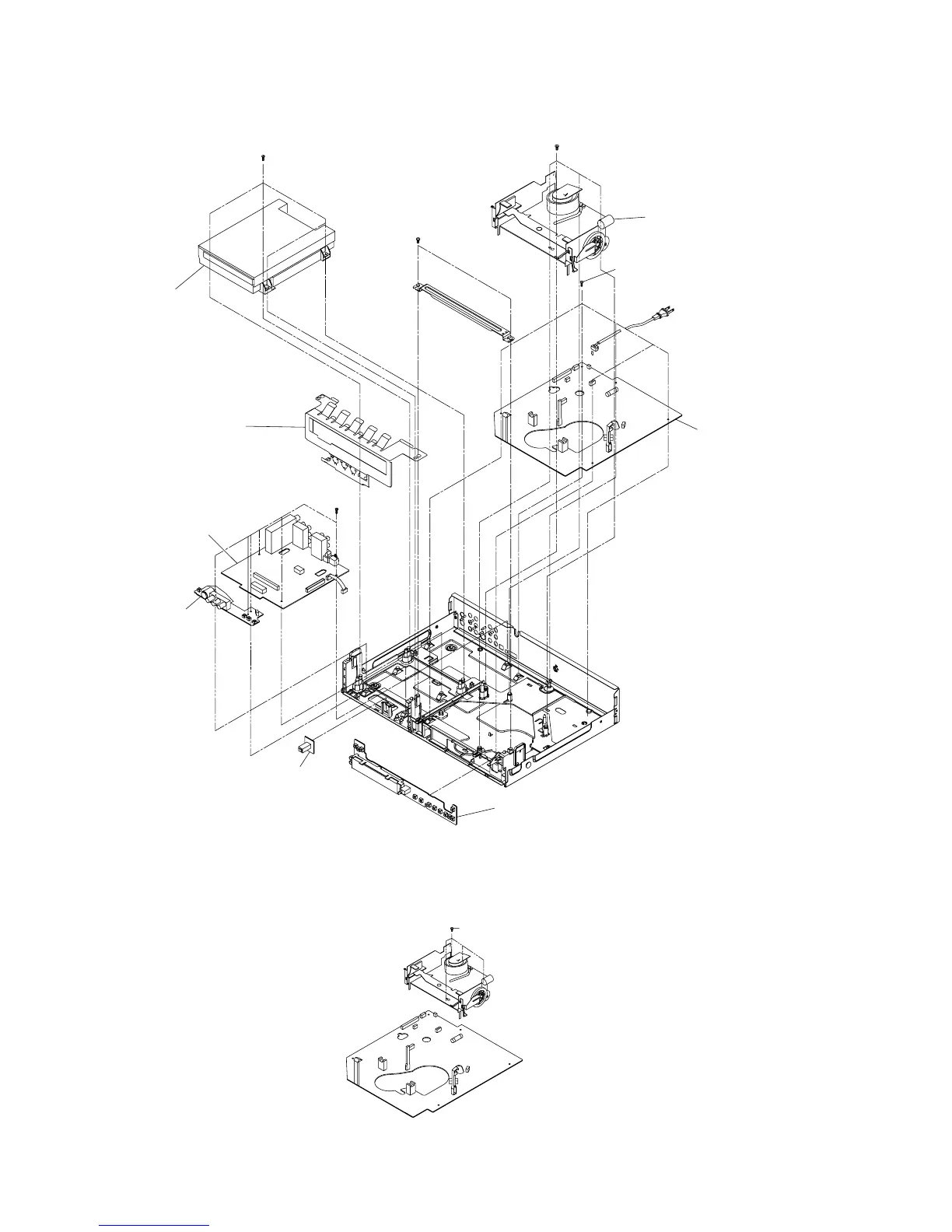

Fig. 2-5 Chassis Removal
2-1-5 Chassis Removal
2-1-6 VCR Main PCB Removal
Fig. 2-6 VCR Main PCB Removal
2 REMOVE 4 SCREWS
5 REMOVE 5 SCREWS
4 REMOVE 6
SCREWS
1 REMOVE 2 SCREWS
3 REMOVE 4 SCREWS
DVD DECK
DVD MAIN PCB
VCR DECK
VCR MAIN PCB
FRONT JACK PCB
DV JACK PCB
FUNCTION PCB
SHIELD LOADER
1 REMOVE 4 SCREWS
