2-5

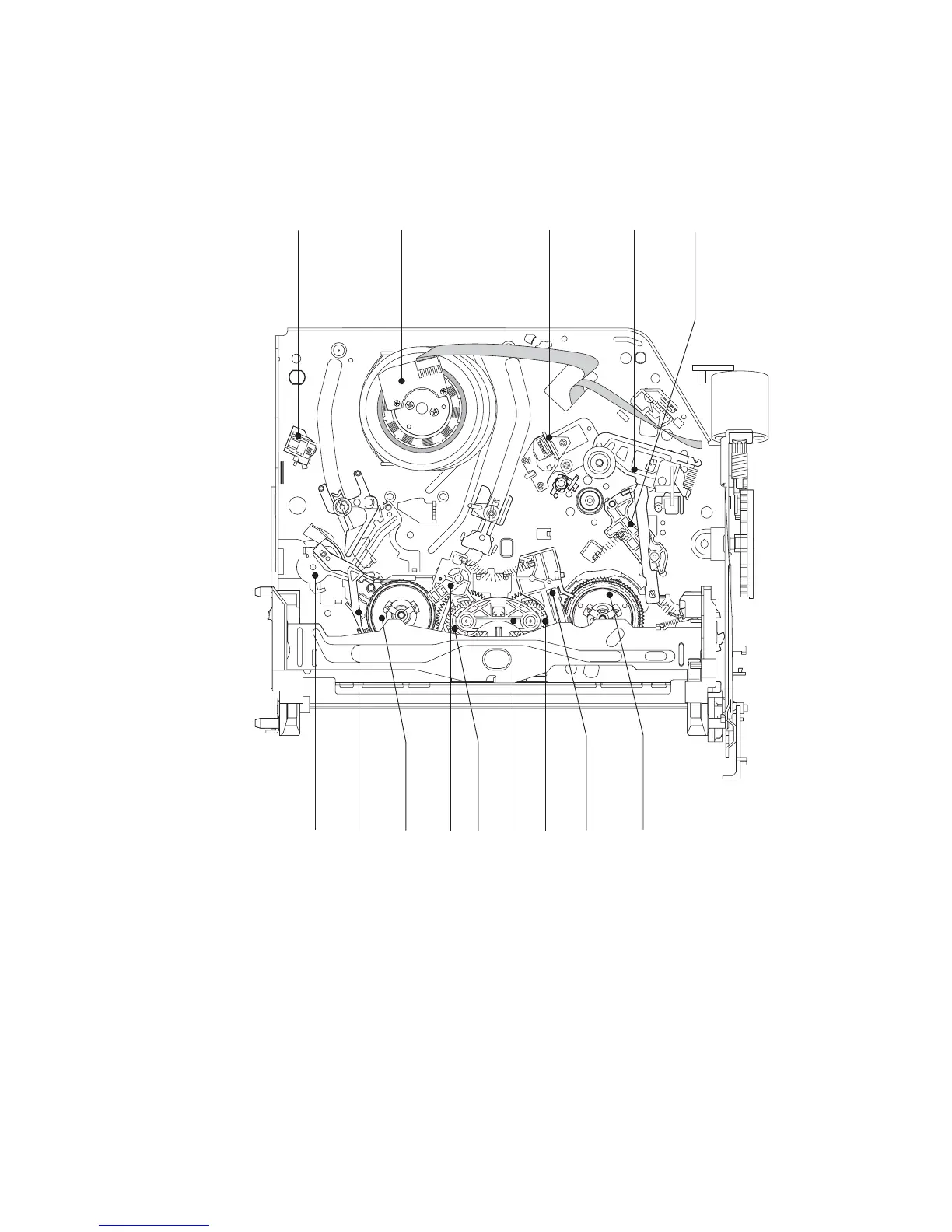

Fig. 2-9 Top Parts Location-2
1 FE HEAD
2 ASS’Y CYLINDER
3 ASS’Y ACE HEAD
4 ASS’Y LEVER UNIT PINCH
5 ASS’Y LEVER #9 GUIDE
6 ASS’Y LEVER TENSION
7 ASS’Y BAND BRAKE
8 DISK S REEL
9 ASS’Y LEVER S BRAKE
0 GEAR IDLE
qa LEVER IDLE
qs ASS’Y LEVER T BRAKE
qd DISK T REEL
1
2
6
789 qa0qs
qd
0
34
5
