SA-WMSP1
SECTION 1
GENERAL

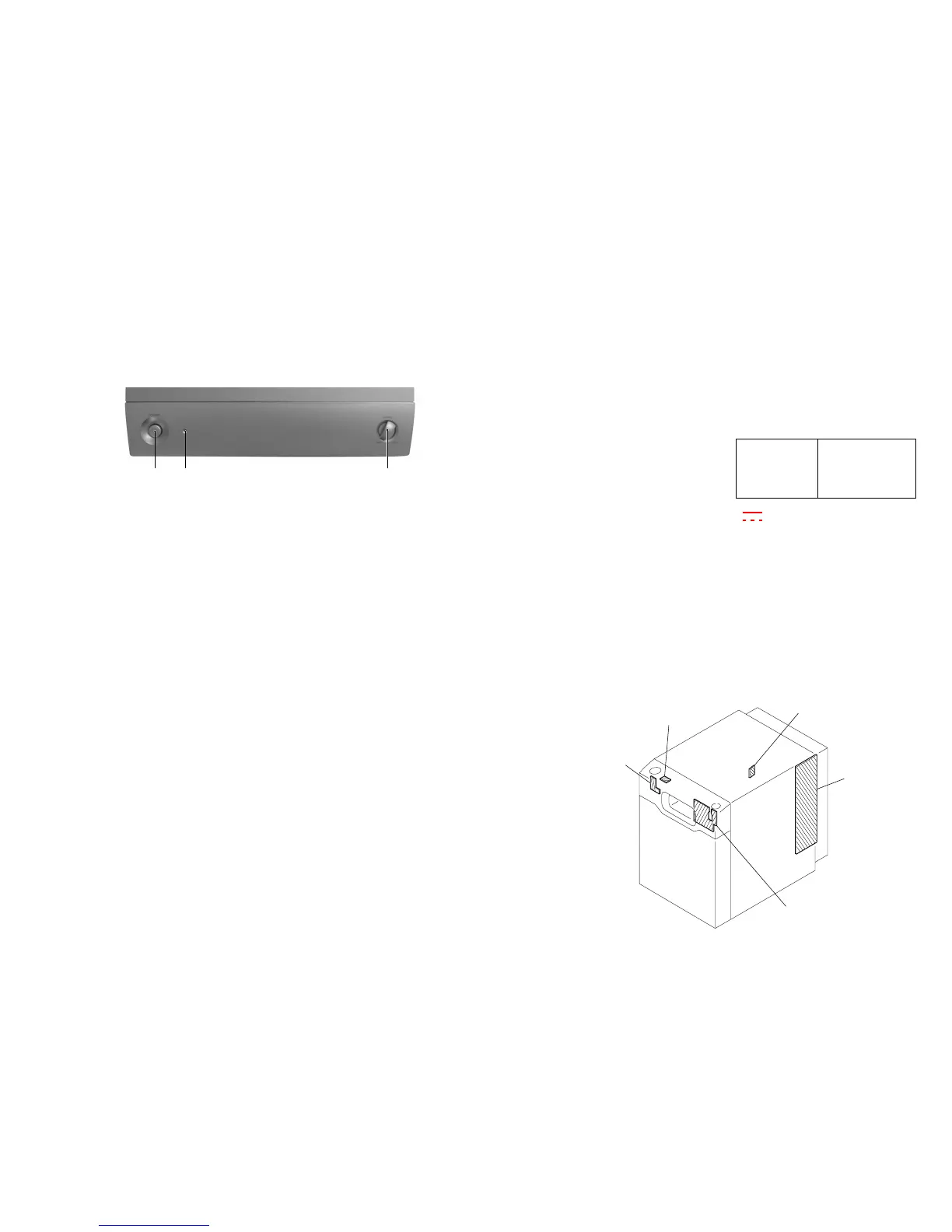

• Location of controls
– Top view (a part) –
SECTION 2
DIAGRAMS
1 POWER button
2 POWER indicator
3 LEVEL dial
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
W or less unless otherwise
specified.
• C : panel designation.
For printed wiring boards.
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
• : B+ Line.
• : B– Line.
• Voltages are dc with respect to ground under no-signal con-
ditions.
no mark : Power on
∗ : Impossible to measure
• Voltages are taken with a VOM (Input impedance 10MΩ).
Voltage variations may be noted due to normal preduction
tolerances.
• Signal path.
K : AUDIO
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
2-1. Circuit Boards Location
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
• Abbreviation
CND : Canadian model
SP : Singapore model
MX : Mexican model
AUS : Australia model
MAIN board
POWER IC board
LED board
SWITCH board
CONTROL board
1 2 3
