SA-WMSP1

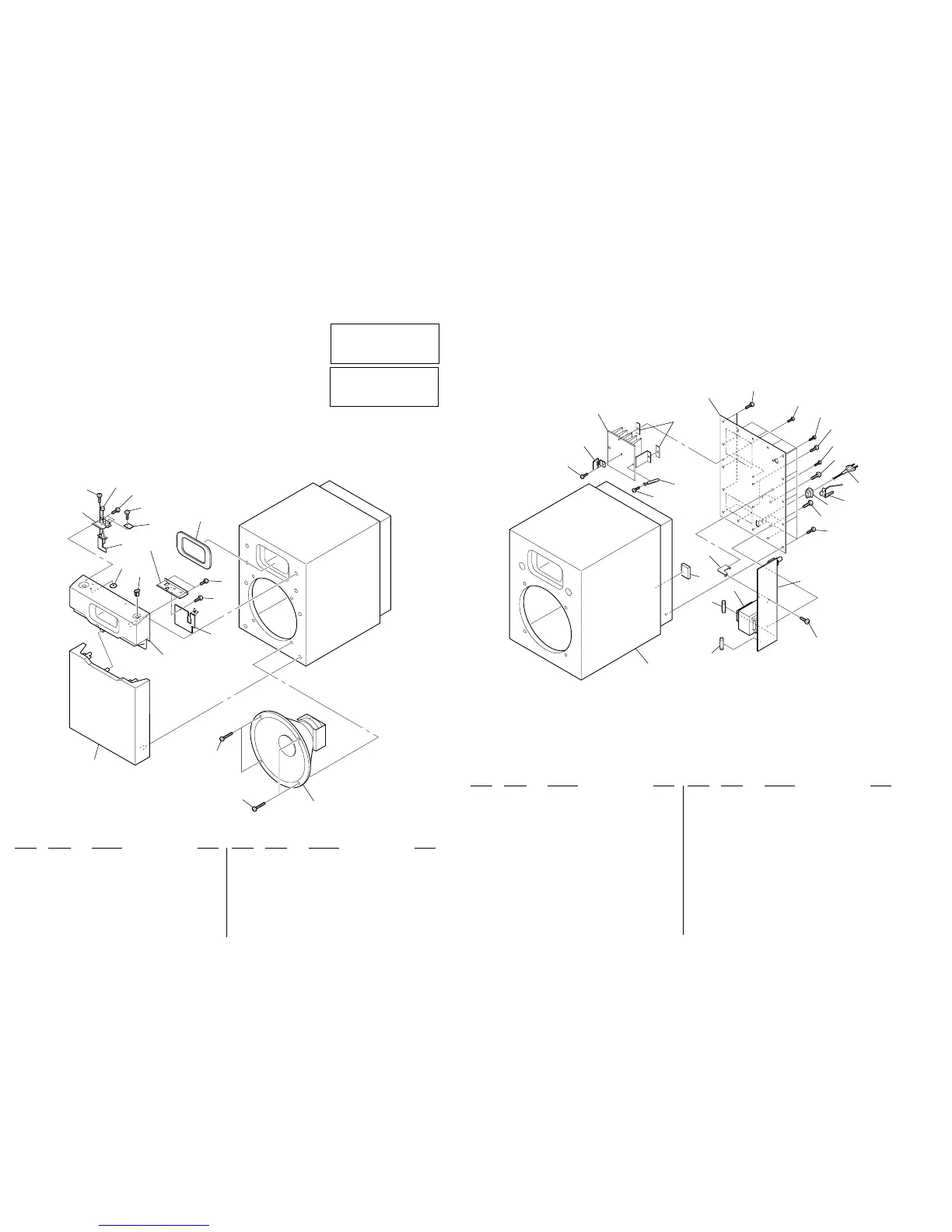

3-1. FRONT SECTION
SENTION 3
EXPLODED VIEWS
3-2. AMP SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
• Abbreviation
CND : Canadian model
SP : Singapore model
MX : Mexican model
AUS : Australia model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4953-515-1 FRAME(SILVER) ASSY, GRILLE (SILVER)
1 X-4953-516-1 FRAME(BLACK) ASSY, GRILLE (BLACK)
2 4-232-530-01 PANEL, FRONT (SILVER)
2 4-232-530-11 PANEL, FRONT (BLACK)
3 1-680-714-13 CONTROL BOARD
4 4-232-527-01 KNOB,VOLUME (SILVER)
4 4-232-527-11 KNOB,VOLUME (BLACK)
5 4-232-531-01 PLATE, LIGHT GUIDE
6 4-973-938-81 KNOB(A), PUSH (SILVER)
6 4-973-938-91 KNOB(A), PUSH (BLACK)
7 7-685-647-79 SCREW+BVTP 3X10 TYPE2 IT-3
8 1-680-715-13 SWITCH BOARD
9 1-680-716-13 LEDBOARD
10 4-232-534-01 PACKING (DUCT)
11 4-235-677-01 SCREW (4X20) (TYPE1)
SP101 1-529-995-11 SPEAKER (20CM)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 1-680-713-13 MAINBOARD
52 A-4412-797-A CABINET ASSY (SILVER)
52 A-4412-798-A CABINET ASSY (BLACK)
* 53 3-703-150-11 CLAMP
54 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
55 1-680-717-13 POWER IC BOARD
56 4-232-526-11 PANEL, REAR (US)
56 4-232-526-21 PANEL, REAR (CND)
56 4-232-526-31 PANEL, REAR (MX)
56 4-232-526-41 PANEL, REAR (SP,AEP,UK)
56 4-232-526-51 PANEL, REAR (E)
56 4-232-526-61 PANEL, REAR (AUS)
57 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
0 58 1-696-845-31 CORD, POWER (AUS)
0 58 1-777-071-11 CORD, POWER (SP,AEP,UK)
0 58 1-783-525-11 CORD, POWER (TRACKING)(E)
0 58 1-783-820-11 CORD, POWER (US,MX,CND)
* 59 3-703-244-00 BUSHING (2104), CORD
60 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
61 4-234-637-01 CUSHION (TRANSFORMER)
62 4-956-370-02 BAND, PLUG FIXED (UK)
0 F1 1-532-500-31 FUSE (T680mAL/250V)(SP,AEP,UK)
0 F1 1-532-502-31 FUSE (T1.25AL/250V)(E)
0 F1 1-533-614-11 FUSE, GLASS CYLINDERICAL (1.6A/125V)
(US,MX,CND)
0 F2 1-532-499-31 FUSE (T400mAL/250V)(E,AUS)
0 T1 1-435-879-11 TRANSFORMER, POWER (US,MX,CND)
0 T1 1-435-880-11 TRANSFORMER, POWER (SP,AEP,UK)
0 T1 1-435-881-11 TRANSFORMER, POWER (E,AUS)
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
SP101
not supplied
not supplied
1
2
3
4
5
6
8
7
7
7
7
9
7
10
11
11
F1
F2
T1
not supplied
not supplied
not supplied
51
52
53
54
60
54
55
56
57
60
60
60
57
57
57
57
58
59
62
61
