44
SA-WMSP1

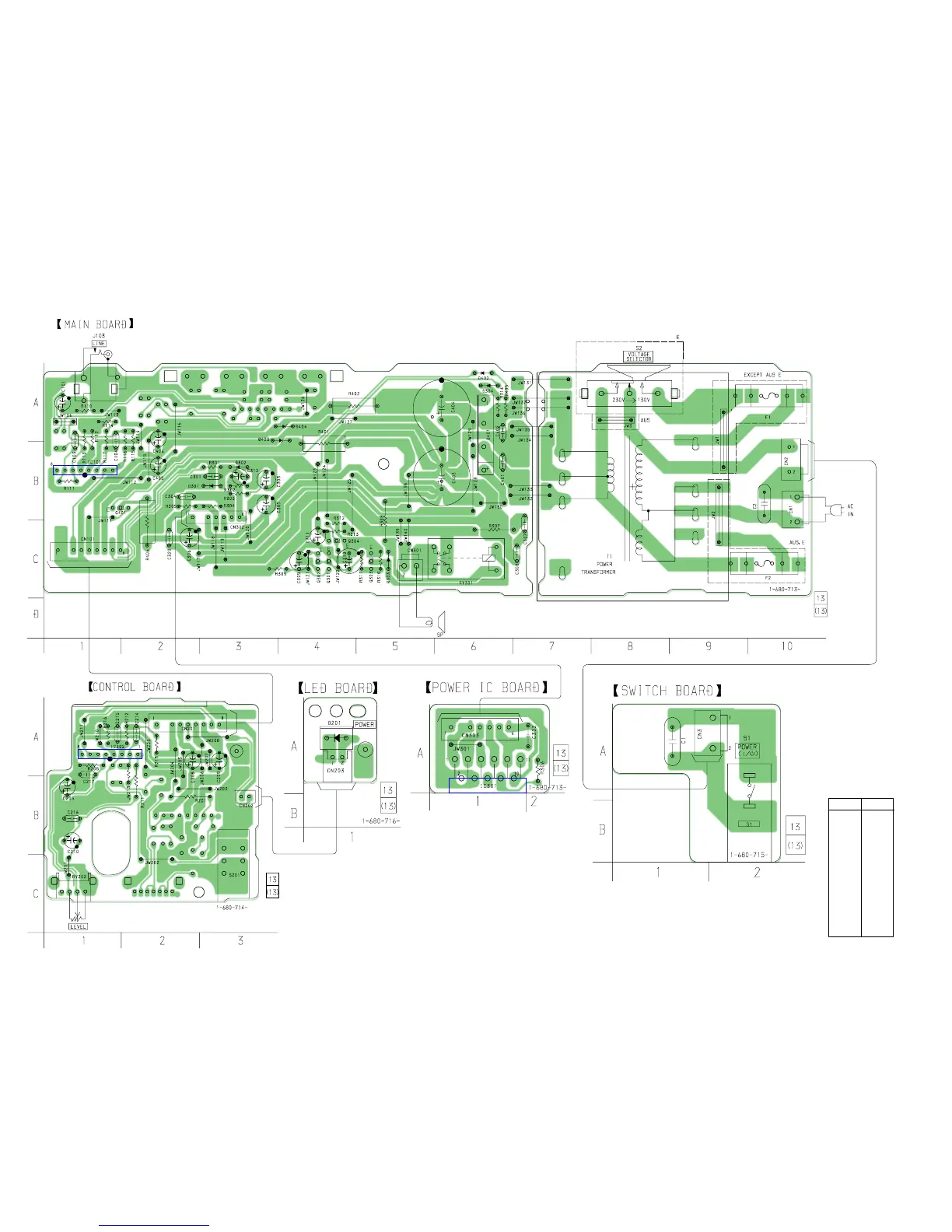

2-2. PRINTED WIRING BOARD
• See page 3 for Circuit Boards Location.
D301 B-3
D302 B-3
D303 C-5
D304 A-6
D401 A-6
D402 A-6
D403 A-3
D404 A-3
IC101 B-1
Q301 C-4
Q302 C-4
Q303 C-5
Q304 C-4
Q401 B-1
• Semiconductor
Location
Ref. No. Location
