Sony SA-WMSP75 - Switch

Ref. No. Part No. Description Remarks
11
SA-WMSP75/WMSP85
SWITCH
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
< FUSE HOLDER >
FH901 1-533-399-11 FUSE HOLDER
FH902 1-533-399-11 FUSE HOLDER (E2)
FH951 1-533-399-11 FUSE HOLDER
FH952 1-533-399-11 FUSE HOLDER (E2)
< SWITCH >

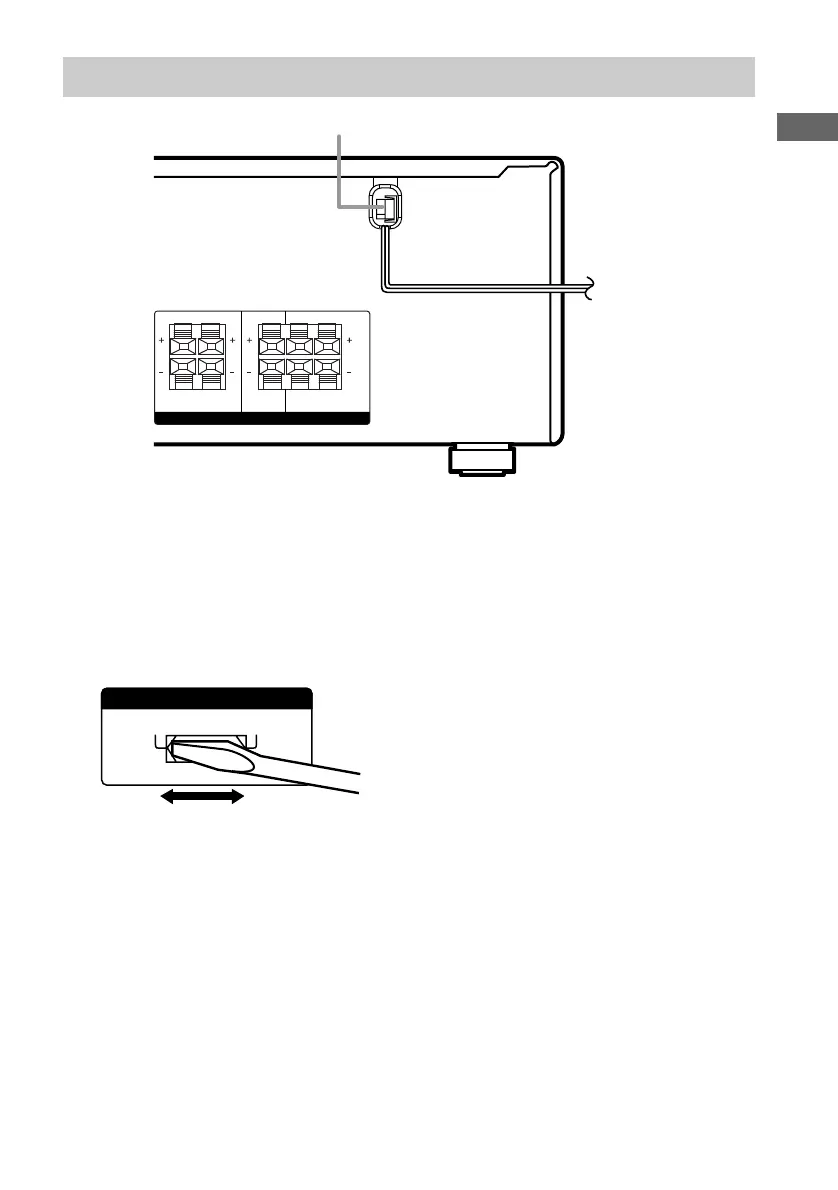

0 S2 1-572-675-11 SWITCH, POWER VOLTAGE CHANGE
(VOLTAGE SELECTOR)(E2)
************************************************************
SWITCH BOARD
*************
< CAPACITOR >
0 C901 1-113-924-11 CERAMIC 0.0047uF 20.00% 250V
< CONNECTOR >
CN3 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
* CN901 1-564-517-11 PLUG, CONNECTOR 2P
< DIODE >
D901 8-719-058-03 DIODE SEL5423E-TP15 (POWER)
< SWITCH >
0 S901 1-554-920-11 SWITCH, PUSH (AC POWER)(1 KEY)(POWER)
************************************************************
MISCELLANEOUS
**************
0 57 1-696-847-11 CORD, POWER (AUS)
0 57 1-769-744-11 CORD, POWER (AEP,UK,SP)
0 57 1-783-532-11 CORD, POWER (US,CND,MX)
0 57 1-792-823-12 CORD, POWER (TRACKING) (E2)
0 F901 1-533-450-11 FUSE, GLASS TUBE 2.5A/125V (US,CND,MX)
0 F901 1-532-463-51 FUSE T1AL / 250V (EXCEPT : US,CND,MX)
0 F902 1-532-464-31 FUSE T2.5AL /250V (E2)
SP1 1-529-995-12 SPEAKER (20cm)(WMSP75)
SP1 1-825-004-13 SPEAKER (20cm)(WMSP85)
0 T1 1-439-625-11 POWER TRANSFORMER
(WMSP85 : US,CND,MX)
0 T1 1-439-628-11 POWER TRANSFORMER (WMSP75 : US,CND)
0 T1 1-439-623-11 POWER TRANSFORMER (E2)
0 T1 1-439-624-11 POWER TRANSFORMER (AEP,UK,SP,AUS)
Ver 1.2 2003.06
POWER TRANS
