Sony SA-WMSP75 - Exploded Views; Front Section

SECTION 2
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
E2 : 120V AC Area in E model
CND : Canadian model
MX : Mexican model
SP : Singapore model
7
SA-WMSP75/WMSP85
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.

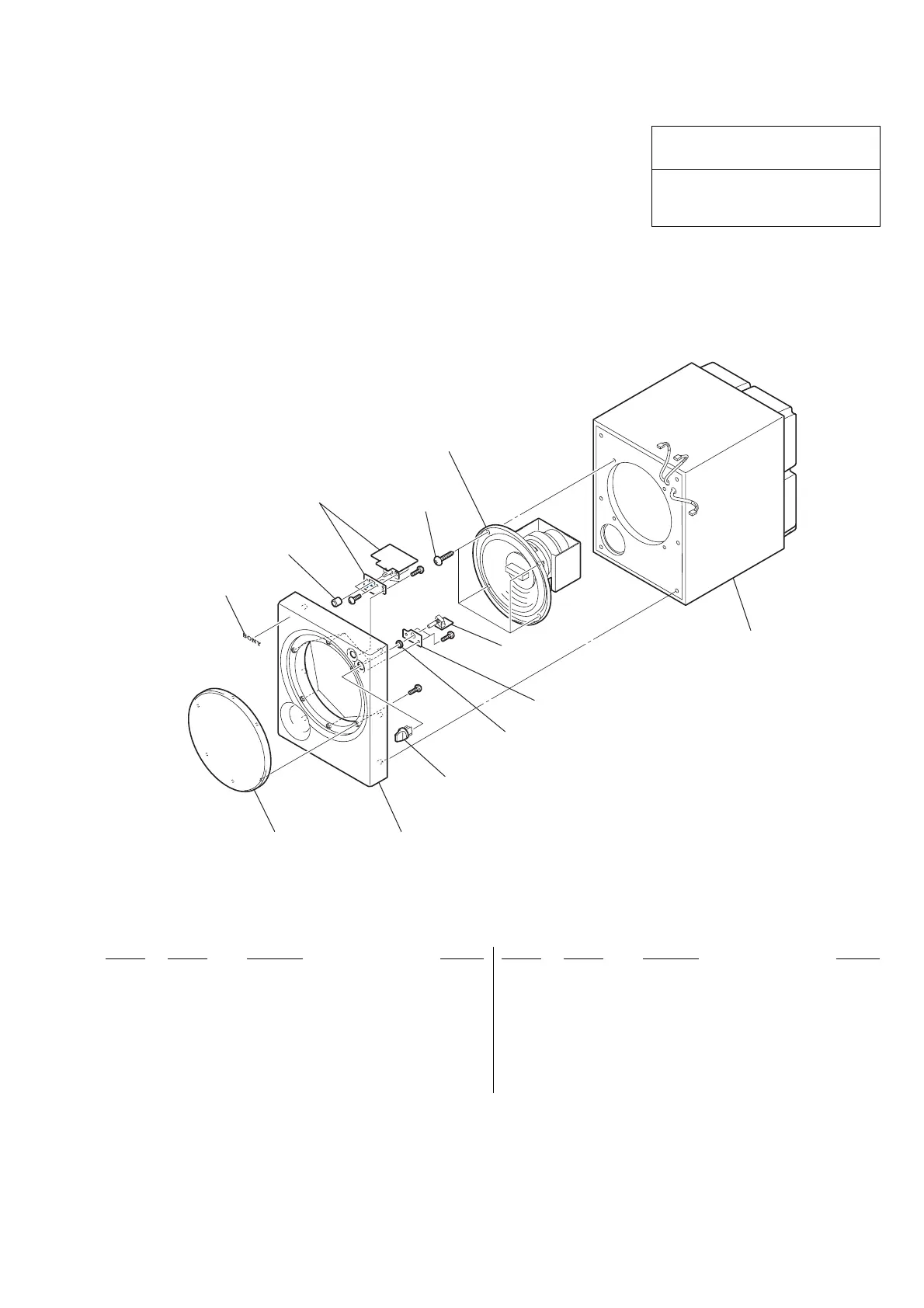

2-1. Front Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-243-842-01 NET, GRILLE (SILVER)
1 4-243-842-11 NET, GRILLE (BLACK)
2 4-998-417-02 EMBLEM (No.5), SONY
3 4-243-834-01 PANEL, FRONT (SILVER)(US,CND)
3 4-243-834-11 PANEL, FRONT (BLACK)(WMSP75 : US)
3 4-243-834-21 PANEL, FRONT (SILVER)(EXCEPT US,CND)
4 4-973-938-83 KNOB (A), PUSH
6 4-999-482-01 KNOB (VOL)(SILVER)
6 4-999-482-11 KNOB (VOL)(BLACK)
8 4-235-677-01 SCREW (4X20)(TYPE1), +BVTP
SP1 1-529-995-12 SPEAKER (20cm)(WMSP75)
SP1 1-825-004-13 SPEAKER (20cm)(WMSP85)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
1
2
3
6
4
8
#1
#1
#1
#1
Amp section
SP1
not
supplied
not
supplied
supplied
with RV801
not
supplied
Ver 1.3 2003.12
