Sony SA-WP780 - OVERALL SECTION-2 Parts

10
SA-WP780
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(Continued from page 9)
6 4-245-976-01 SCREW (4X16) (TYPE1), +BVTP
* 7 3-703-244-00 BUSHING (2104), CORD
8 2-661-978-02 REAR COVER (US, CND)
0 F900 1-532-463-33 FUSE T1AL/250V (E51)
0 F901 1-532-463-33 FUSE T1AL/250V
(AEP, UK, RU, SP, SP6, AUS, AR)
0 F901 1-533-690-12 FUSE, GLASS CYLINDRICAL 3.15A/125V(DIA.5)
(US, CND, E51)
0 F902 1-532-463-33 FUSE T1AL/250V (E51)

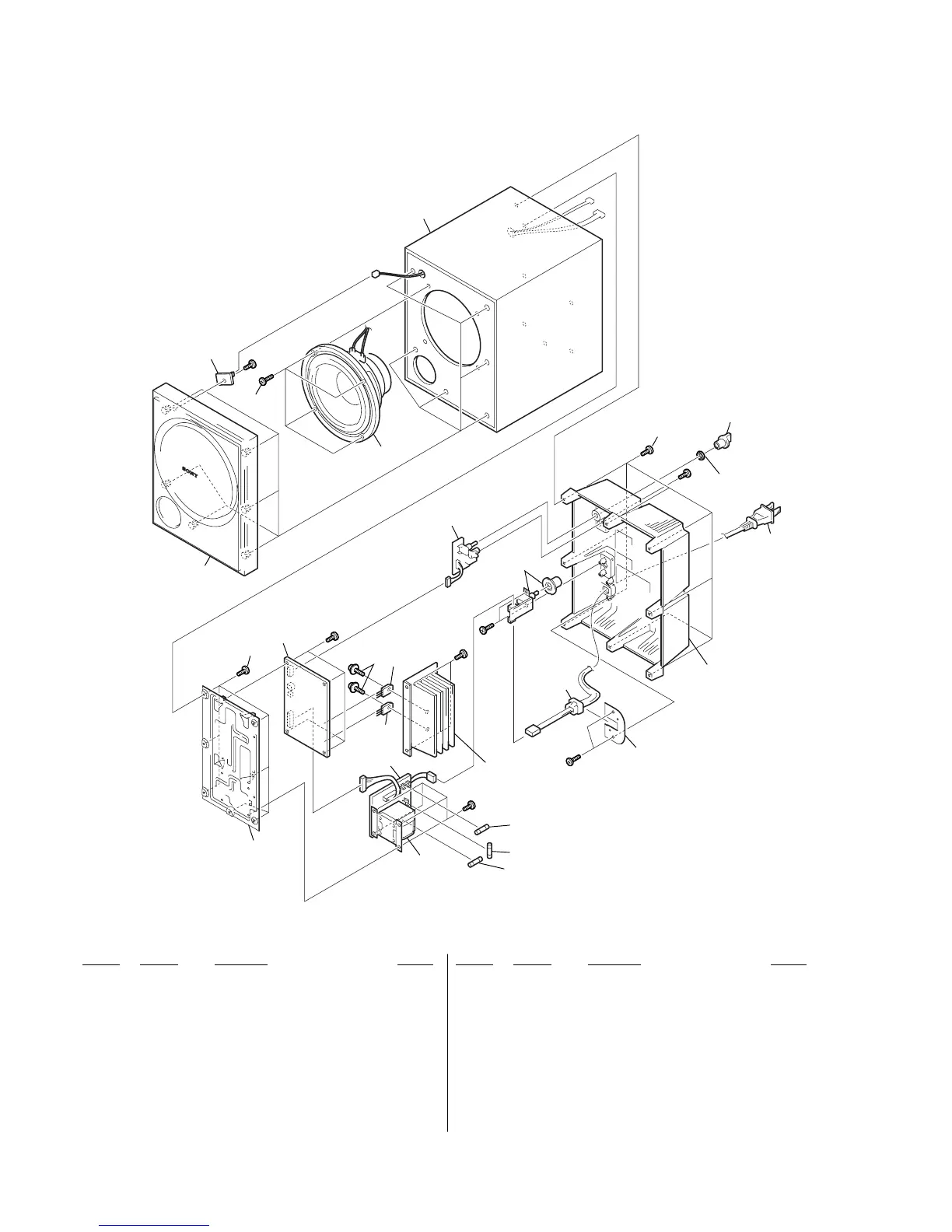

2-2. OVERALL SECTION-2
1
6
SP1
#2
including
RV801
F900
Q307
Q308
F901
F902
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
6
2
7
3
8
#2
#2
#2
#2
(US, CND)
not supplied
(EXCEPT US,CND)
not
supplied
#1
#1
4
6
5
Q307 6-702-391-01 IC MP1620-OPY-MK
Q308 6-702-390-01 IC MN2488-OPY-MK
SP1 1-826-412-11 LOUDSPEAKER (20cm)
0 T1 1-443-883-11 TRANSFORMER, POWER (E51)
0 T1 1-443-885-21 TRANSFORMER, POWER (US, CND)
0 T1 1-443-886-21 TRANSFORMER, POWER
(AEP, UK, RU, SP, SP6, AUS, AR)
#1 7-685-881-09 SCREW +BVTT 4X8 (S)
#2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
