9
SA-WP780
SECTION 2
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AR : Argentine model
AUS:Australian model
CND : Canadian model
E51 : Chilean and Peruvian models
RU : Russian model
SP : Singapore model
SP6 : Singapore and Malaysia models
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 A-1157-214-A FRONT PANEL ASSY (BLACK)
(US, CND, AEP, UK, E51, SP, SP6, AUS, AR)
1 A-1171-410-A FRONT PANEL ASSY (SILVER)
(CND, AEP, UK, RU, SP, SP6, AUS)
2 4-999-482-81 KNOB (VOL)
0 3 1-696-848-81 CORD, POWER (AUS)
0 3 1-777-071-23 CORD, POWER (AEP, UK, RU, E51, SP, SP6)
0 3 1-783-820-11 CORD, POWER (US, CND)
03 1-783-941-12 CORD, POWER (AR)
4 A-1156-567-A MAIN BOARD, COMPLETE
(EXCEPT E51, SP, AR)
4 A-1175-815-A MAIN BOARD, COMPLETE (E51)
4 A-1237-500-A MAIN BOARD, COMPLETE (SP)
4 A-1237-502-A MAIN BOARD, COMPLETE (AR)
5 3-905-609-32 SCREW (TRANSISTOR)
(Continued on page 10)
1
6
SP1
#2
including
RV801
F900
Q307
Q308
F901
F902
T1
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
6
2
7
3
8
#2
#2
#2
#2
(US, CND)
not supplied
(EXCEPT US,CND)
not
supplied
#1
#1
4
6
5

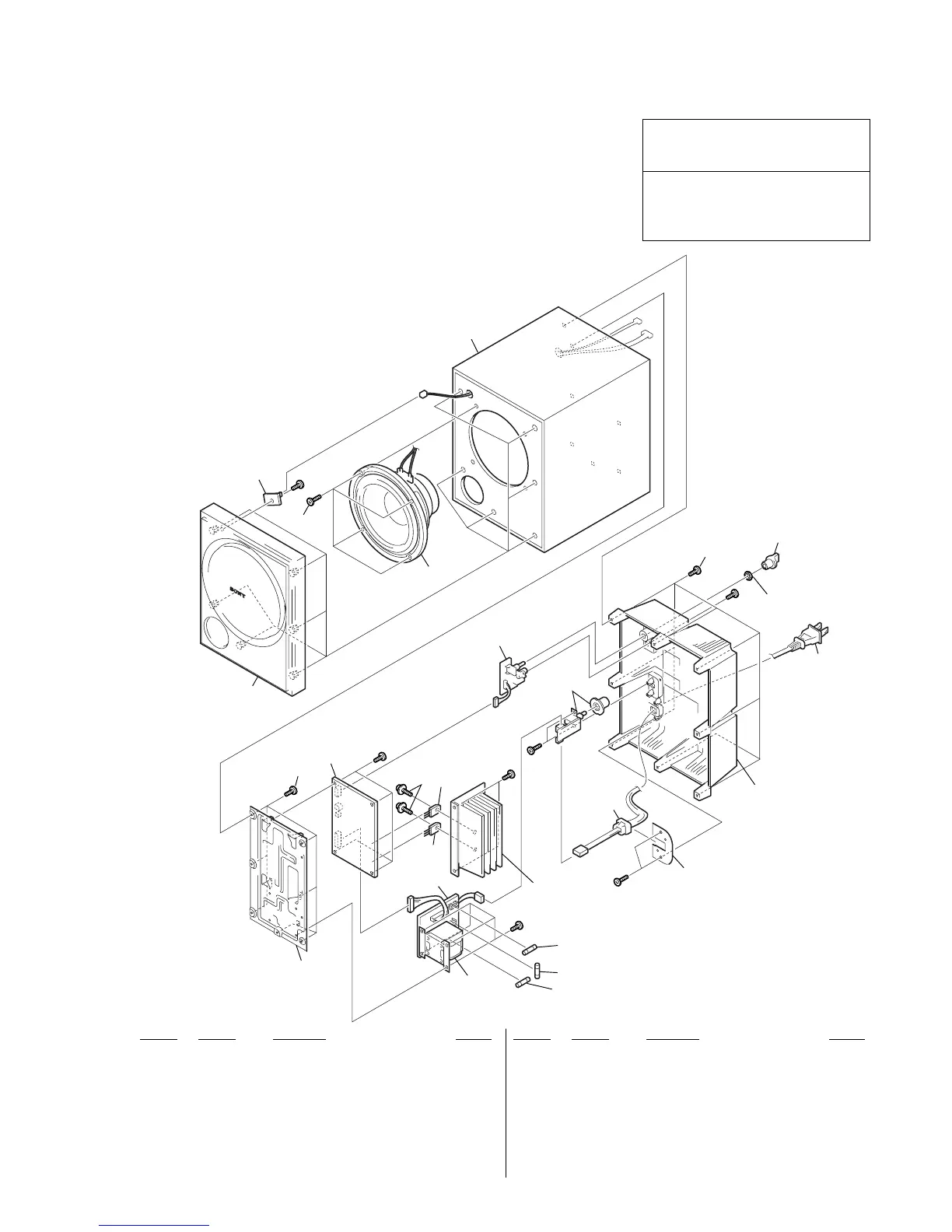

2-1. OVERALL SECTION-1
Ver. 1.3
