Sony SCD-XB770 - Exploded Views Section (cont.); Chassis Section Exploded View; Power Board and Transformer Exploded Views

72
SCD-XB770
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

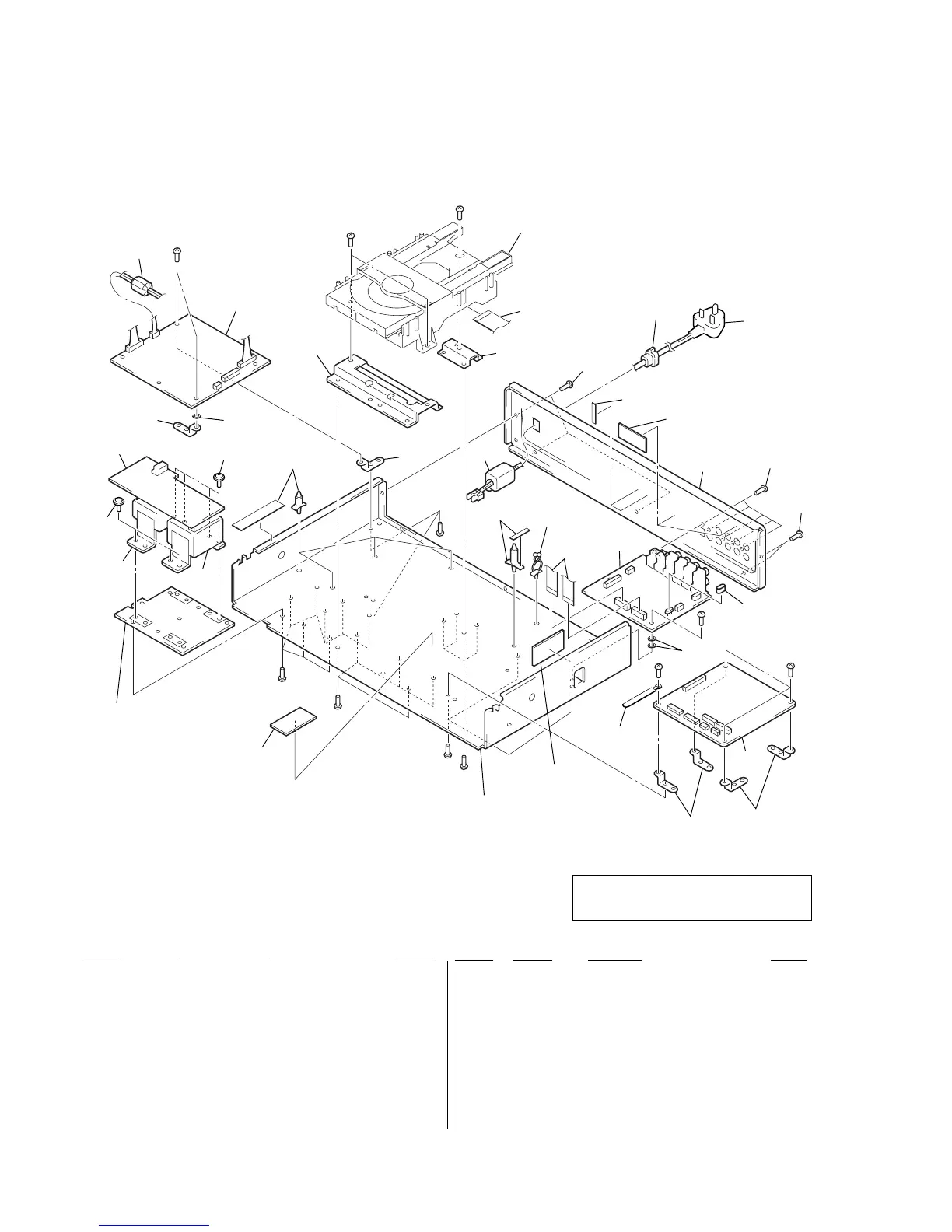

6-3. CHASSIS SECTION
106
not
supplied
#3
#3
#3
#3
#3
#3
#3
#3
#3
#4
#4
105
104
103
102
101
101
T902
T901
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
113
107
not supplied
CDM66B-DVBU6
108
109
110
not supplied
not supplied
111
108
108
115
114
104
116
112
103
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
102 1-681-004-11 TRANS BOARD
103 3-332-563-01 BRACKET (P)
104 4-962-572-11 WASHER, POLYETHYLENE, DIA. 3.2
105 A-4725-671-A POWER BOARD, COMPLETE
106 1-500-249-11 BEAD, FERRITE (CASE)
107 1-757-772-11 WIRE (FLAT TYPE) (30 CORE)
108 3-704-515-21 SCREW (BV/RING)
109 4-966-267-12 BUSHING (FBS001), CORD
0 110 1-558-568-21 CORD, POWER (AEP)
0 110 1-696-586-11 CORD, POWER (UK)
111 4-232-619-01 PANEL, BACK
112 1-543-653-11 CORE ASSY, BEAD (DIVISION TYPE)
113 1-775-172-11 WIRE (FLAT TYPE) (19 CORE)
114 4-211-300-01 RING, RUBBER
115 A-4725-676-A AUDIO BOARD, COMPLETE
116 A-4725-668-A MAIN BOARD, COMPLETE
0 T901 1-435-971-11 TRANSFORMER, POWER
0 T902 1-435-969-11 TRANSFORMER, POWER
