Sony SCD-XB770 - Exploded Views Section (cont.); Mechanism Deck Section Exploded View

73
SCD-XB770
511
M151
#5
not supplied
not supplied
DVBU-6
510
501
503
506
509
507
505
508
504
502

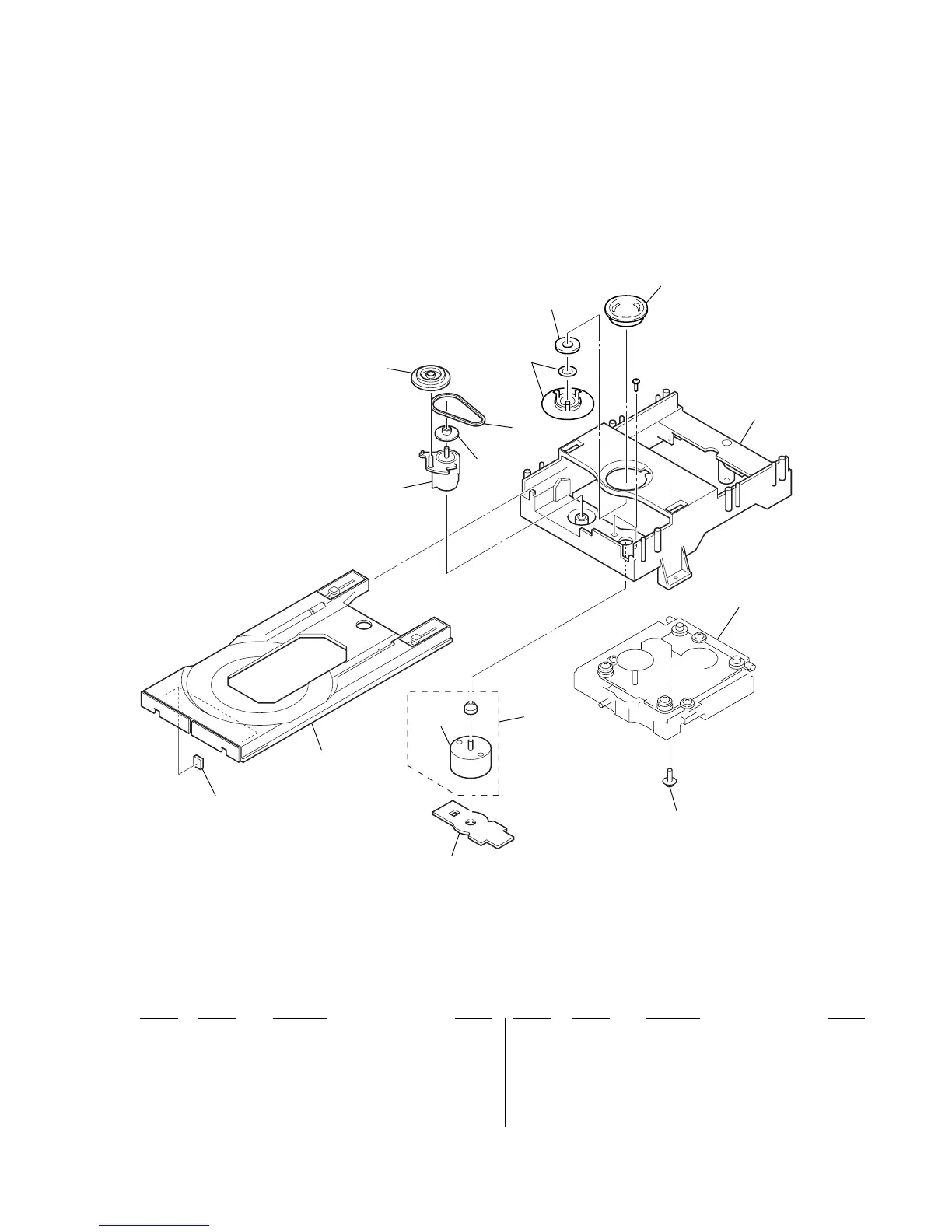

6-4. MECHANISM DECK SECTION
(CDM66B-DVBU6)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-231-530-01 TRAY (66)
502 4-232-682-01 CUSHION (66)
503 4-232-712-01 CAM (66)
504 4-232-710-01 PULLEY (LD)
505 4-232-713-01 BELT (LD)
506 4-232-711-01 GEAR (LD)
507 3-053-844-01 YOKE
508 4-231-529-01 CHASSIS (66)
509 4-227-899-01 SCREW (DIA. 12), FLOATING
510 A-4604-363-A MOTOR (L) ASSY
511 1-645-721-11 LOADING BOARD
M151 1-541-632-12 MOTOR, DC (LOADING)
