SDM-S71 (E) 1-2

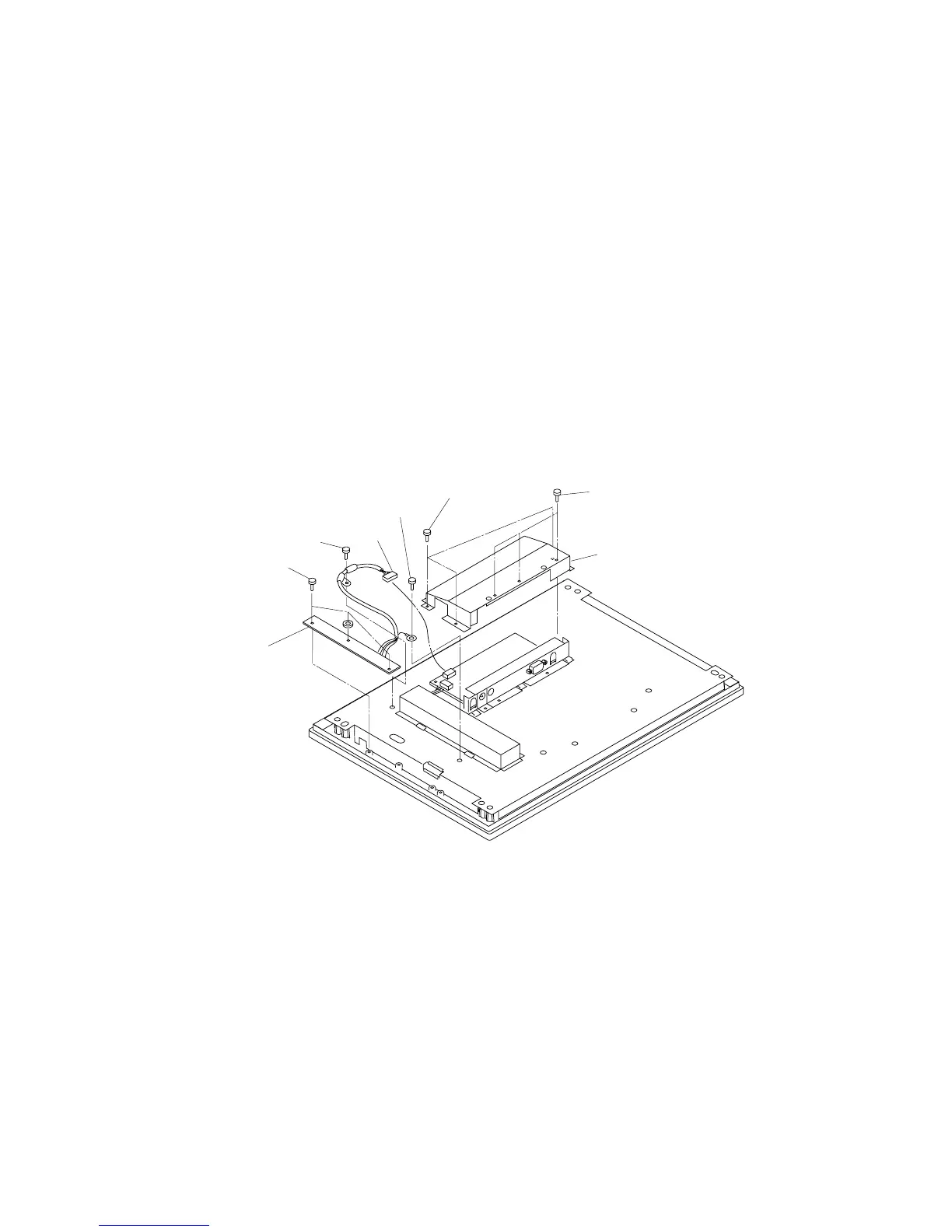

1-2. KEYBOARD MOUNT REMOVAL
5 screw
(+P 3x4)
3 screw
(+PWH 3x4)
6 Three screws
(+P 3x4)
1 Three screws
(+P 3x4)
1 Three screws
(+P 3x4)
4 CN008
7 Keyboard mount
2 I/F cover
