Sony SLV-CA30 - Disassembly; Upper Case Removal; Front Panel Section Removal; Rear Panel Removal

2-1

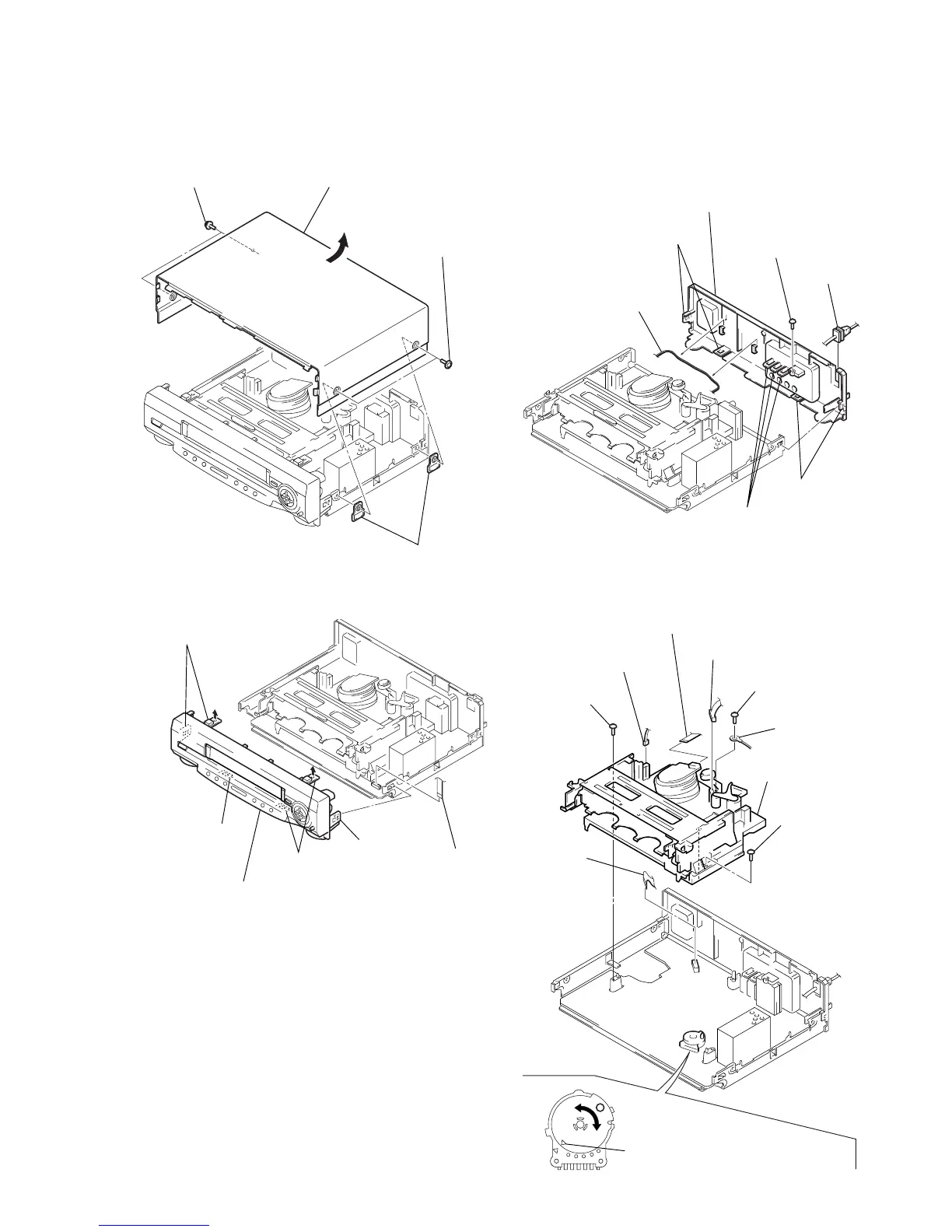

Note: Follow the disassembly procedure in the numerical order given.
2-1. UPPER CASE REMOVAL 2-3. REAR PANEL REMOVAL
2-2. FRONT PANEL SECTION REMOVAL 2-4. MECHANISM DECK REMOVAL
SECTION 2
DISASSEMBLY
1 Two U/C screws
2 Two U/C screws
3 Upper case
4 Two U/C insulators
2 Two claws
3 Claw
5 Claw
1 Flat cable
(CN401)
4 Two claws
6 Front panel section
3 Screw
(BVTP3 × 12)
7 Rear panel
6 Two claws
4 Two claws
5 Three claws
1 Harness
2 Power cord
6 Screw
(BVTP3 × 12)
5 Screw
(BVTP3 × 12)
8 Screw
(BVTP3 × 12)
7 Earth lug
4 Flexible
board
(CN201)
9 Mechanism deck
2 Connector
(ACE head)
3 Connector
(FE head)
1 Flat cable
Note: When mounting the mechanism deck,
first align f mark on the rotary switch.
SLV-CA30/GA35/GA55/GA65/GF85/SA33/SP70/SP100
