Sony SLV-CA30 - Chassis Assembly

7-3 7-4

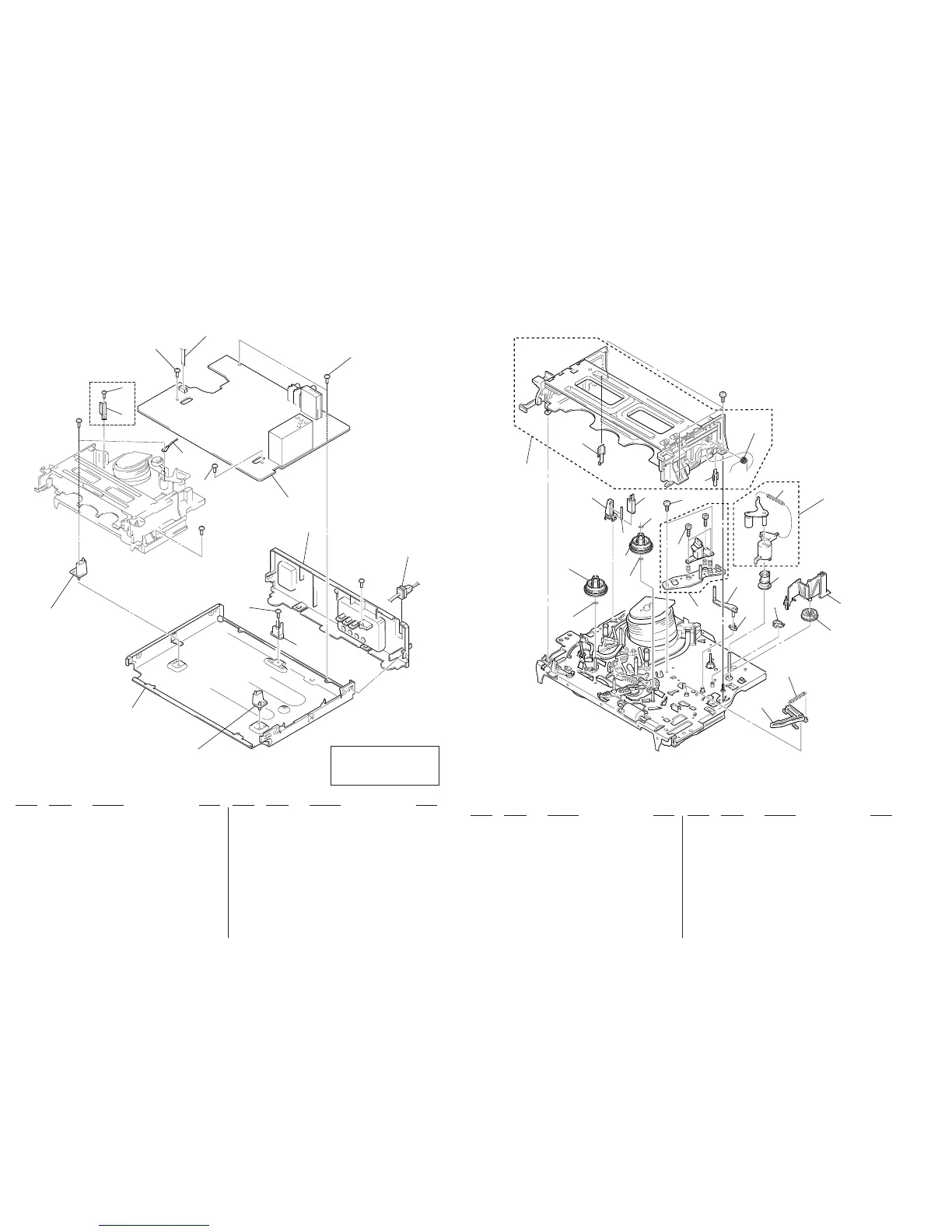

7-1-2. CHASSIS ASSEMBLY
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
* 51 3-959-383-01 BASE (R), MD
52 X-3947-568-1 TC (N17S) ASSY (EXCEPT SP70/SP100)
53 3-979-112-01 SCREW SW (+) BVTP 3X10
(EXCEPT SP70/SP100)
54 3-970-608-21 SUMITITE (B3), +BV
55 1-791-515-11 CABLE, FLAT (FDM-8)
* 56 A-6713-545-A MA-366 BOARD, COMPLETE (GF85PL)
* 56 A-6713-546-A MA-366 BOARD, COMPLETE
(GA55: ME, PS, SG, TH/SP70)
* 56 A-6713-547-A MA-366 BOARD, COMPLETE
(GA35: ME, PS, SG, TH)
* 56 A-6713-548-A MA-366 BOARD, COMPLETE
(GF85: PS, TH/SP100)
* 56 A-6713-551-A MA-366 BOARD, COMPLETE (GA55PL)
* 56 A-6713-552-A MA-366 BOARD, COMPLETE (GA65)
* 56 A-6713-553-A MA-366 BOARD, COMPLETE (GA35PL)
* 56 A-6713-554-A MA-366 BOARD, COMPLETE
(CA30/GA35TW/SA33)
* 56 A-6713-555-A MA-366 BOARD, COMPLETE (GF85TW)
0 57 1-777-850-51 CORD, POWER (EXCEPT CA30/GA35: PL, TW/
GA55PL/GF85: PL, TW/SA33)
0 57 1-777-956-11 CORD, POWER (CA30/GA35: PL, TW/GA55PL/
GF85: PL, TW/SA33)
58 3-052-070-01 PANEL (M) REAR
(GA55/GA65/GF85: PS, TH/SP70/SP100)
58 3-052-070-21 PANEL (M) REAR (GA35: ME, PS, SG, TH)
58 3-052-070-31 PANEL (M) REAR (GF85: PL, TW)
58 3-052-070-41 PANEL (M) REAR (CA30/GA35: PL, TW/SA33)
54
55
54
56
54
53
52
58
57
54
51
51
not
supplied
not
supplied
not
supplied
#1
#1
#1
EXCEPT
SP70/SP100
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
7-1-3. MECHANISM CHASSIS ASSEMBLY (1)
707
708
710
709
712
711
706
704
723
725
705
703
701
702
701
722
721
720
719
713
716
714
715
717
718
#3
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
701 3-977-509-01 WASHER, THRUST
702 3-977-507-01 TABLE, REEL (S)
703 3-977-508-01 TABLE, REEL (T)
704 1-500-144-11 HEAD, FE
705 3-977-495-01 SHAFT TG2
706 3-977-494-01 HOLDER, FEH
707 A-6759-619-B FL ASSY BOARD, COMPLETE
708 3-977-535-01 PLATE, LUMINOUS (END SENSOR)
709 3-977-536-01 PLATE, LUMINOUS (TOP SENSOR)
710 3-970-471-01 SPRING (DECK OPEN), TORSION
711 A-6759-615-A PRESS BLOCK ASSY, PINCH
712 3-958-455-01 SPRING (PINCH), TENSION
713 3-977-447-01 GEAR, ELEVATOR
714 3-977-514-01 OPENER, LID
715 3-977-441-01 GEAR, PINCH PRESSING
716 3-977-445-01 GEAR, TG8 ARM DRIVING
717 3-977-465-01 SPRING, EXTENSION (RVS BRAKE)
718 X-3947-582-1 ARM ASSY, RVS BRAKE
719 3-977-446-01 GEAR, TG8 ARM
720 X-3947-590-1 TG8 ASSY
721 A-6759-620-A HEAD BLOCK ASSY, ACE (TDK)
722 3-974-556-01 + HEXA TT 2.6X9 (TAPER)
723 3-979-508-01 SCREW +HEXA TP SW 3X8
725 3-977-443-01 WASHER, STOPPER
