SECTION 7
REPAIR PARTS LIST
7-1. EXPLODED VIEWS
SLV-CA30/GA35/GA55/GA65/GF85/SA33/SP70/SP100
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
* 6 A-6794-721-A FR-167 BOARD, COMPLETE
(GA55: ME, PS, SG, TH/SP70)
* 6 A-6794-722-A FR-167 BOARD, COMPLETE
(GA35: ME, PS, SG, TH)
* 6 A-6794-723-A FR-167 BOARD, COMPLETE
(GF85: PS, TH/SP100)
* 6 A-6794-727-A FR-167 BOARD, COMPLETE (GA55PL)
* 6 A-6794-728-A FR-167 BOARD, COMPLETE (GA65)
* 6 A-6794-729-A FR-167 BOARD, COMPLETE (GA35PL)
* 6 A-6764-731-A FR-167 BOARD, COMPLETE
(CA30/GA35TW/SA33)
* 6 A-6764-732-A FR-167 BOARD, COMPLETE (GF85TW)
7 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
8 1-791-514-11 CABLE, FLAT (FFM-32)
9 3-058-554-01 SCREW, U/C
(EXCEPT GA35: ME, SG/GA55: ME, SG/SP70)
9 3-058-554-11 SCREW, U/C
(GA35: ME, SG/GA55: ME, SG/SP70)
10 3-053-078-81 CASE, UPPER
(EXCEPT GA35: ME, SG/GA55: ME, SG/SP70)
10 3-053-078-91 CASE, UPPER
(GA35: ME, SG/GA55: ME, SG/SP70)
11 1-418-631-11 COMMANDER, STANDARD (RMT-V286)
(EXCEPT CA30/GA35/GF85TW/SA33)
11 1-418-631-21 COMMANDER, STANDARD (RMT-V286A)
(GA35: ME, PL, PS, SG,TH)
11 1-418-779-11 COMMANDER, STANDARD (RMT-V286B)
(GF85TW)
11 1-418-779-21 COMMANDER, STANDARD (RMT-V286C)
(CA30/GA35TW/SA33)
12 3-709-269-01 COVER, BATTERY
(for RMT-V286/V286A/V286B/V286C)
13 3-058-199-01 INSULATOR, U/C
1 X-3950-003-2 PANEL ASSY, FRONT (GF85: PS, TH)
1 X-3950-004-2 PANEL ASSY, FRONT (GA35: PS, TH)
1 X-3950-005-2 PANEL ASSY, FRONT (GA35: ME, SG)
1 X-3950-006-2 PANEL ASSY, FRONT (GA55: PS, TH)
1 X-3950-007-2 PANEL ASSY, FRONT (GA55: ME, SG)
1 X-3950-008-2 PANEL ASSY, FRONT (GA65)
1 X-3950-009-2 PANEL ASSY, FRONT (SP70)
1 X-3950-010-2 PANEL ASSY, FRONT (SP100)
1 X-3950-011-2 PANEL ASSY, FRONT (GA55PL)
1 X-3950-012-2 PANEL ASSY, FRONT (GA35PL)
1 X-3950-013-2 PANEL ASSY, FRONT (GF85PL)
1 X-3950-014-1 PANEL ASSY, FRONT (GF85TW)
1 X-3950-015-1 PANEL ASSY, FRONT (CA30)
1 X-3950-085-1 PANEL ASSY, FRONT (SA33)
1 X-3950-086-1 PANEL ASSY, FRONT (GA35TW)
2 3-943-995-01 EMBLEM (NO.5), SONY
(GA35: ME, SG/GA55: ME, SG/SP70)
2 3-943-995-31 EMBLEM (NO.5), SONY
(EXCEPT GA35: ME, SG/GA55: ME, SG/SP70)
3 3-953-432-01 SPRING (GE), FL
4 3-059-648-01 DOOR, CASSETTE (GF85)
4 3-059-648-11 DOOR, CASSETTE
(CA30/GA35: PL, PS, SG, TH, TW/SA33)
4 3-059-648-21 DOOR, CASSETTE (GA35: ME, SG)
4 3-059-648-31 DOOR, CASSETTE (GA55: PL, PS, TH/GA65)
4 3-059-648-41 DOOR, CASSETTE (GA55: ME, SG)
4 3-059-648-51 DOOR, CASSETTE (SP70)
4 3-059-648-61 DOOR, CASSETTE (SP100)
5 3-051-662-01 KNOB, SLIDE
(EXCEPT GA35: ME, SG/GA55: ME, SG/SP70)
5 3-051-662-41 KNOB, SLIDE
(GA35: ME, SG/GA55: ME, SG/SP70)
* 6 A-6794-720-A FR-167 BOARD, COMPLETE (GF85PL)

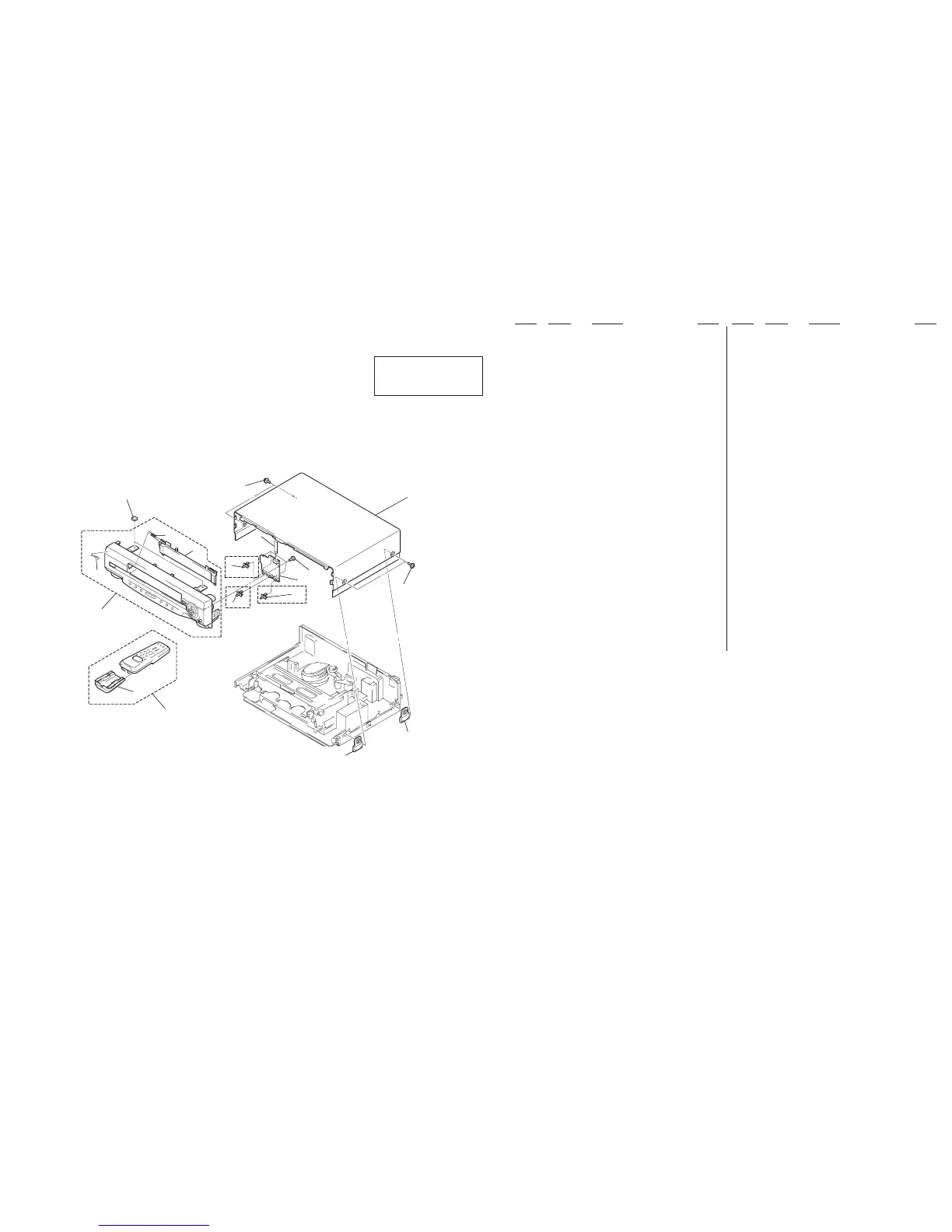

7-1-1. FRONT PANEL AND CABINET ASSEMBLIES
9
8
10
9
7
6
5
5
5
2
1
12
11
not supplied
GA55/GA65/
GF85PL/SP70
EXCEPT
GF85PL
EXCEPT GA35PL/
GA55PL/GF85PL
13
13
4
3
7-1
To Next Page
