4-12

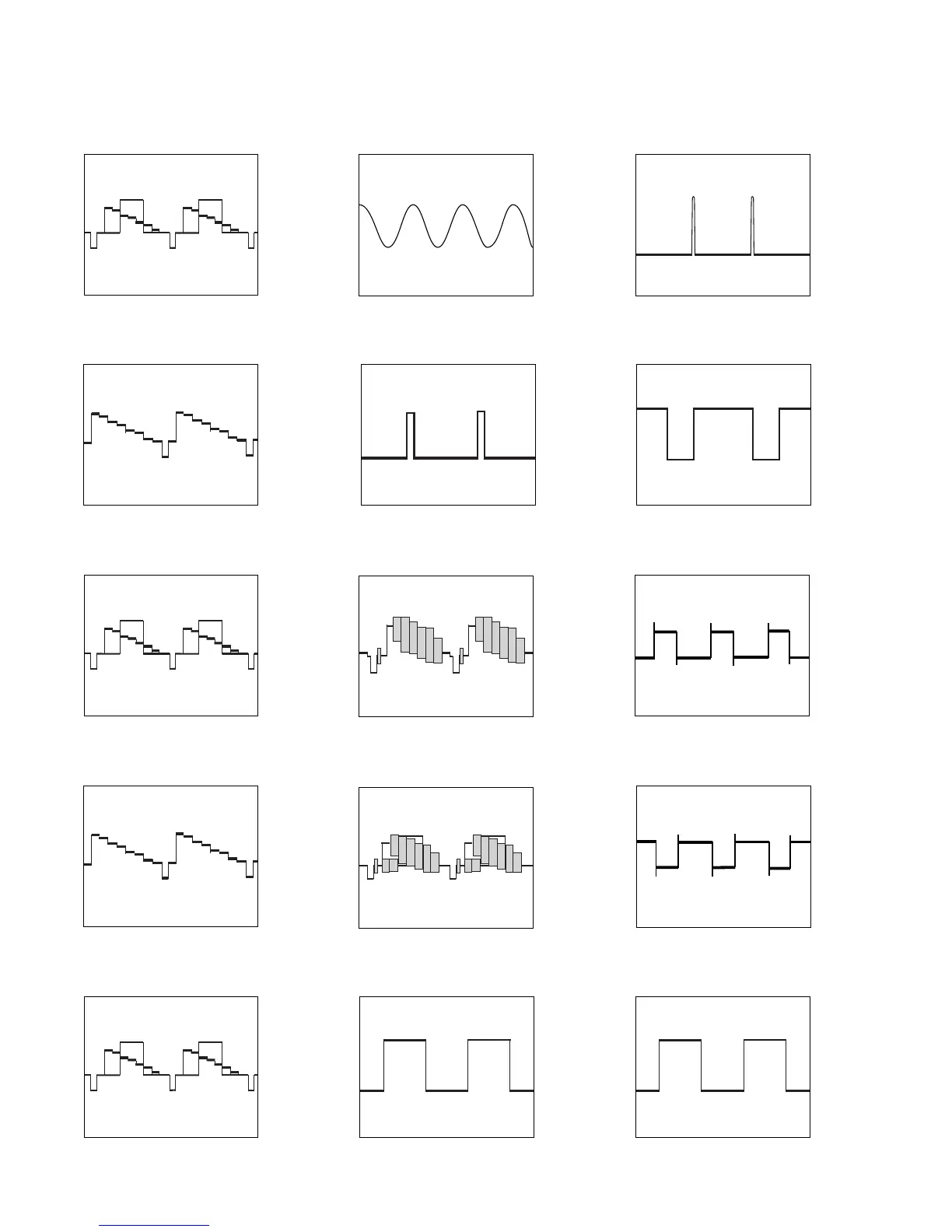

• Waveforms
– MA-366 (1/4) –
qh IC201 wd REC/PB
REC: 480 mVp-p (H) (NTSC)
PB : 550 mVp-p (H) (NTSC)
qj IC201 wa REC/PB
REC: 320 mVp-p (H) (PAL)
PB : 430 mVp-p (H) (PAL)
qk IC201 wa REC/PB
REC: 400 mVp-p (H) (NTSC)
PB : 450 mVp-p (H) (NTSC)
ql IC201 qk, ql REC/PB
REC: 400 mVp-p (H) (PAL)
PB : 580 mVp-p (H) (PAL)
w; IC201 qk, ql REC/PB
REC: 510 mVp-p (H) (NTSC)
PB : 560 mVp-p (H) (NTSC)
• Waveforms
– MA-366 (2/4) –
1 IC101 us REC/PB
3.2 Vp-p (10 MHz)
2 IC101 tf REC/PB
4.6 Vp-p (H)
3 IC101 rd, rg REC/PB
2.2 Vp-p (H) (PAL)
4 IC101 rd, rg REC/PB
2.2 Vp-p (H) (NTSC)
5 IC101 r; REC/PB
4.8 Vp-p (760 Hz) (PAL)
4.8 Vp-p (1 kHz) (NTSC)
6 IC101 el REC/PB
4.3 Vp-p (25 Hz) (PAL)
4.3 Vp-p (30 Hz) (NTSC)
7 IC101 ek REC/PB
4.2 Vp-p (600 Hz) (PAL)
4.2 Vp-p (720 Hz) (NTSC)
8 IC101 es REC
5.2 Vp-p (25 Hz) (PAL)
5.2 Vp-p (30 Hz) (NTSC)
9 IC101 ea REC
5.2 Vp-p (25 Hz) (PAL)
5.2 Vp-p (30 Hz) (NTSC)
q; IC101 wd, wf REC/PB
5 Vp-p (25 Hz) (PAL)
5 Vp-p (30 Hz) (NTSC)
