Sony SLV-E177EG - Disassembly; Upper Case Removal; Front Panel Removal; Rear Panel Removal

2-1
Note: Follow the disassembly procedure in the numerical order given.

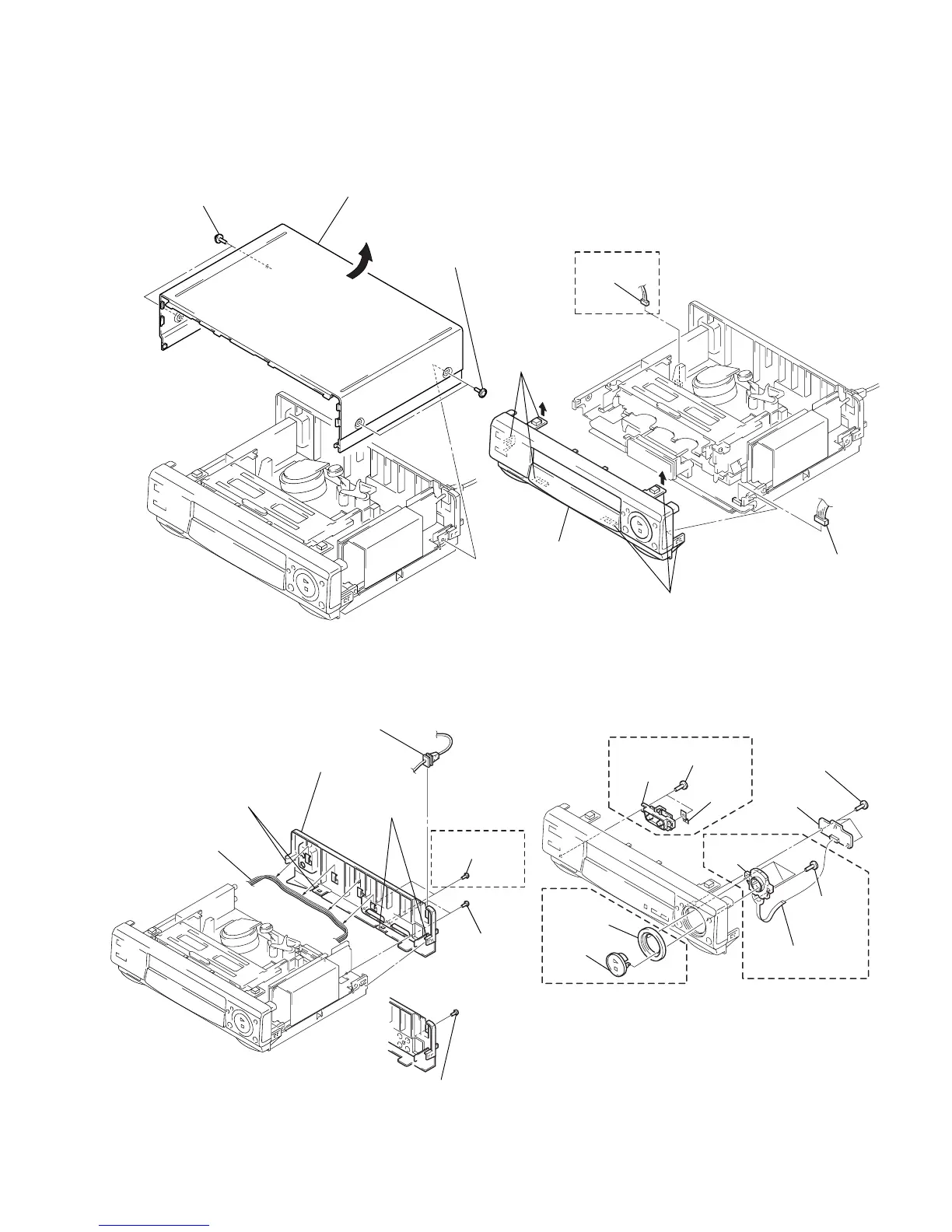

2-1. UPPER CASE REMOVAL 2-3. FRONT PANEL SECTION REMOVAL
2-2. REAR PANEL REMOVAL 2-4. DS-78, FI-14 BOARD REMOVAL
SECTION 2
DISASSEMBLY
SLV-E130/E177/E180/E230/E285/E295/E380/E430/E477/E480/E530
1 Two screws
(Case3 TP2)
3 Upper case
2 Two screws
(Case3 TP2)
1 Harness
5 Two claws
6 Rear panel
2 Power cord
4 Two claws
3 Two screws
(BVTP3 × 12)
3 Two screws
(BVTP3 × 12)
3 Screw
(BVTP3 × 12)
E230: CP/E285/
E295/E430/E530
EXCEPT E180: EE/
E380: EE/E480: EE
3 Three claws
5 Front panel
section
2 Connector
(CN163)
1 Connector
(CN161)
4 Three claws
E295/E380: EE/
E530
0 FI-14
board
8 Two screws
(B2.6 × 8)
9 Earth
plate
1 Three screws
(B2.6 × 8)
2 DS-78
board
7 Rotary
switch
6 Three
screws
(B2.6 × 8)
3 Flexible board
(CN450)
4 Center
bottom
5 Change
speed ring
E295/E380: EE/E530
E380/E530
E380/E530
