Sony SLV-E177EG - ETXNY 165 E1 D Block Removal; Mechanism Deck Removal; Board Removal

2-2

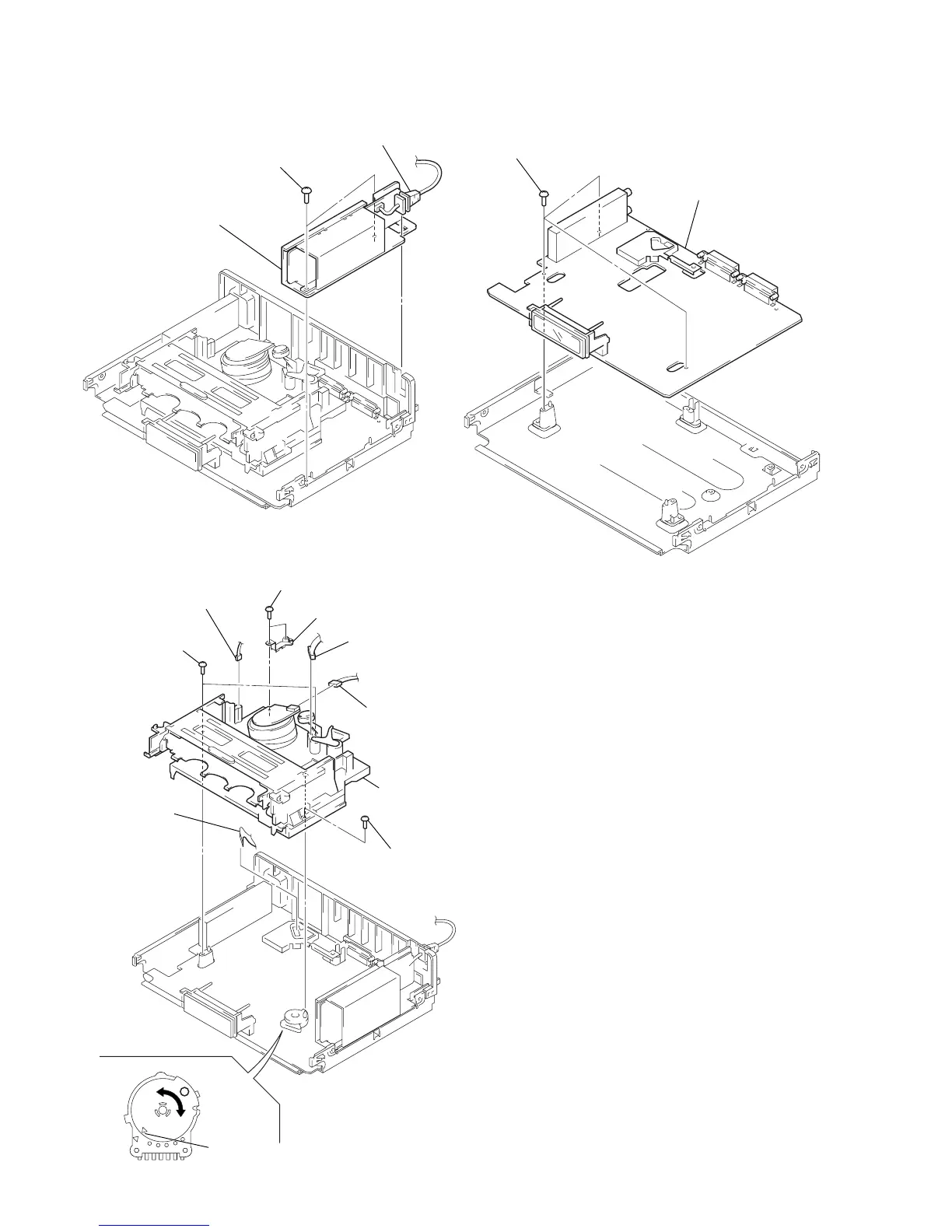

2-5. ETXNY 165E1D BLOCK REMOVAL 2-7. MA-314 BOARD REMOVAL
2-6. MECHANISM DECK REMOVAL
1 Power cord
2 Two screws
(B3)
3 ETXNY 165E1D
block
3
Note: When mounting the mechanism deck,
first align ¢ mark on the rotary switch.
7 Two screws
(BVTP3 × 12)
1 Connector
(FE head)
5 Two screws
(B3)
6 Earth plate
2 Connector
(ACE head)
3 Connector
(CN1)
9 Mechanism
deck
8 Screw
(BVTP3 × 12)
4 Flexible board
(CN260)
2 MA-314 board
1 Three screws
(B3)
