1. GENERAL
SLV-ED333/ED939/EZ131/
EZ735/EZ737/GA58
This section is extracted from SLV-ED333ME/ED333SG/
ED939ME/ED939SG instruction manual. (3-082-203-11)
4
Getting Started
SLV-ED939ME/SG 3-082-203-11 (1) GB ME/SG
Getting Started

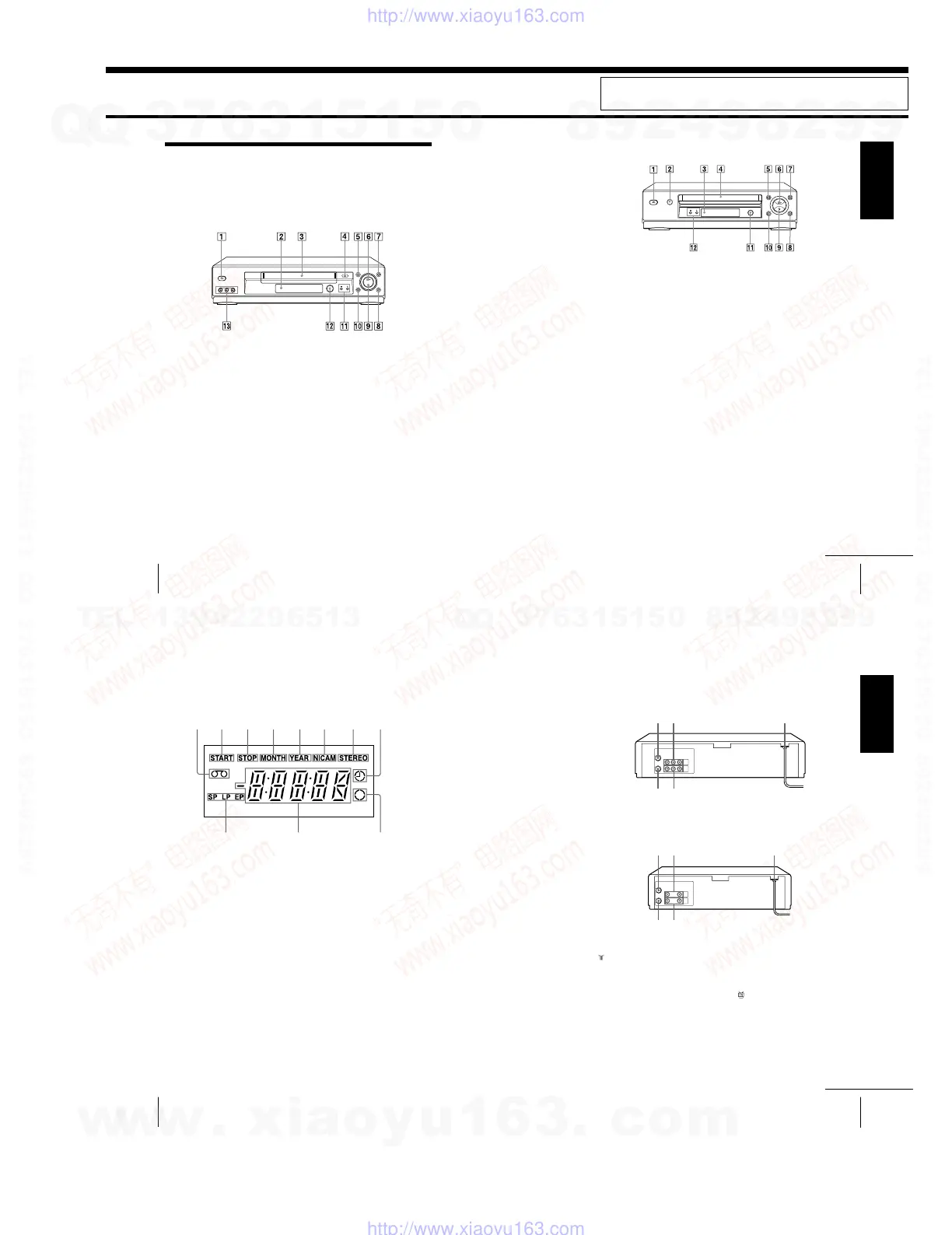

Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
For SLV-ED939ME/SG
1 ?/1 ON/STANDBY switch
2 Remote sensor (11)
3 Tape compartment
4 A EJECT button (30)
5 m REW (rewind) button (30) (45)
6 H PLAY button* (30) (45)
7 M FF (fast-forward) button (30)
(45)
8 z REC (record) button (33) (46)
(59)
9 x STOP button* (17) (30) (59)
q; X PAUSE button (30) (41) (59)
qa PROGRAM/TRACKING +/—
buttons* (37) (53)
qs EASY TIMER (36)
qd LINE-2 IN VIDEO/AUDIO L/R
(left/right) jacks (57)
*The H PLAY, x STOP and PROGRAM/
TRACKING + buttons have a tactile dot.
5
Getting Started
Getting Started
SLV-ED939ME/SG 3-082-203-11 (1) GB ME/SG
For SLV-ED333ME/SG
1 ?/1 ON/STANDBY switch
2 A EJECT button (30)
3 Remote sensor (11)
4 Tape compartment
5 m REW (rewind) button (30) (45)
6 H PLAY button (30) (45)
7 M FF (fast-forward) button (30)
(45)
8 z REC (record) button (33) (46)
(57)
9 x STOP button (17) (30) (59)
q; X PAUSE button (30) (41) (59)
qa EASY TIMER (36)
qs PROGRAM/TRACKING +/—
buttons* (37) (53)
*The PROGRAM/TRACKING + button
has a tactile dot.
continued
6
Getting Started
SLV-ED939ME/SG 3-082-203-11 (1) GB ME/SG
Display window
1 Tape indicator
2 START indicator (37)
3 STOP indicator (37)
4 MONTH indicator (40)
5 YEAR indicator (40)
6 NICAM indicator* (50)
7 STEREO indicator* (49)
8 Timer indicator (39) (43)
9 Recording indicator (33)
0 Time counter/clock/line/programme
position indicator (31) (32) (58)
qa Ta pe speed indicators (32) (38)
*SLV-ED939ME/SG only
31452678
90qa
Index to parts and controls (continued)
7
Getting Started
Getting Started
SLV-ED939ME/SG 3-082-203-11 (1) GB ME/SG
Rear panel
For SLV-ED939ME/SG
For SLV-ED333ME/SG
1
(in from antenna) connector (13)
2 LINE IN 1 AUDIO R/L/VIDEO
(audio right/audio left/video) jacks*
1
(58)
LINE IN 1 AUDIO/VIDEO jacks*
2
(57)
3 Mains lead (13)
4 LINE OUT AUDIO R/L/VIDEO
(audio right/audio left/video) jacks*
1
LINE OUT AUDIO/VIDEO jacks*
2
(14)
5
(out to tv) connector (13)
*
1
SLV-ED939ME/SG only
*
2
SLV-ED333ME/SG only
continued
