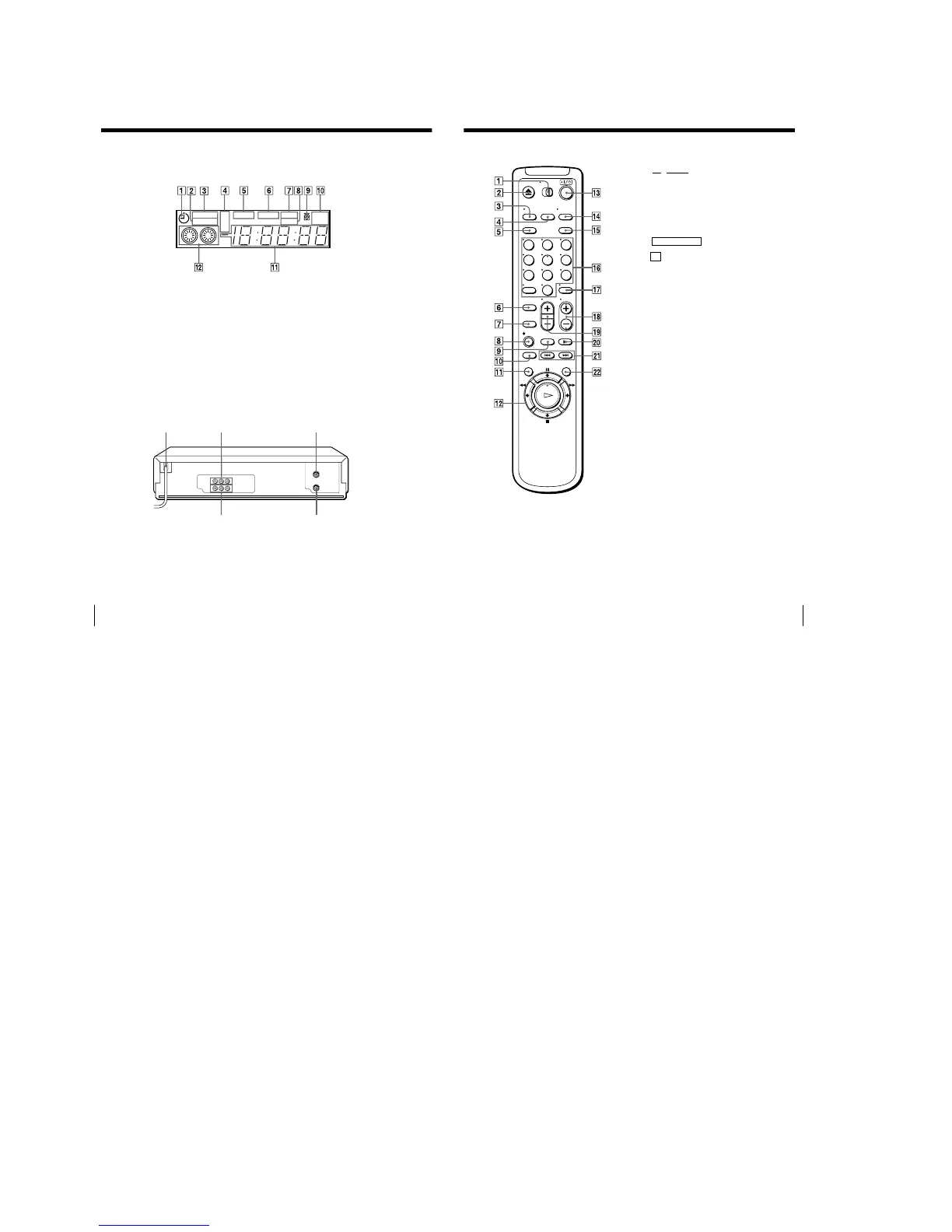

Sony SLV-LF1 - INDEX TO PARTS AND CONTROLS; Remote Commander and Display Indicators; Rear Panel Connections

Additional Information
70
Display window
1 Timer indicator (43)
2 NICAM indicator (56)
3 STEREO indicator (56)
4 Tape speed indicator (40)
5 CLOCK indicator (44)
6 START indicator (42)
7 STOP indicator (42)
Rear panel
1 Mains lead (8)
2 LINE-1 IN AUDIO R/L/VIDEO
jacks (62)
3 AERIAL IN connector (8)
4 AERIAL OUT connector (8)
5 LINE OUT AUDIO R/L/VIDEO
jacks (9)
Index to parts and controls (continued)
8 APC (Adaptive Picture Control)
indicator (60)
9 Tracking indicator (59)
0 Colour system indicator (37)
qa Time counter/clock/line/
programme/TV system indicator
(10, 38, 39, 44, 63)
qs Tape/recording indicator (40)
STEREO
NICAM
SP
EP
LP
STOP
APC
STARTCLOCK NTSC
PAL
213
45
71Additional Information
Remote commander
1
TV/VIDEO
remote control switch (5)
2 Z EJECT button (37)
3 TV/VIDEO button (for TV) (5)
4 INPUT SELECT button (41, 51)
5 CLEAR button (38, 48, 55)
6
EASY TIMER
button (43)
7 R
2
(Reality Regenerator) button (63)
8 z REC button (40, 53)
9 ×2 button (52)
0 REC SPEED button (40)
qa MENU button (13, 61)
qs Tape/menu operation buttons
X PAUSE/M button (37)
x STOP/m button (37)
m REW (rewind)/< button (37, 52)
M FF (fast-forward)/, button (37, 52)
H PLAY/OK button (37)
qd ?/1 (on/standby) switch (48)
qf AUDIO MONITOR button (56)
qg G-CODE button (47)
qh Programme number /? (ten’s digit)
buttons (41, 45, 48)
qj DISPLAY button (40)
qk PROG (programme) +/– buttons (39)
ql VOL (volume) +/– buttons (for TV) (6)
w; y SLOW button (52)
wa ./> INDEX SEARCH buttons (58)
ws COLOR SYSTEM button (37)
123
456
789
0
1-16E
