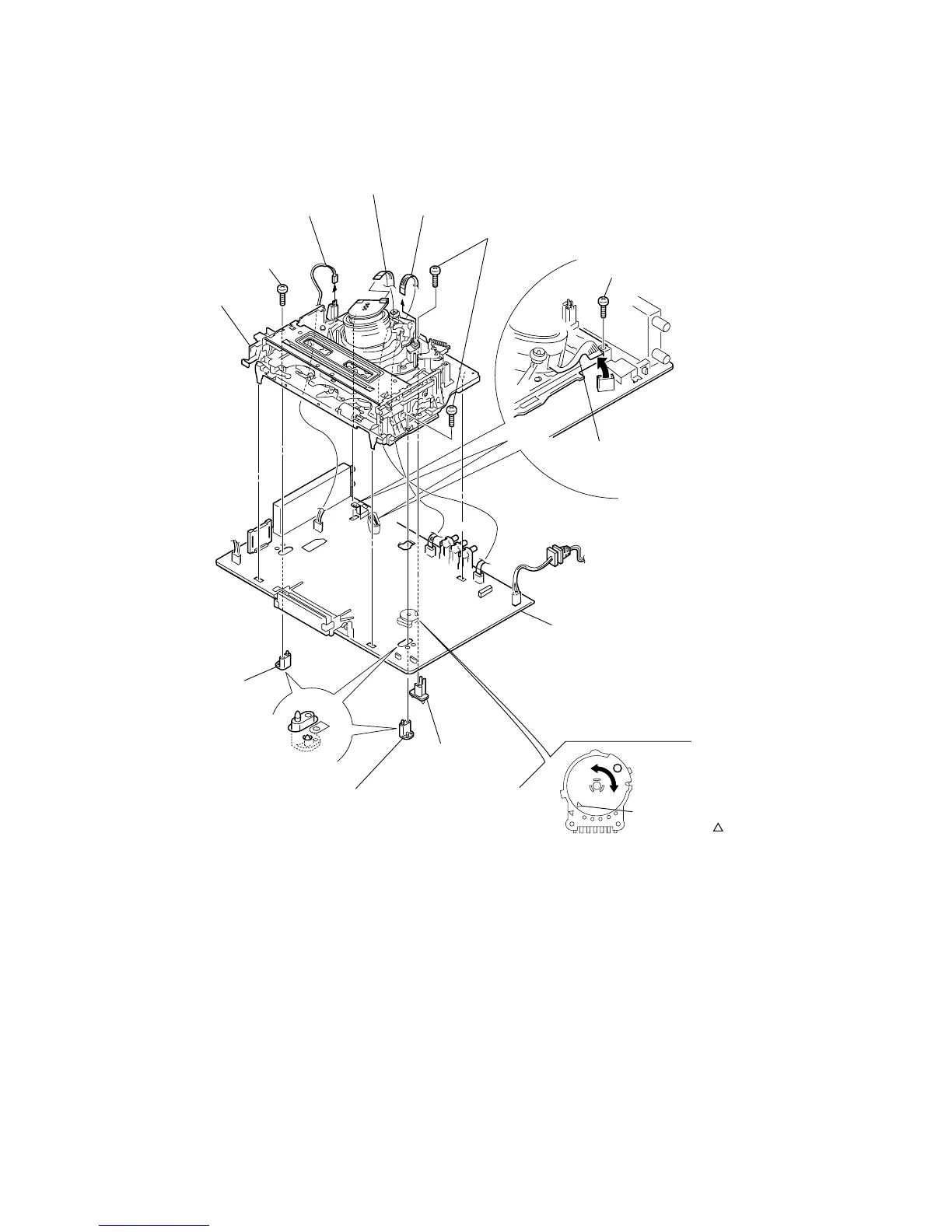

Sony SLV-LF1 - Mechanism Deck

qa MA-402 board
7 MD base (M)
8 MD base (R)
0 MD base (R)
6 Two screws
(BVTP 3 × 12)
9 Screw
(BVTP 3 × 12)
2 Screw
(Sumitite (B3), +BV)
qs Mechanism deck
1 Flexible cable
5 Harness FE-141
3 Flat Cable FAC-009
4 Flat cable FMD-022
CN202
CN331
Note: When mounting the mechanism deck,
first align mark on the rotary switch.
2-5. MECHANISM DECK
2-3
