Sony SLV-LF1 - Chassis Section Parts

SLV-LF1
8-2

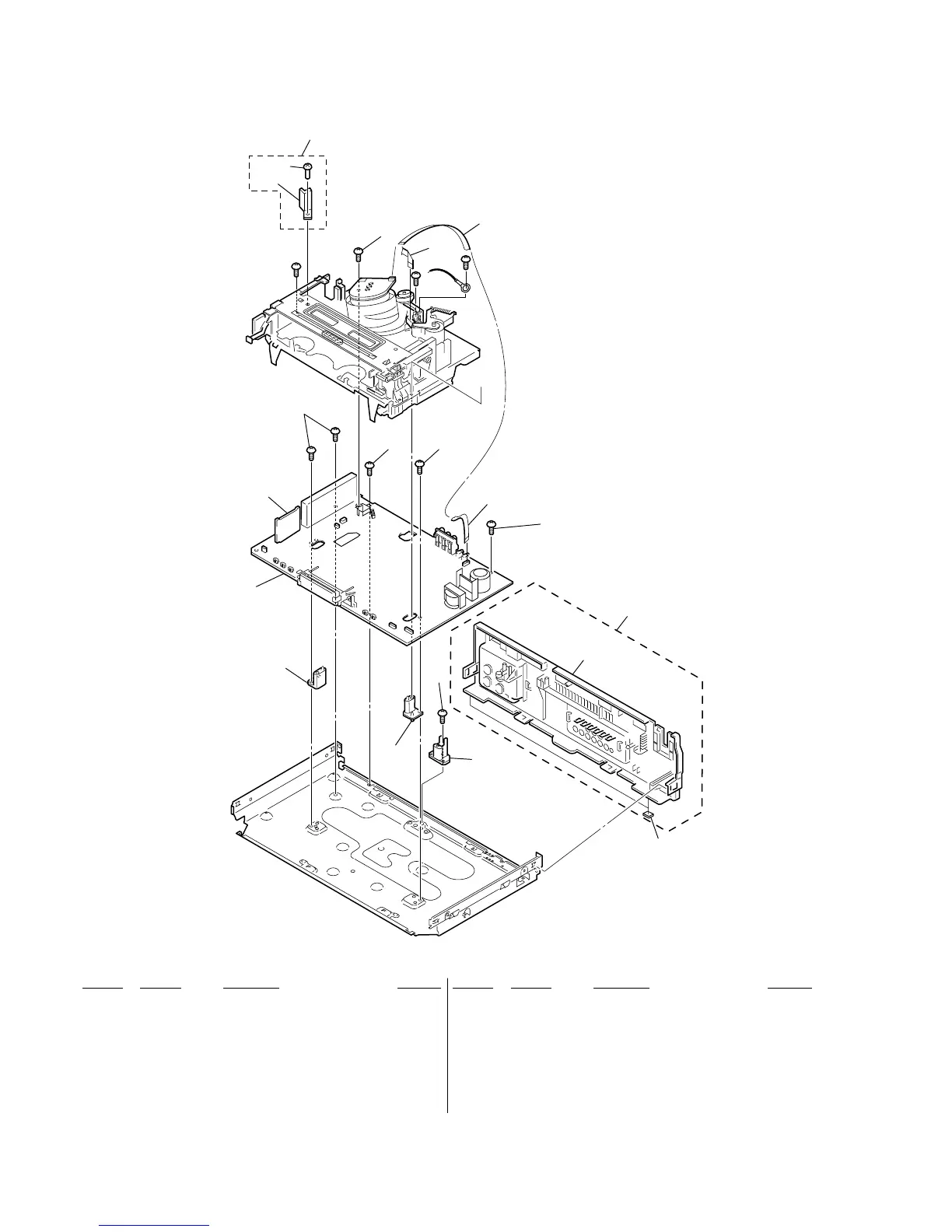

8-1-2. CHASSIS SECTION
55
60
61
56
51
58
57
51
#1
#1
#1
52
53
53
53
53
53
54
53
59
not
supplied
not
supplied
not supplied
Ref. No. Part No. Description Remarks
51 3-959-383-01 BASE (R), MD
* 52 A-6713-936-A MA-402 COMPLETE PWB (LF1MI)
* 52 A-6713-934-A MA-402 COMPLETE PWB (LF1AS)
53 3-970-605-21 SUMITITE (B3), +BV
54 1-757-551-11 CABLE, FLAT (FMD-022)
* 55 A-6713-875-A NK-11 BOARD, COMPLETE PWB (LF1MI)
* 55 A-6713-872-A GK-12 BOARD, COMPLETE PWB (LF1AS)
56 1-757-551-11 CABLE, FLAT (FAC-009)
57 X-3951-402-1 PANEL ASSY, REAR
58 3-064-638-01 PANEL, REAR
59 X-3950-969-1 TC(N17S) ASSY (SL)
60 3-063-782-01 TC(N17S) HOLDER (SL)
61 3-342-512-21 SCREW (B1.7 X 3.5), TAPPING
#1 7-685-648-79 SCREW + BVTP 3 X 12 TYPE 2 IT-3
Ref. No. Part No. Description Remarks
