SLV - LF1

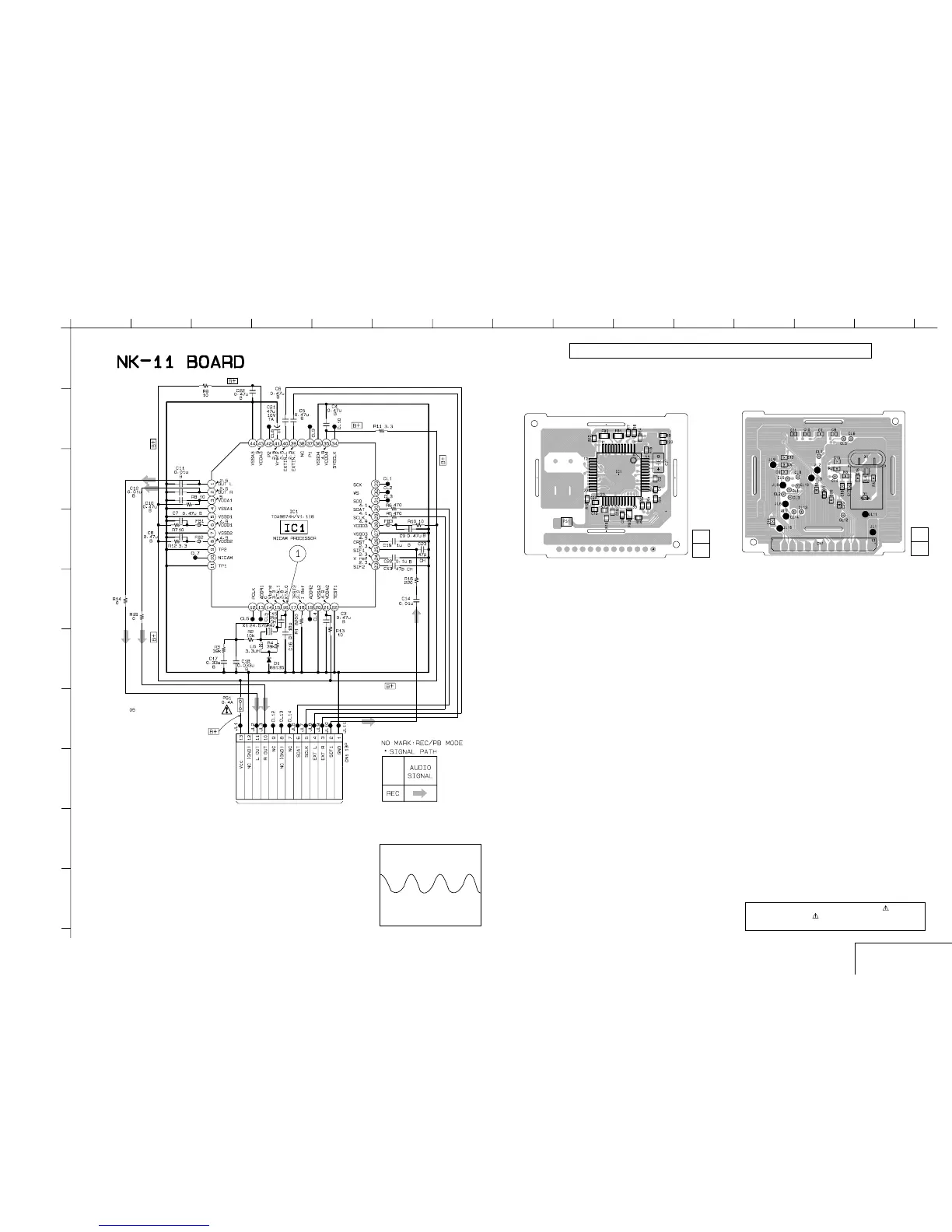

NK-11 (NICAM) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM
– Ref. No.: NK-11 board; 3,000 series –
– SLV-LF1MI –
NICAM
NK-11
4-31 4-32
There are few cases that the part isn't mounted in this model is printed on this diagram.
Note:The components identified by mark or dotted
line with mark are critical for safety.
Replace only with part number specified.
740 mVp-p (24.576 MHz)
• Waveform
1 IC1 qh REC/PB
MA-402 BOARD (5/8)
CN701
(SEE PAGE 4-21)
NK-11 BOARD(SIDE A)
1-669-815-
12
(12)
05
NK-11 BOARD(SIDE B)
1-669-815-
12
(12)
05
