SLV-SE35/SE50/SE60/SE70/SE80/SX60/SX70/SX80

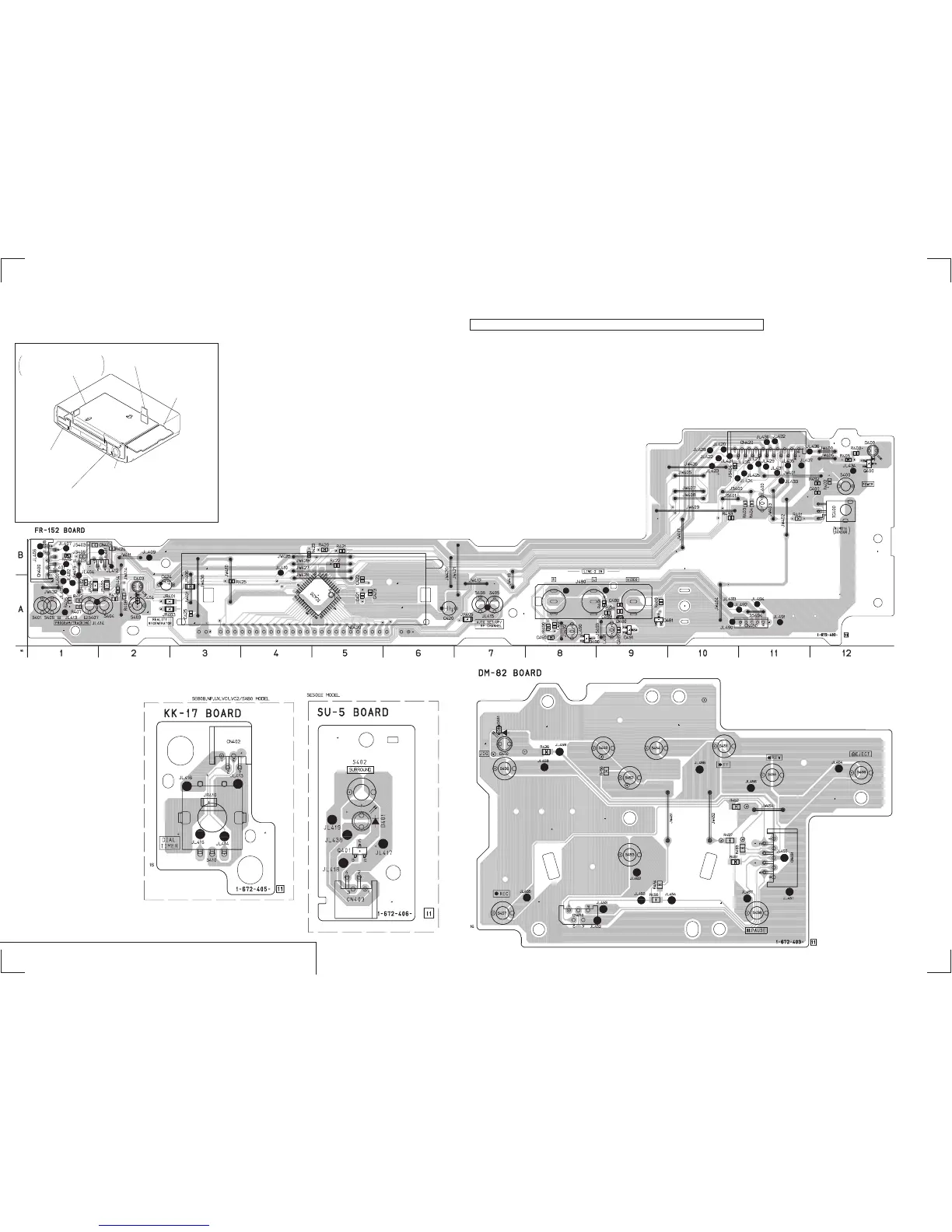

FR-152 (MODE CONTROL)/ KK-17 (TIMER)/ DM-82 (OPERATION SWITCHES)/SU-5 (SURROUND) PRINTED WIRING BOARDS
— Ref. No. FR-152 Board:2,000 Series/KK-17 Board:3,000 Series/DM-82 Board:4,000 Series/SU-5 Board: 5,000 Series —
There are few cases that the part printed on this diagram isn’t mounted in this model.
4-22
MODE CONTROL
FR-152
/
TIMER
KK-17
/
OPERATION SWITCHES
DM-82
MA-339
REC/PB AMP, VIDEO, AUDIO,
SERVO/SYSTEM CONTROL,
TUNER
FR-152
(MODE CONTROL)
DM-82
(OPERATION SWITCHES)
POWER BLOCK
SRV878EK
SE-77 (SLV-SE70B/SE80B/SX70B
)
(SECAM)
KK-17 (SLV-SE80B/SE80NP/SE80UX/SE80VC1/SE80VC2/SX80)
(TIMER)
SU-5 (SLV-SE50EE)
(SURROUND)
FR-152 BOARD
D400 B-12
D403 A-2
D404 A-2
D480 A-9
D481 A-9
D490 A-8
D491 A-9
IC400 B-12
IC420 A-5
Q400 B-12
/
SURROUND
SU-5
