Sony SRF-18 - Exploded Views of Components; Front Cabinet Exploded View

11
SRF-18
SECTION 4
EXPLODED VIEWS
1 3-846-310-21 SPACER
2 4-412-614-01 ADHESIVE SHEET A
3 3-252-825-01 SCREW (1.7)
4 4-294-737-01 HOLDER (HEADPHONE) (for BLACK)
4 4-294-737-11 HOLDER (HEADPHONE) (for WHITE)
4 4-294-737-21 HOLDER (HEADPHONE) (for PINK)
5 4-294-741-01 TERMINAL (+) BATTERY
6 4-294-740-31 PLATE TRANSPARENT (for BLACK)
6 4-294-740-41 PLATE TRANSPARENT (for WHITE)
6 4-294-740-51 PLATE TRANSPARENT (for PINK)
7 4-412-613-01 SPACER A
8 4-294-733-01 KNOB (POWER) (for BLACK)
8 4-294-733-11 KNOB (POWER) (for WHITE)
8 4-294-733-21 KNOB (POWER) (for PINK)
9 3-252-825-01 SCREW (1.7) (for WHITE, PINK)
9 3-252-825-11 SCREW (1.7) (for BLACK)
10 4-294-732-01 KNOB (BAND) (for BLACK)
10 4-294-732-11 KNOB (BAND) (for WHITE)
10 4-294-732-21 KNOB (BAND) (for PINK)
SP1 X-2584-348-1 CABINET (FRONT) SUB ASSY
(Including SPEAKER (3.6 cm)) (for BLACK)
SP1 X-2584-349-1 CABINET (FRONT) SUB ASSY
(Including SPEAKER (3.6 cm)) (for WHITE)
SP1 X-2584-350-1 CABINET (FRONT) SUB ASSY
(Including SPEAKER (3.6 cm)) (for PINK)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

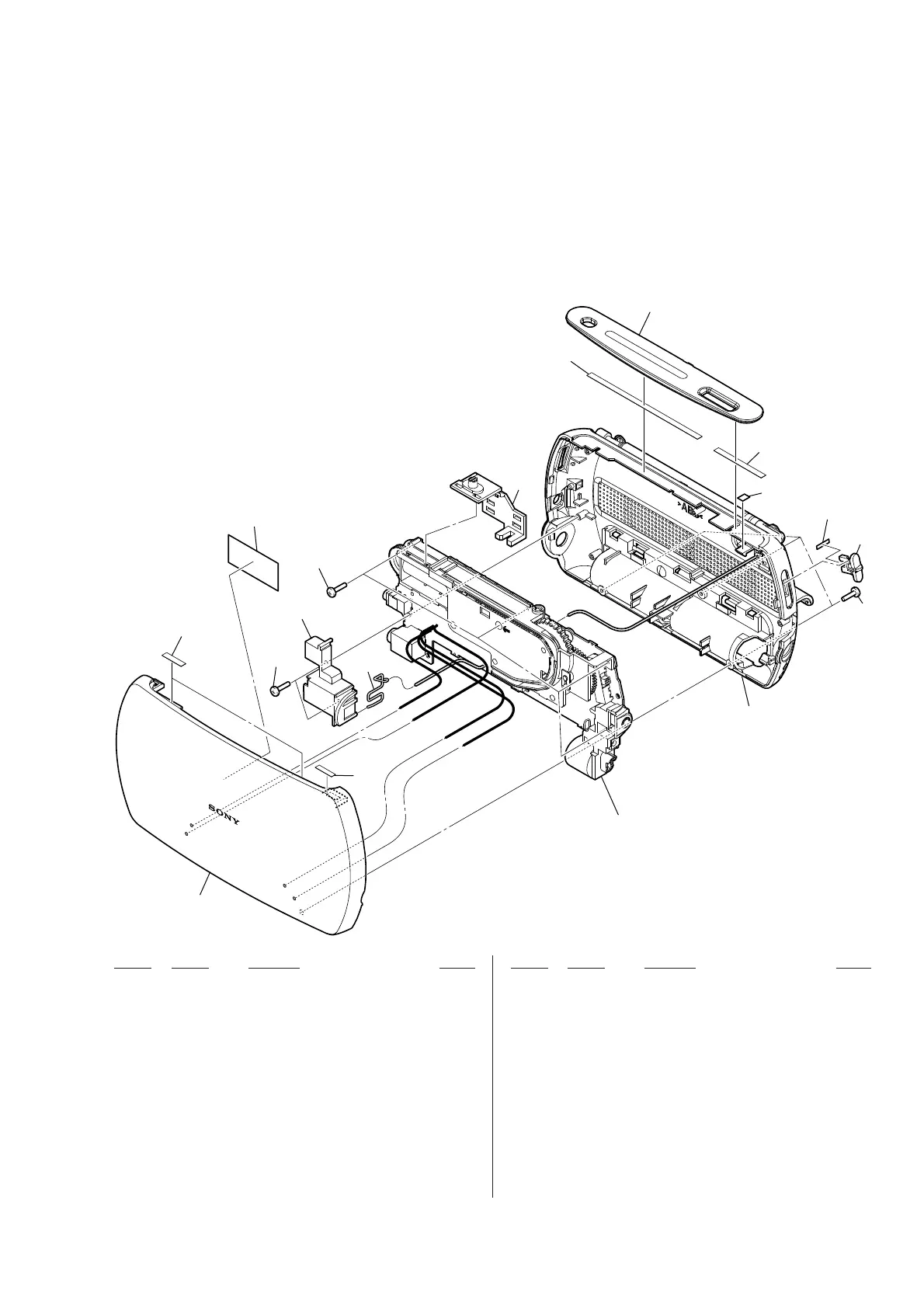

4-1. FRONT CABINET SECTION
chassis section
4
3
2
3
8
1
9
7
rear cabinet section
5
6
not supplied
not supplied
not supplied
not
supplied
10
SP1
