Sony SRF-18 - Rear Cabinet Exploded View

13
SRF-18

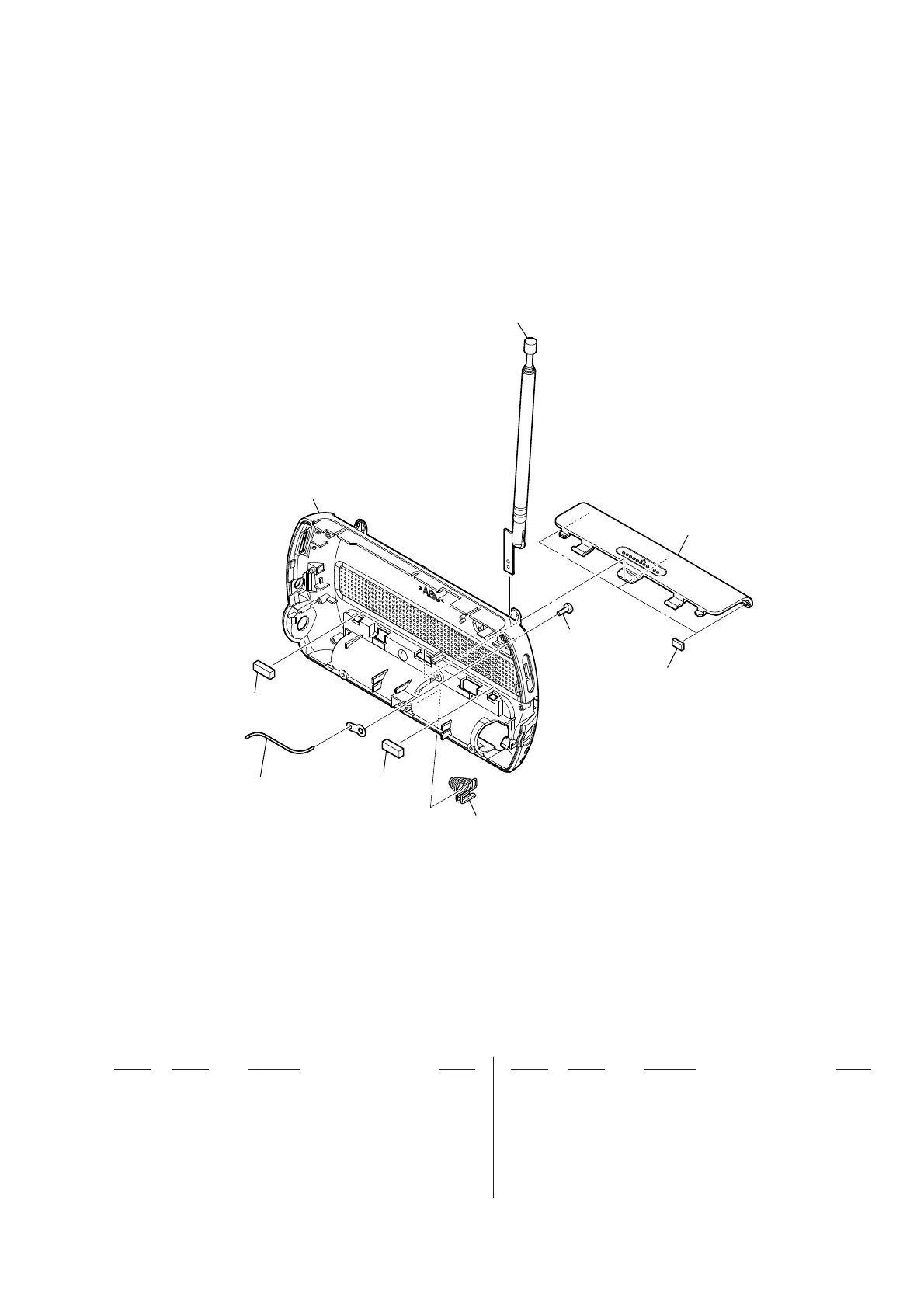

4-3. REAR CABINET SECTION
101 4-142-818-01 BATTERY TERMINAL +– (A)
102 3-014-055-01 FOOT, RUBBER
103 4-294-727-32 CABINET REAR (for BLACK)
103 4-294-727-42 CABINET REAR (for WHITE)
103 4-294-727-52 CABINET REAR (for PINK)
104 4-294-728-01 LID, BATTERY CASE (for BLACK)
104 4-294-728-11 LID, BATTERY CASE (for WHITE)
104 4-294-728-21 LID, BATTERY CASE (for PINK)
105 2-596-904-01 CUSHION (LEVER)
106 3-245-709-11 SCREW (for BLACK)
106 3-245-709-31 SCREW (for WHITE, PINK)
ANT1 1-501-247-61 ANTENNA, TELESCOPIC (FM)
#1 7-623-507-01 LUG, 2.6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
102
106
101
103
102
104
105
ANT1
#1
not
supplied
