Sony SRF-18 - Chassis Exploded View

12
SRF-18

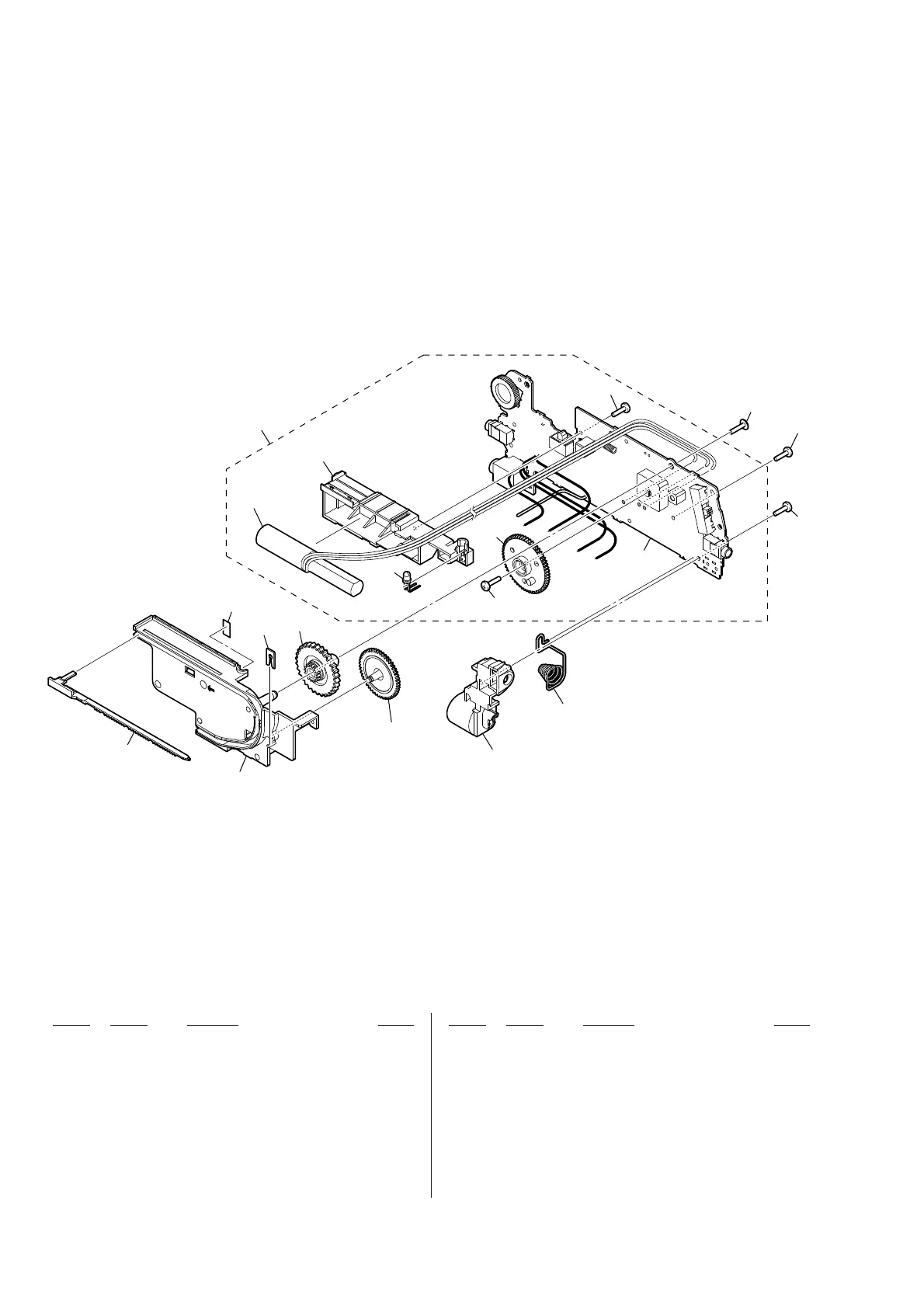

4-2. CHASSIS SECTION
51 4-294-739-01 POINTER
52 4-294-730-02 CHASSIS
53 4-294-736-01 GEAR (MIDWAY)
54 4-294-734-01 KNOB (TUNE) (for BLACK)
54 4-294-734-11 KNOB (TUNE) (for WHITE)
54 4-294-734-21 KNOB (TUNE) (for PINK)
55 3-877-234-01 WASHER
56 2-582-365-01 CUSHION (BUTTON)
57 A-1861-503-A MAIN BOARD, COMPLETE
58 4-294-731-02 HOLDER (FERRITE-ROD ANTENNA)
59 3-318-201-61 SCREW (B) (1.4X6), TAPPING
60 3-252-825-01 SCREW (1.7)
61 4-294-742-01 TERMINAL (–) BATTERY
62 4-294-738-01 HOLDER (DC) (for BLACK)
62 4-294-738-11 HOLDER (DC) (for WHITE)
62 4-294-738-21 HOLDER (DC) (for PINK)
63 3-254-148-01 SCREW (M1.7)
64 4-294-735-01 GEAR (VC)
D102 6-501-544-01 LED L-1154HD (TUNE)
L105 1-460-469-11 BAR ANTENNA COIL (AM)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
58
60
61
57
63
52
55
56
54
53
62
51
64
60
60
59
MAIN
board
D102
L105
