Sony SRF-18 - Front Cabinet Disassembly

SRF-18
3
Note: Follow the disassembly procedure in the numerical order given.

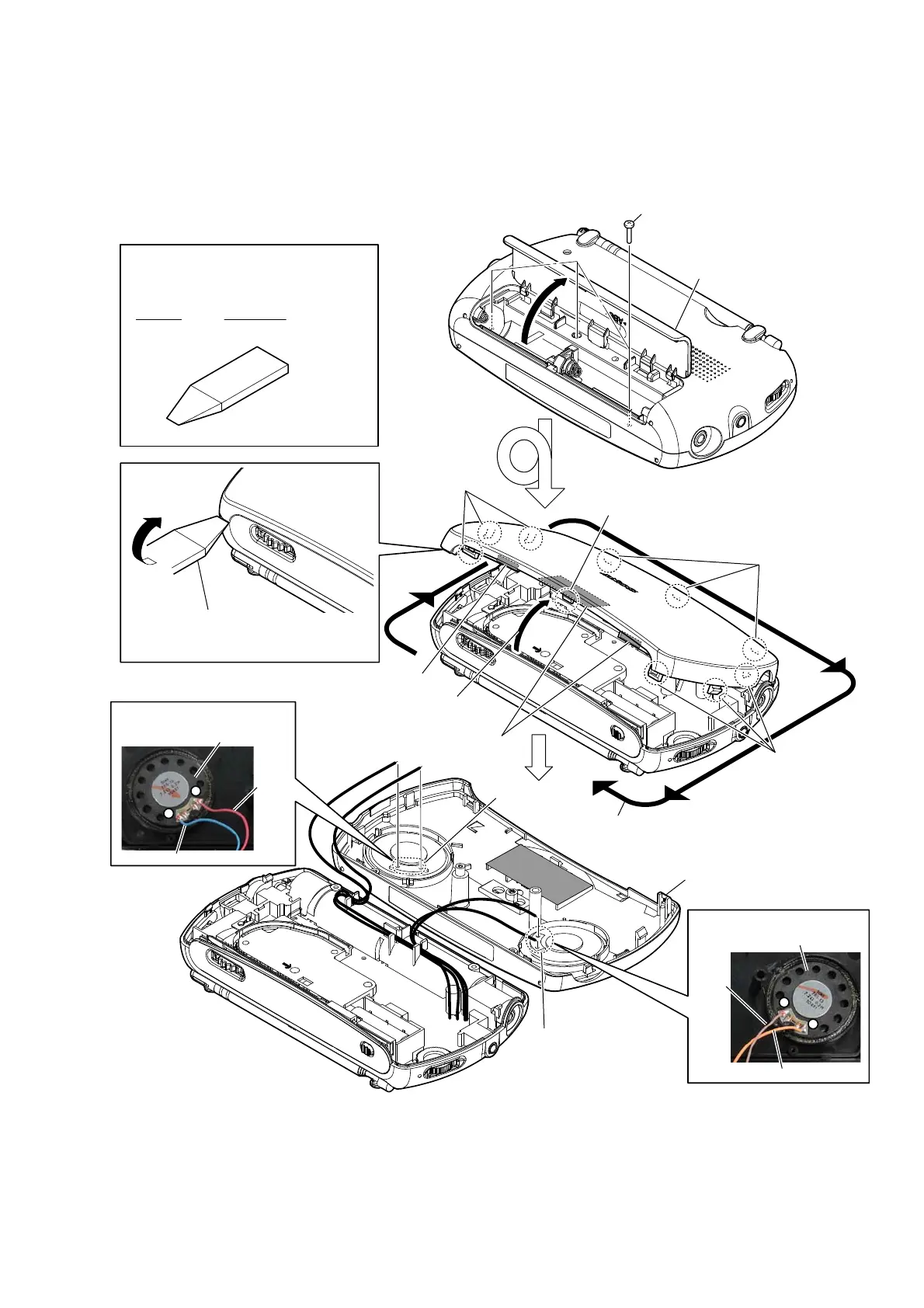

1-2. FRONT CABINET BLOCK
1 Open the battery case lid.
– Rear bottom view –
2 three screws
(1.7)
9 front cabinet block

JIG
When disassembling the unit,
use the following jig.
Part No. Description
9-913-402-33 Tool for Disassembly
3
Insert the jig in the space between
the cabinet front assy and the cabinet
rear assy and remove.
4 three claws
4 claw
4 three claws
6 adhesive sheet
– Front top view –
– Front top view –
5 Remove all claws while
rounding in outer.
7 Lift up the cabinet front assy
in the direction of an arrow.
4 three claws
8 Remove
two solders.
brown
orange
red
blue
speaker (3.6 cm)
speaker (3.6 cm)
8 Remove
two solders.
 :ire VettinJ
 :ire VettinJ
6 two adhesive
sheets
+
-
+
-
