Sony SRF-18 - Knob and Gear Disassembly

SRF-18
6

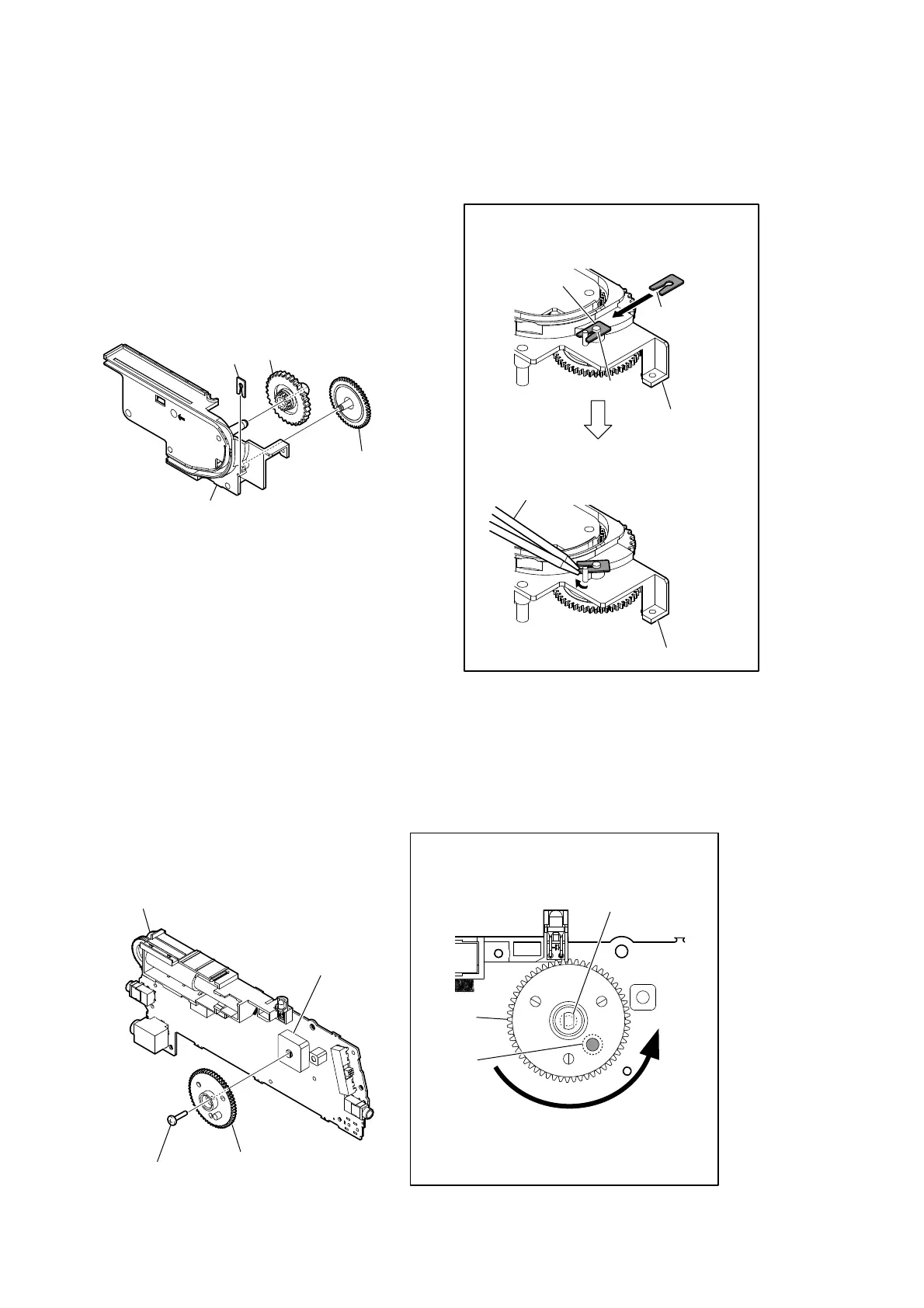

1-5. KNOB (TUNE)
chassis block
cutting
lack
boss
washer
chassis block
tweezers
:DVKHUVHWWLQJ
3 knob (tune)
1 washer
1 Cutting lack of a washer is united with boss and
it inserts in the direction of an arrow.
2 Washer is moved in the direction of an arrow
with tweezers.
2 gear (midway)
chassis block
1-6. GEAR (VC)
3 MAIN board
2 gear (VC)
boss
gear (VC)
CV101
axis
*HDUVHWWLQJ
1 Boss of a gear (VC) checks that it is in a position
as shown in a figure, and attaches to the axis
of CV101.
2 Gear (VC) is turned until it stops in the direction
of an arrow.
1 screw (M1.7)
Note:
Tightening torque (0.07
±
0.005 N·m)
