STR-DB725/DB825

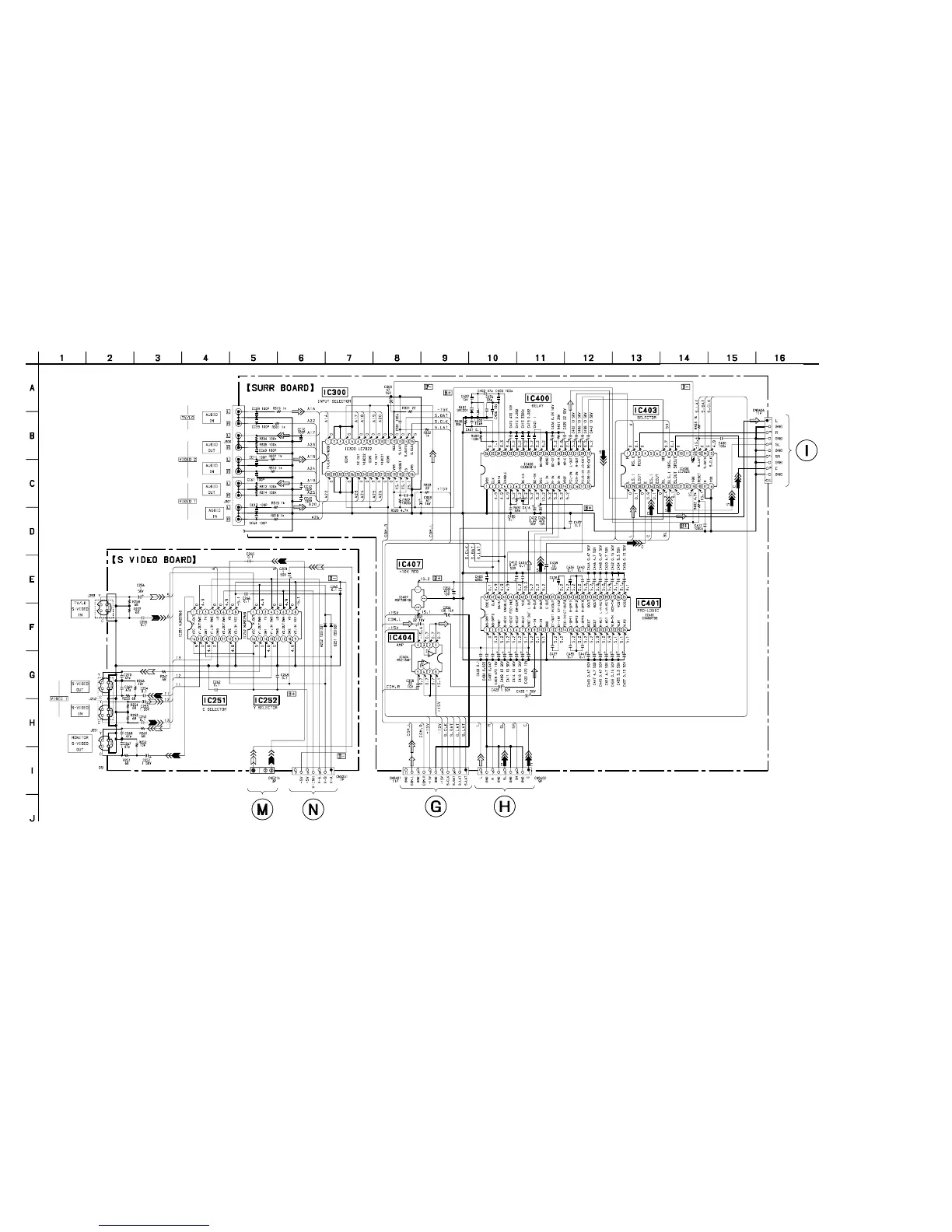

3-7. SCHEMATIC DIAGRAM – S-VIDEO SECTION –
• See page 43 for IC Block Diagrams.
(Page 14)
(Page 14)
(Page 18)
(Page 18)
(Page 18)
