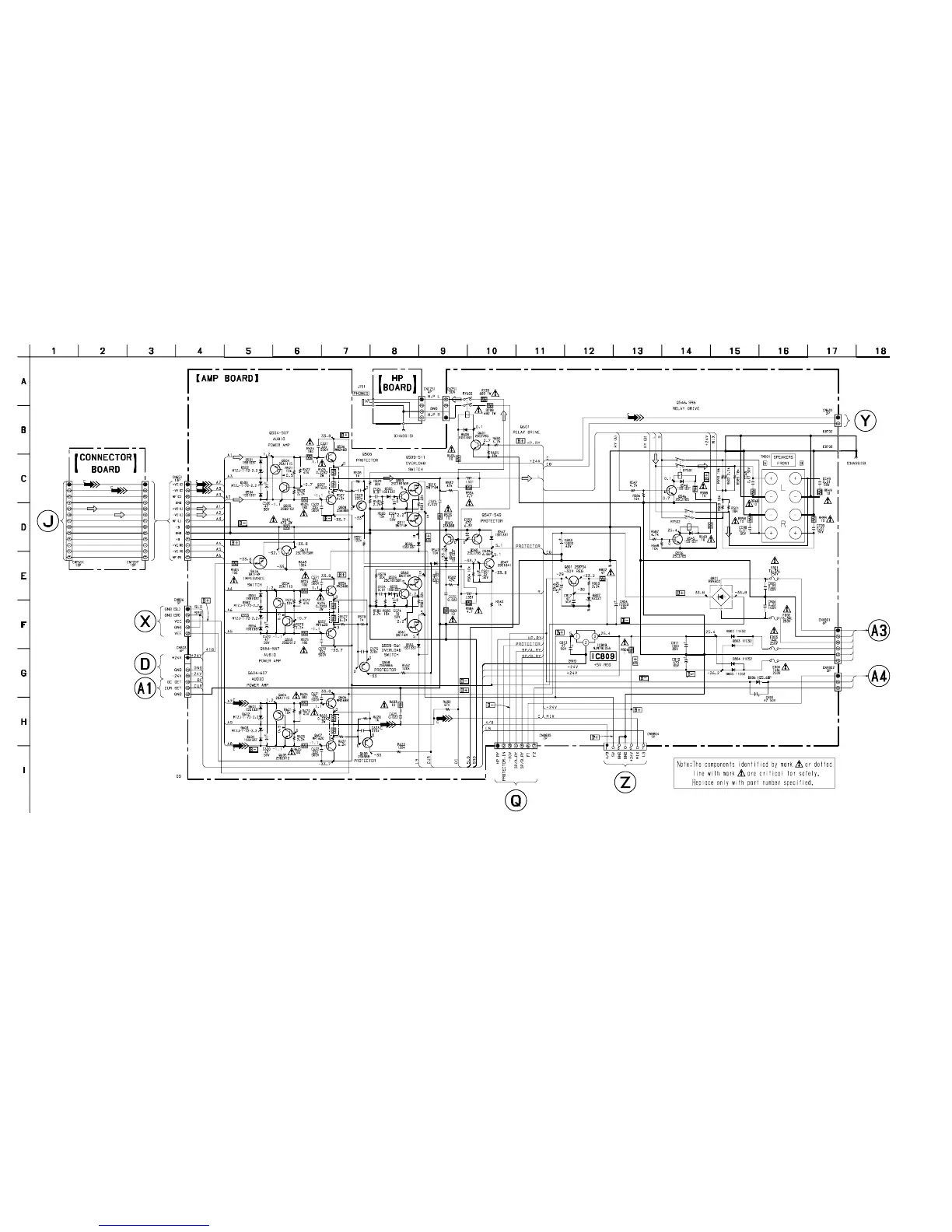

3-15. SCHEMATIC DIAGRAM – POWER AMP SECTION –
STR-DB725/DB825
(Page 25)
(Page 41)
(Page 41)
(Page 26)
(Page 31)
(Page 25)
(Page 17)
(Page
18)
(Page 25)
