1414

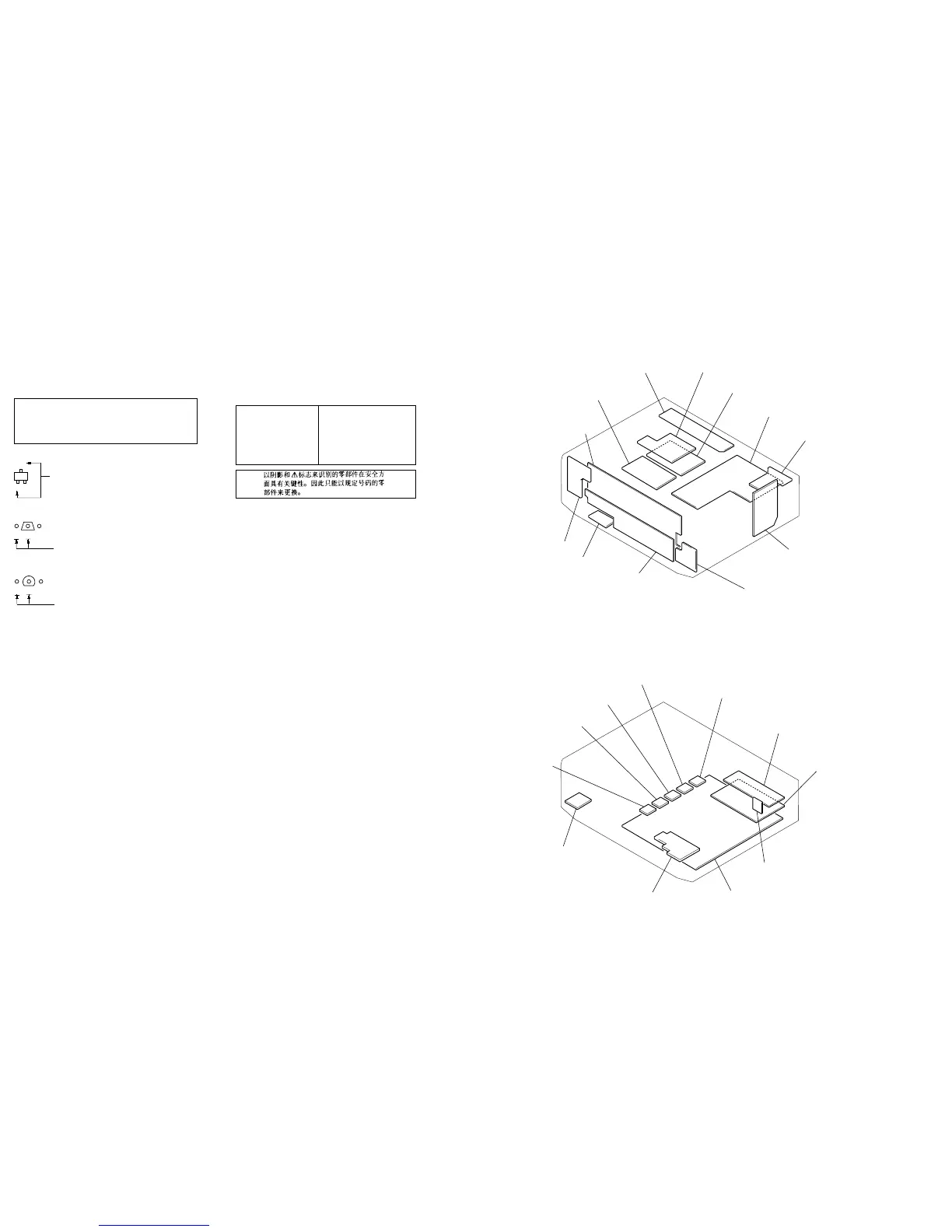

Circuit Boards Location
4-4. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
Note on Schematic Diagram:
All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
f
: internal component.
2 : nonflammable resistor.
C : panel designation.
U : B+ Line.
V : B– Line.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
: Impossible to measure
Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
Circled numbers refer to waveforms.
Signal path.
F : FM
J : CD
I : PHONO
Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
Q
B
These are omitted.
CE
Q
Note on Printed Wiring Board:
X : parts extracted from the component side.
Y : parts extracted from the conductor side.
a
: Through hole.
b : Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Parts on the pattern face side seen from
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
Indication of transistor
SP board DC (2) board
AC board
DIGITAL board
5.1 IN board
AU SW board
MUTING board
SW board
DISPLAY board
POWER board
DC (1) board
VIDEO 3 board
BIAS (C) board
BIAS (R) board
BIAS (RS) board
BIAS (LS) board
BIAS (L) board
S-VIDEO board
VIDEO board (DB840)/
OSD board (DB940)
JOINT (1) (Q) board (DB840)/
JOINT (2) (Q) board (DB940)
MAIN board
VOL board
H.P board
Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
