Sony STR-DB930 User Manual

ЕЕРЕЕ
="
===
===

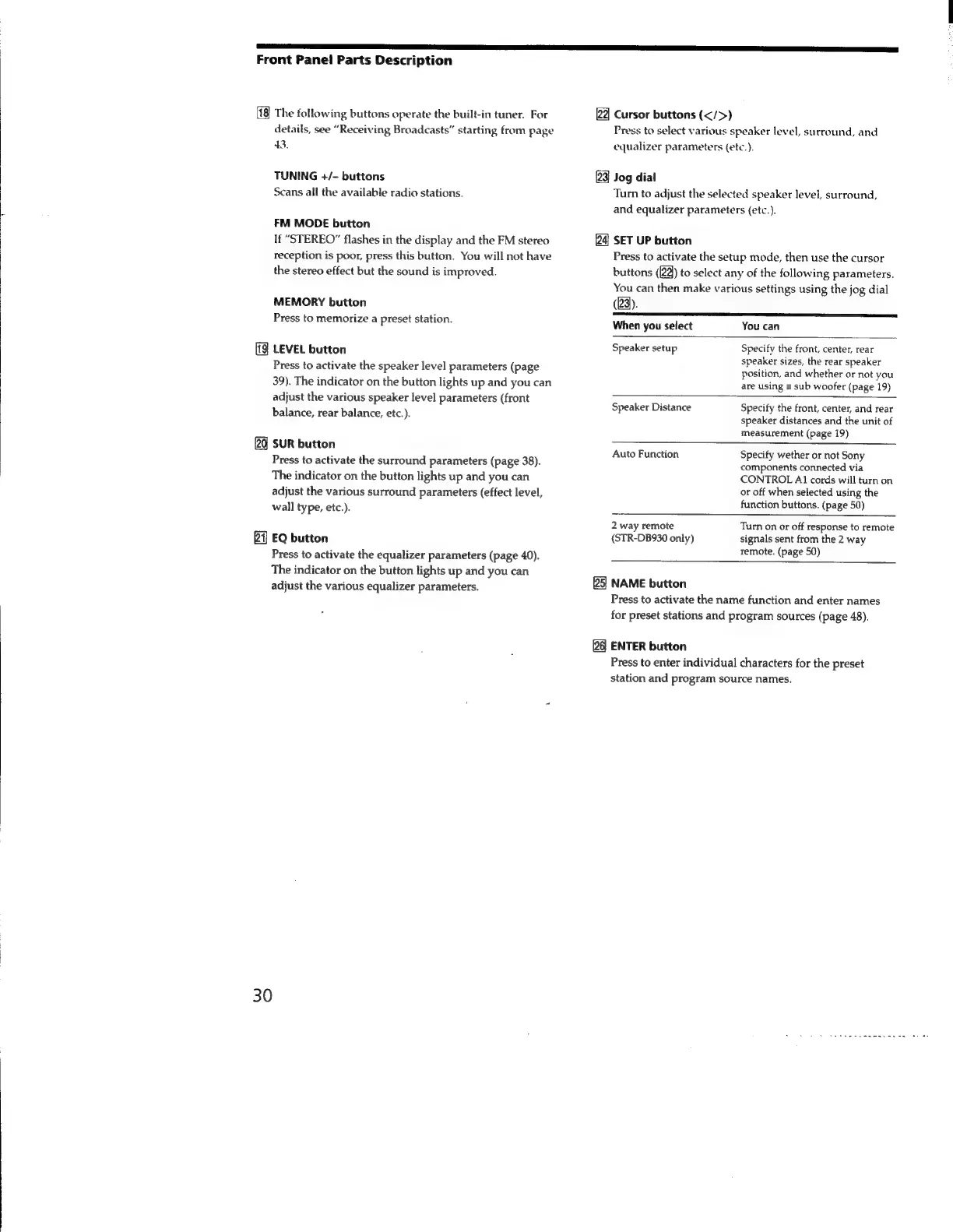

Front Panel Parts Description
The following buttons operate the built-in tuner. For
details, see "Receiving Broadcasts" starting from page
43.
TUNING +/- buttons
Scans all the available radio stations.
FM MODE button
If “STEREO” flashes in the display and the FM stereo
reception is poor, press this button. You will not have
the stereo effect but the sound is improved.
MEMORY button
Press to memorize a preset station.
LEVEL button
Press to activate the speaker level parameters (page
39). The indicator on the button lights up and you can
adjust the various speaker level parameters (front
balance, rear balance, etc.).
20 SUR button
Press to activate the surround parameters (page 38).
The indicator on the button lights up and you can
adjust the various surround parameters (effect level,
wall type, etc.).
EQ button
Press to activate the equalizer parameters (page 40).
The indicator on the button lights up and you can
adjust the various equalizer parameters.
30
[22 Cursor buttons (</>)
Press to select various speaker level, surround, and
equalizer parameters (etc.).
23 Jog dial
Turn to adjust the selected speaker level, surround,
and equalizer parameters (etc.).
[24] SET UP button
Press to activate the setup mode, then use the cursor
buttons (22) to select any of the following parameters.
You can then make various settings using the jog dial
(23).
When you select You can
Speaker setup Specify the front, center, rear
speaker sizes, the rear speaker
position, and whether ог not you
are using a sub woofer (page 19)
Speaker Distance Specify the front, center, and rear
speaker distances and the unit of
measurement (page 19)
Auto Function Specify wether or not Sony
components connected via
CONTROL АЛ cords will turn on
or off when selected using the
function buttons. (page 50)
2 way remote Turn on or off response to remote
(STR-DB930 only) signals sent from the 2 way
remote. (page 50)
25 NAME button
Press to activate the name function and enter names
for preset stations and program sources (page 48).
ENTER button
Press to enter individual characters for the preset
station and program source names.

Sony STR-DB930 Specifications

General

Channels	5.1
Digital Inputs	2 Optical, 1 Coaxial
Tuning Range	FM/AM
Input Sensitivity	150mV (line)
Speaker Load Impedance	8 ohms
Tuner Type	Digital
Frequency Response	10Hz to 100kHz
Total Harmonic Distortion	0.05%
Video Connections	Composite
Surround Sound	Dolby Digital, DTS
Video Inputs	Composite
Video Outputs	1 Composite
