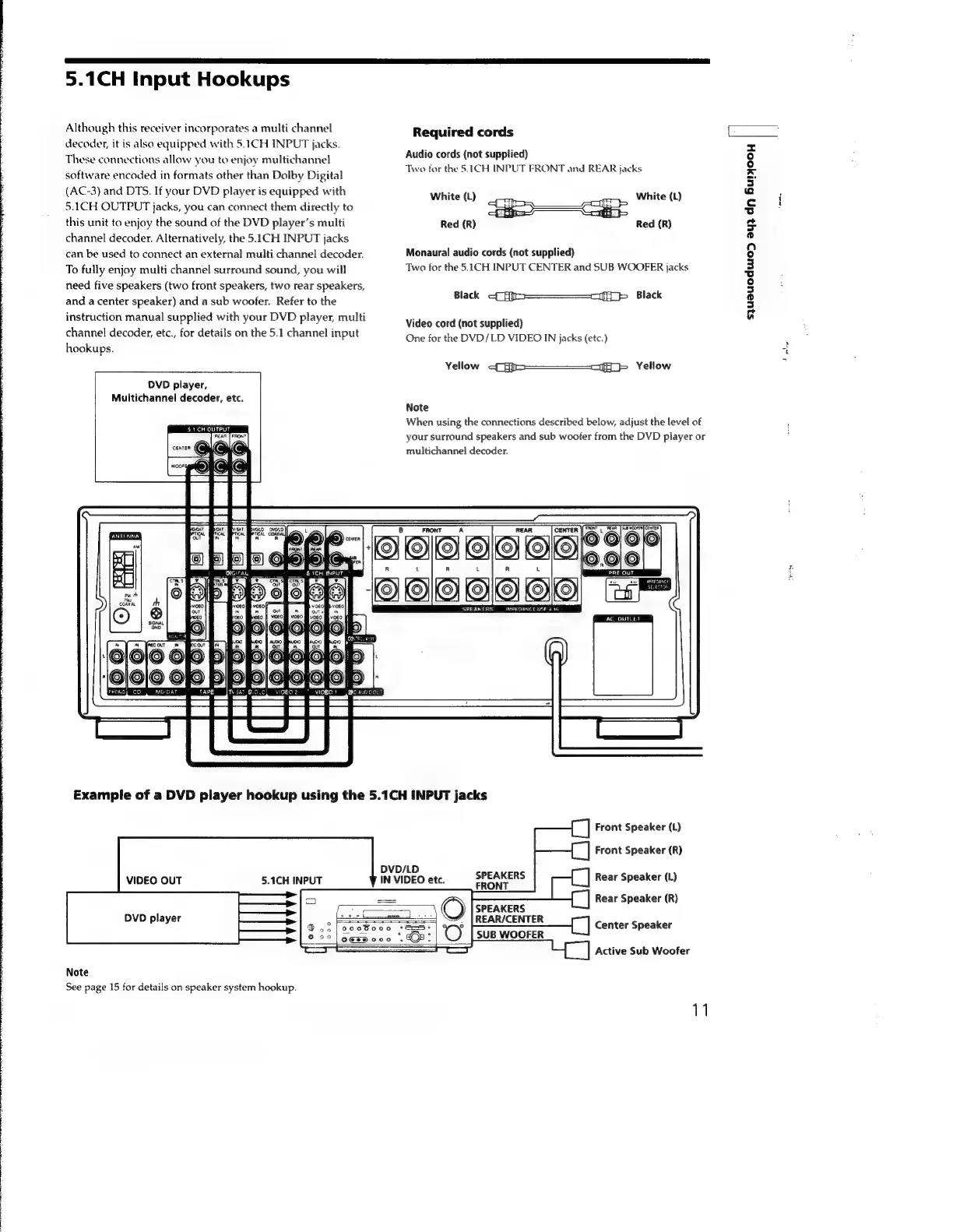

5.1CH Input Hookups
Although this receiver incorporates a multi channel Required cords
decoder, it is also equipped with 5.1CH INPUT jacks.
These connections allow you to enjoy multichannel
software encoded in formats other than Dolby Digital
(AC-3) and DTS. If your DVD player is equipped with
Audio cords (not supplied)
Two for the 5.1CH INPUT FRONT and REAR jacks
White (L) White (L)
5.1CH OUTPUT jacks, you can connect them directly to = >
this unit to enjoy the sound of the DVD player’s multi Red (R) 7 j Red (R)
channel decoder. Alternatively, the 5.1CH INPUT jacks
can be used to connect an external multi channel decoder. Monaural audio cords (not supplied)
To fully enjoy multi channel surround sound, you will Two for the 5.1CH INPUT CENTER and SUB WOOFER jacks
need five speakers (two front speakers, two rear speakers,
and
a
center
speaker)
and
a
sub
woofer.
Refer
to
the
Black
<E
Black
instruction manual supplied with your DVD player, multi
channel decoder, etc., for details on the 5.1 channel input
hookups.
Video cord (not supplied)
One for the DVD/LD VIDEO IN jacks (etc.)
Yellow <E Yellow
DVD player,
Multichannel decoder, etc.
Note
When using the connections described below, adjust the level of
your surround speakers and sub woofer from the DVD player or
multichannel decoder.
5з CH OUTPUT
ГЄ ЕТТТ Te:
AS | (99:
>
E
Fj
e
8
ЕУ
Өр
e3 ОДО | |
SPEAKERS
9: Q9 је:
t: Qi ©)
©
9 (
О (
©
©
ШО
Example of a DVD player hookup using the 5.1CH INPUT jacks
Front Speaker (L)
Front Speaker (R)
DVD/LD
VIDEO OUT 5.1CH INPUT IN VIDEO etc. күс айк Rear Speaker (L)
=
Rear
Speaker
(R)
|
a
O
SPEAKERS
у
Q
з
|ооо®ооо
*©шэ.
o
REAR/CENTER
Center
Speaker
о
оо
|
ое
ооо
„8.
О
SUB
WOOFER
Active Sub Woofer
Note
See page 15 for details on speaker system hookup.
11
s3ueuoduro» əy} ап би'лоон

Sony STR-DB930 Specifications

General

Channels	5.1
Digital Inputs	2 Optical, 1 Coaxial
Tuning Range	FM/AM
Input Sensitivity	150mV (line)
Speaker Load Impedance	8 ohms
Tuner Type	Digital
Frequency Response	10Hz to 100kHz
Total Harmonic Distortion	0.05%
Video Connections	Composite
Surround Sound	Dolby Digital, DTS
Video Inputs	Composite
Video Outputs	1 Composite
