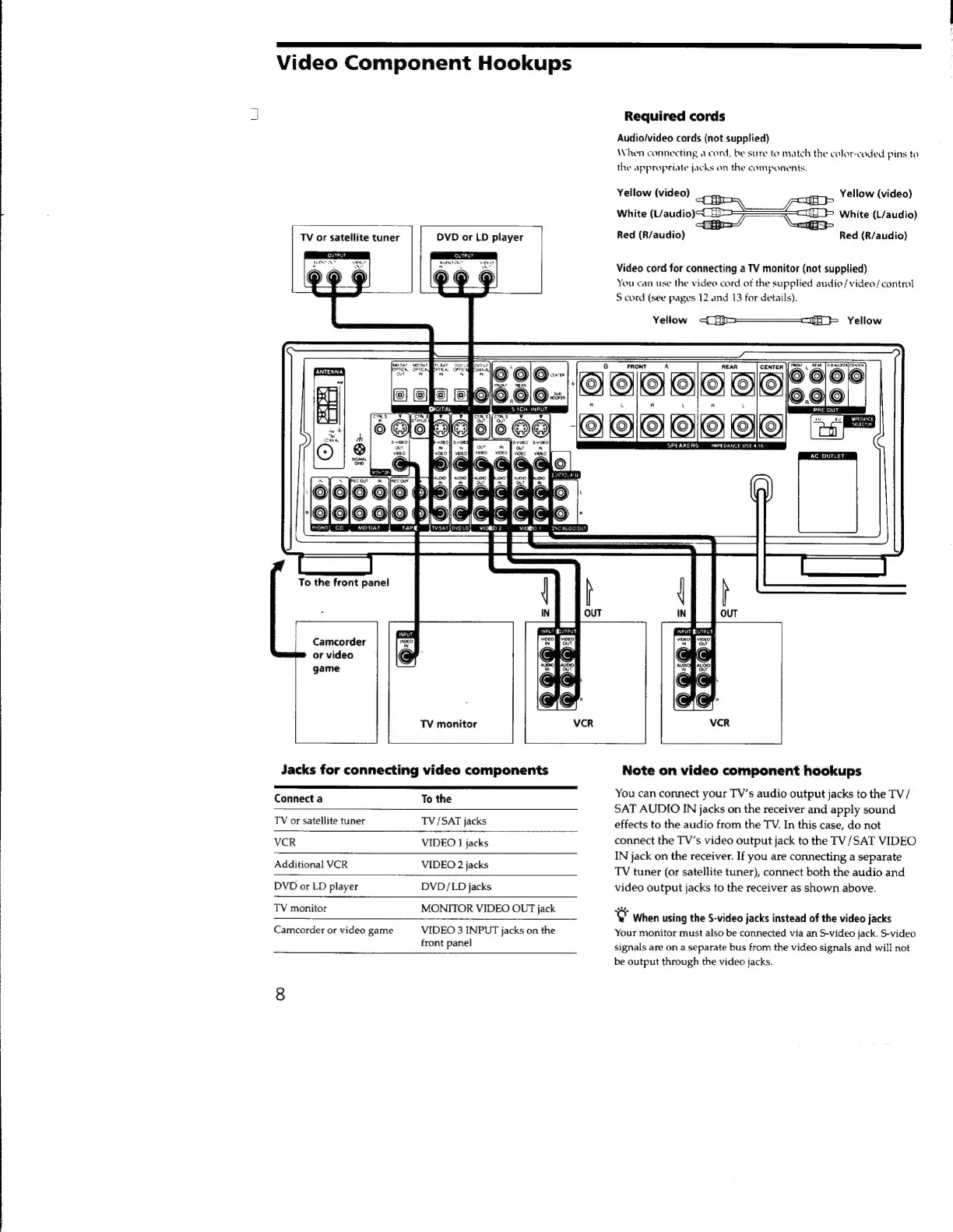

Video Component Hookups
TV or satellite tuner OVD or LD player
OUTPUT
OUTPUT
Required cords
Audio/video cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
_ Yellow (video)
White (L/audio)
Red (R/audio)
Red (R/audio)
Video cord for connecting a TV monitor (not supplied)
You can use the video cord of the supplied audio/video/control
S cord (see pages 12 and 13 for details).
Yellow
Yeliow
B
©
©
To the front panel
|
OUT
IN
L
INPUT [OUTPUT
Camcorder g
or video са
дате
TV monitor
SPEAKERS
IMPEDANCE USE 4.16."
{
=
INPUT OUTPUT
|
ойт
Jacks for connecting video components
Connect a To the
TV or satellite tuner TV/SAT jacks
VCR VIDEO 1 jacks
Additional VCR VIDEO 2 jacks
DVD or LD player DVD/LD jacks
TV monitor MONITOR VIDEO OUT jack
Camcorder or video game VIDEO 3 INPUT jacks on the
front panel
Note on video component hookups
You can connect your TV's audio output jacks to the TV /
SAT AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV. In this case, do not
connect the TV's video output jack to the TV/SAT VIDEO
IN jack on the receiver. If you are connecting a separate
TV tuner (or satellite tuner), connect both the audio and
video output jacks to the receiver as shown above.
€" When using the S-video jacks instead of the video jacks
Your monitor must also be connected via an S-video jack. S-video
signals are on a separate bus from the video signals and will not
be output through the video jacks.
