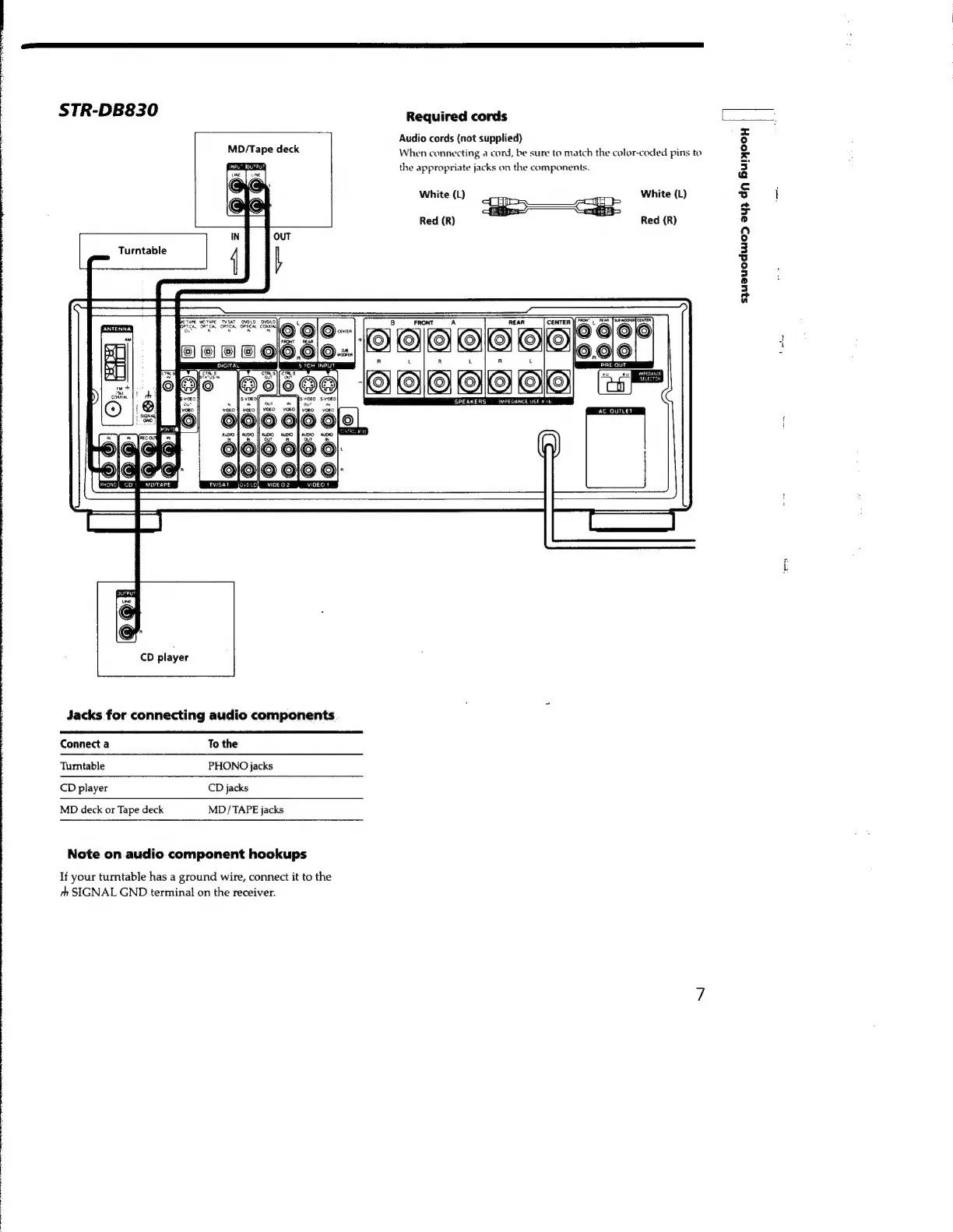

STR-DB830
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
MD/Tape deck
INPU* OUTPUT
the appropriate jacks on the components.
White (L) White (L)
Red (R) i P Red (R)
Turntab
TAPE МСТАРЕ TVSAT OVOLO OVOLO
Perca. ОотСл. ОРТСА, OPTICAL COAX!
OS D b * ч
28
SPEAKERS.
IMPEDANCE USE 2.16
CD player
Jacks for connecting audio components
Connect a To the
Turntable PHONO jacks
CD player CD jacks
MD deck or Tape deck MD/TAPE jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
+ SIGNAL GND terminal on the receiver.
