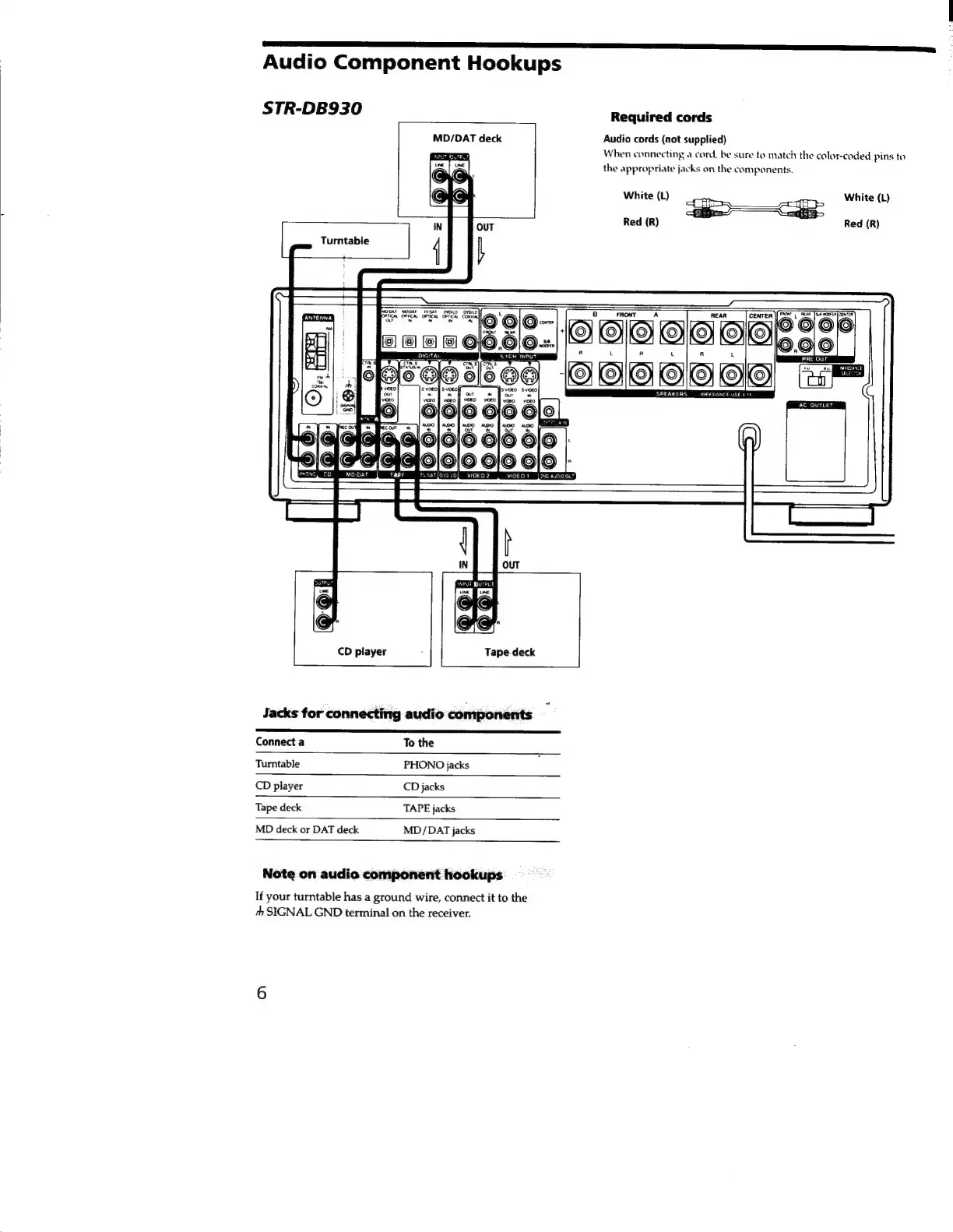

Audio Component Hookups
STR-DB930
MD/DAT deck
Turntable
Required cords
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components.
White (L) White (L)
Red (R) 5 ред (R)
SPEAKERS IMPEDANCE USE 3 Tf
CD player
Tape deck
Jacks for connecting audio components
Connect a To the
Turntable PHONO jacks
CD player CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
+ SIGNAL GND terminal on the receiver.
