Page #36 background imageLoading...
Page #36 background image
eel

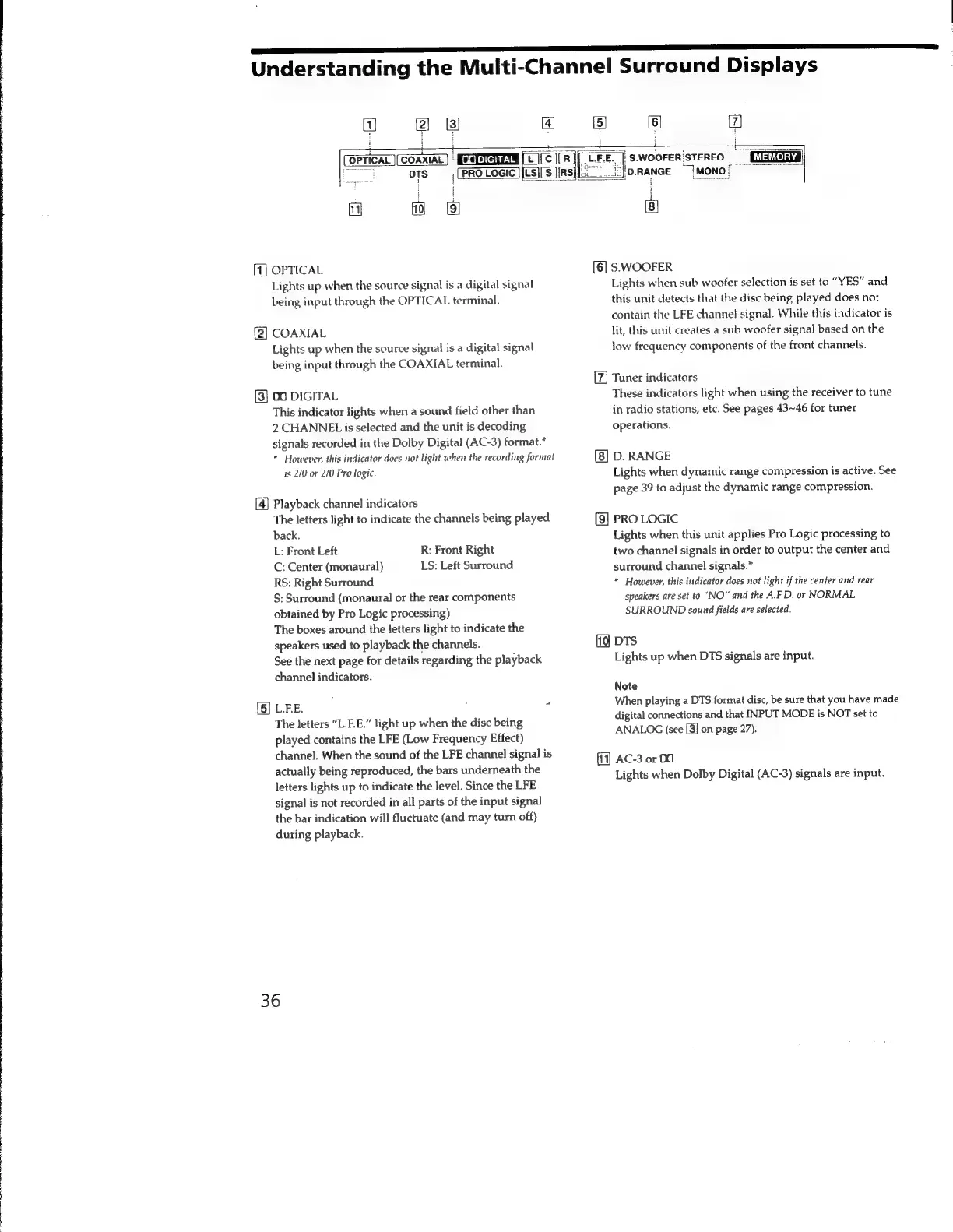

Understanding
the
Multi-Channel
Surround
Displays
т
аи
[4]
6
7
T
i
OPTICAL
||
COAXIAL
|
OC
DIGITAL
prs
ДРВО
Logic
[Ls]
s
)
|swoorEn'sreEREo
Д
ID.RANGE
МОМО
С
5
вә
1)
OPTICAL
Lights
up
when
the
source
signal
is
a
digital
signal
being
input
through
the
OPTICAL
terminal.
2|
COAXIAL
Lights
up
when
the
source
signal
is
a
digital
signal
being
input
through
the
COAXIAL
terminal.
3j
ПО
DIGITAL
This
indicator
lights
when
a
sound
field
other
than
2
CHANNEL
is
selected
and
the
unit
is
decoding
signals
recorded
in
the
Dolby
Digital
(AC-3)
format."
*
However,
tliis
indicator
does
not
light
when
the
recording
format
is
2/0
or
2/0
Pro
logic.
[4]
Playback
channel
indicators
The
letters
light
to
indicate
the
channels
being
played
back.
L:
Front
Left
R:
Front
Right
C:
Center
(monaural)
LS:
Left
Surround
RS:
Right
Surround
S:
Surround
(monaural
or
the
rear
components
obtained
by
Pro
Logic
processing)
The
boxes
around
the
letters
light
to
indicate
the
speakers
used
to
playback
the
channels.
See
the
next
page
for
details
regarding
the
playback
channel
indicators.
[5]
L.F.E.
d
The
letters
“L.F.E.”
light
up
when
the
disc
being
played
contains
the
LFE
(Low
Frequency
Effect)
channel.
When
the
sound
of
the
LFE
channel
signal
is
actually
being
reproduced,
the
bars
underneath
the
letters
lights
up
to
indicate
the
level.
Since
the
LFE
signal
is
not
recorded
in
all
parts
of
the
input
signal
the
bar
indication
will
fluctuate
(and
may
turn
off)
during
playback.
36
(6]
[9]
19
i
i
i
S.WOOFER
Lights
when
sub
woofer
selection
is
set
to
"YES"
and
this
unit
detects
that
the
disc
being
played
does
not
contain
the
LFE
channel
signal.
While
this
indicator
is
lit,
this
unit
creates
a
sub
woofer
signal
based
on
the
low
frequency
components
of
the
front
channels.
Tuner
indicators
These
indicators
light
when
using
the
receiver
to
tune
in
radio
stations,
etc.
See
pages
43-46
for
tuner
operations.
D.
RANGE
Lights
when
dynamic
range
compression
is
active.
See
page
39
to
adjust
the
dynamic
range
compression.
PRO
LOGIC
Lights
when
this
unit
applies
Pro
Logic
processing
to
two
channel
signals
in
order
to
output
the
center
and
surround
channel
signals.*
*
However,
this
indicator
does
not
light
if
the
center
and
rear
speakers
are
set
to
"NO"
and
the
A.F.D.
or
NORMAL
SURROUND
sound
fields
are
selected.
DTS
Lights
up
when
DTS
signals
are
input.
Note
When
playing
a
DTS
format
disc,
be
sure
that
you
have
made
digital
connections
and
that
INPUT
MODE
is
NOT
set
to
ANALOG
(see
[3]
on
page
27).
AC-3
or
00
Lights
when
Dolby
Digital
(AC-3)
signals
are
input.
