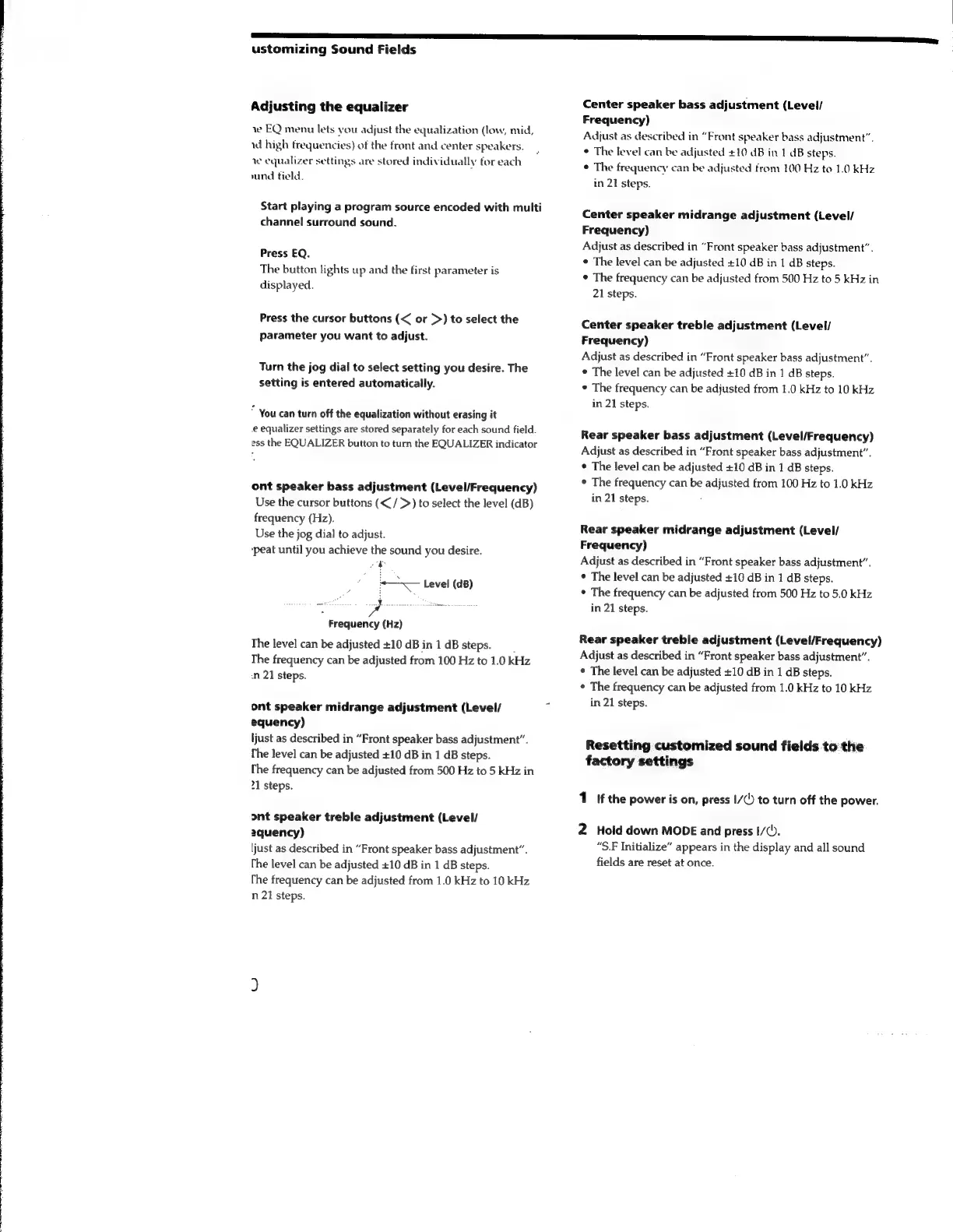

ustomizing Sound Fields
Adjusting the equalizer
ye EQ menu lets you adjust the equalization (low, mid,
id high frequencies) of the front and center speakers.
w equalizer settings are stored individually for each
und беја.
Start playing a program source encoded with multi
channel surround sound.
Press EQ.
The button lights up and the first parameter is
displayed.
Press the cursor buttons (< or >) to select the
parameter you want to adjust.
Turn the jog dial to select setting you desire. The
setting is entered automatically.
* You can turn off the equalization without erasing it
e equalizer settings are stored separately for each sound field.
ass the EQUALIZER button to turn the EQUALIZER indicator
ont speaker bass adjustment (Level/Frequency)
Use the cursor buttons (</>) to select the level (dB)
frequency (Hz).
Use the jog dial to adjust.
‘peat until you achieve the sound you desire.
is
; | =< Level (dB)
Frequency (Hz)
The level can be adjusted +10 dB in 1 dB steps. —
The frequency can be adjusted from 100 Hz to 1.0 kHz
n 21 steps.
ont speaker midrange adjustment (Level/ d
equency)
ljust as described in "Front speaker bass adjustment".
The level can be adjusted +10 dB in 1 dB steps.
[he frequency can be adjusted from 500 Hz to 5 kHz in
21 steps.
ont speaker treble adjustment (Level/
aquency)
ljust as described in "Front speaker bass adjustment".
the level can be adjusted +10 dB in 1 dB steps.
Che frequency can be adjusted from 1.0 kHz to 10 kHz
n 21 steps.
Center speaker bass adjustment (Level/
Frequency)
Adjust as described in "Front speaker bass adjustment".
* The level can be adjusted +10 dB in 1 dB steps.
* The frequency can be adjusted from 100 Hz to 1.0 kHz
in 21 steps.
Center speaker midrange adjustment (Level/
Frequency)
Adjust as described in "Front speaker bass adjustment".
* The level can be adjusted +10 dB in 1 dB steps.
* The frequency can be adjusted from 500 Hz to 5 kHz in
21 steps.
Center speaker treble adjustment (Level/
Frequency)
Adjust as described in "Front speaker bass adjustment".
* The level can be adjusted +10 dB in 1 dB steps.
* The frequency can be adjusted from 1.0 kHz to 10 kHz
in 21 steps.
Rear speaker bass adjustment (Level/Frequency)
Adjust as described in "Front speaker bass adjustment".
* The level can be adjusted +10 dB in 1 dB steps.
* The frequency can be adjusted from 100 Hz to 1.0 kHz
in 21 steps. $
Rear speaker midrange adjustment (Level/
Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted +10 dB in 1 dB steps.
e The frequency can be adjusted from 500 Hz to 5.0 kHz
in 21 steps.
Rear speaker treble adjustment (Level/Frequency)
Adjust as described in “Front speaker bass adjustment”.
• The level can be adjusted +10 dB in 1 dB steps.
• The frequency can be adjusted from 1.0 kHz to 10 kHz
in 21 steps.
Resetting customized sound fields to the
factory settings
1 if the power is on, press I/() to turn off the power.
2 Hold down MODE and press I/(5.
“S.F Initialize” appears in the display and all sound
fields are reset at once.

Sony STR-DB930 Specifications

General

Channels	5.1
Digital Inputs	2 Optical, 1 Coaxial
Tuning Range	FM/AM
Input Sensitivity	150mV (line)
Speaker Load Impedance	8 ohms
Tuner Type	Digital
Frequency Response	10Hz to 100kHz
Total Harmonic Distortion	0.05%
Video Connections	Composite
Surround Sound	Dolby Digital, DTS
Video Inputs	Composite
Video Outputs	1 Composite
