Sony STR-DE135 - Printed Wiring Board - MAIN Board

STR-DE135
C757
(AEP,UK)
C707
(AEP,UK)
– 11 –
– 12 –

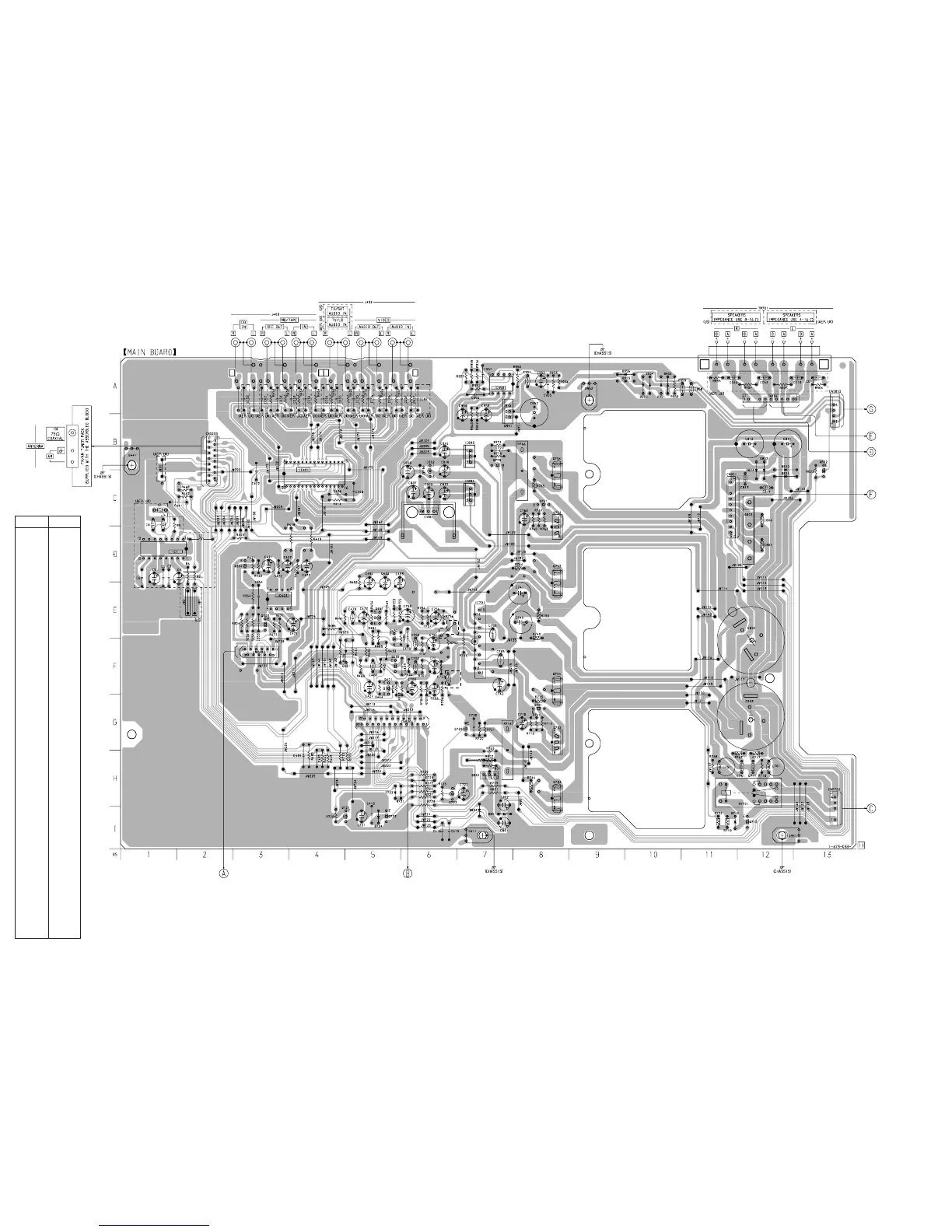

5-2. PRINTED WIRING BOARD – MAIN Board –
• See page 8 for Circuit Boards Location.
D421 F-5
D710 I-11
D721 H-5
D722 H-5
D723 H-6
D724 I-5
D801 I-7
D802 D-12
D804 I-7
D820 C-12
D821 C-12
D822 C-12
D823 C-12
D951 A-10
D952 A-10
D953 A-10
D954 A-10
D955 A-10
D956 A-10
IC1 D-1
IC401 C-4
IC403 E-3
IC701 E-7
IC801 C-6
IC802 C-6
IC803 B-7
IC804 C-7
IC950 A-7
Q303 E-3
Q304 D-3
Q401 F-5
Q402 F-5
Q451 E-5
Q452 F-5
Q701 G-8
Q702 G-8
Q703 H-8
Q704 F-8
Q710 I-12
Q720 G-7
Q721 I-5
Q722 H-6
Q723 I-5
Q751 C-8
Q752 D-8
Q753 E-8
Q754 C-8
Q770 B-7
Q801 H-7
Q802 C-13
Q951 A-7
• Semiconductor
Location
Ref. No. Location
(Page 17)
(Page 24)
(Page
23)
(Page 23)
(Page 15)
(Page
23)
(Page
23)
