Sony STR-DE135 - Schematic Diagram - MAIN Board (1;2)

STR-DE135

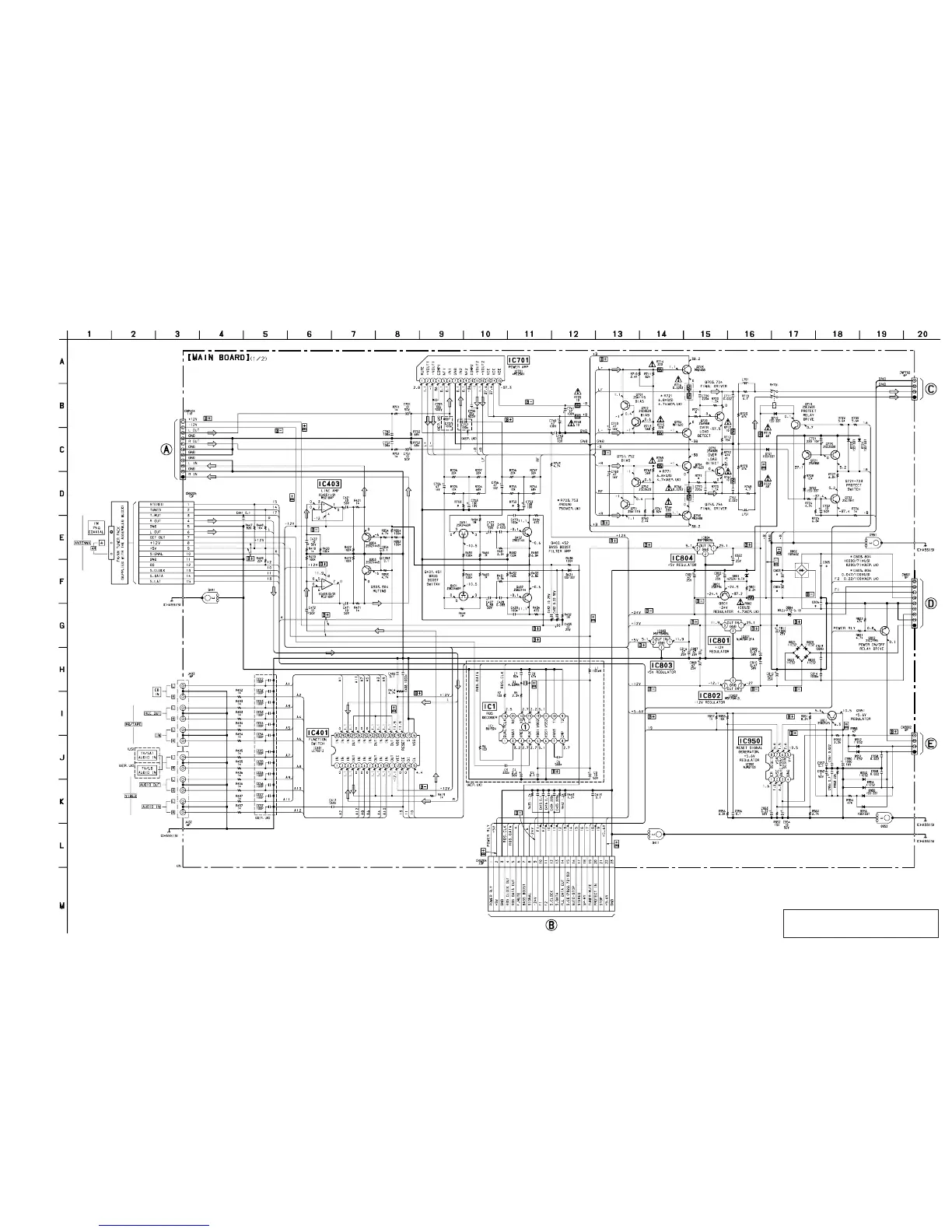

5-3. SCHEMATIC DIAGRAM – MAIN Board (1/2) – • See page 10 for Waveform. • See page 21 for IC Block Diagrams.
– 13 –
– 14 –
(Page
25)
(Page
25)
(Page 20)
(Page 19)
(Page
25)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
