Sony STR-DE135 - Section 3 Disassembly; CASE; FRONT PANEL SECTION

– 5 –
CASE

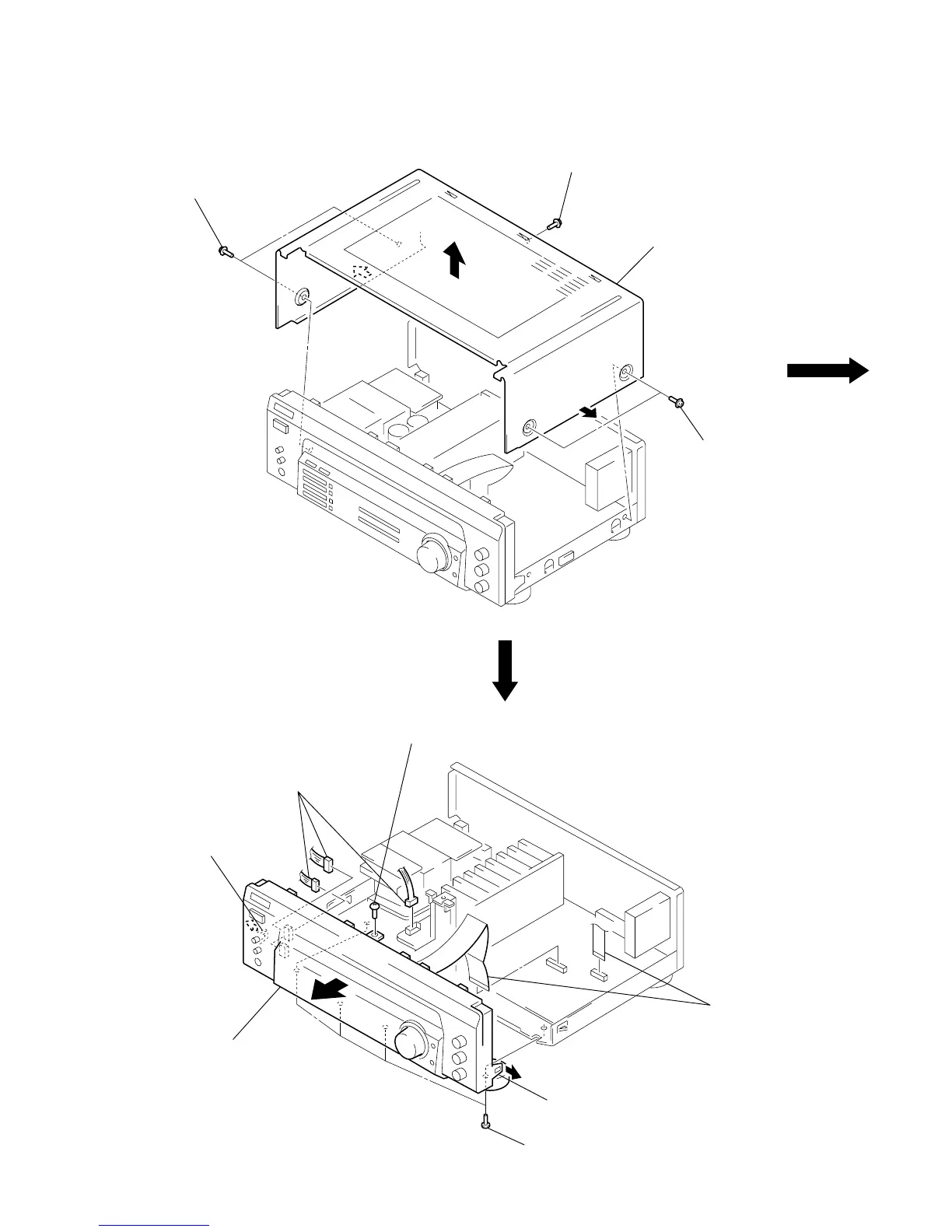

FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 two tapping screws
1 tapping screw
2 case
1 two tapping screw
s
2 three connectors
(CNP702 – 704)
3 screw
(BVTP3
× 8)
4 claw
5 front panel
section
3 four screws
(BVTP3
× 8)
4 claw
1 two flat wires
(CNS204, CNP404
)
