SECTION 2
GENERAL
1 I/u button
2 TUNING +, – buttons (US model)
TUNING/CHAR +, – buttons
(AEP, UK models)
3 NAME button (AEP, UK models)
4 PRESET/TUNING +, – buttons
(US model)
PRESET/PTY SELECT +, – buttons
(AEP, UK models)
5 DISPLAY button (AEP, UK models)
6 RDS PTY button (AEP, UK models)
7 AM button (US model)
RDS EON button (AEP, UK models)

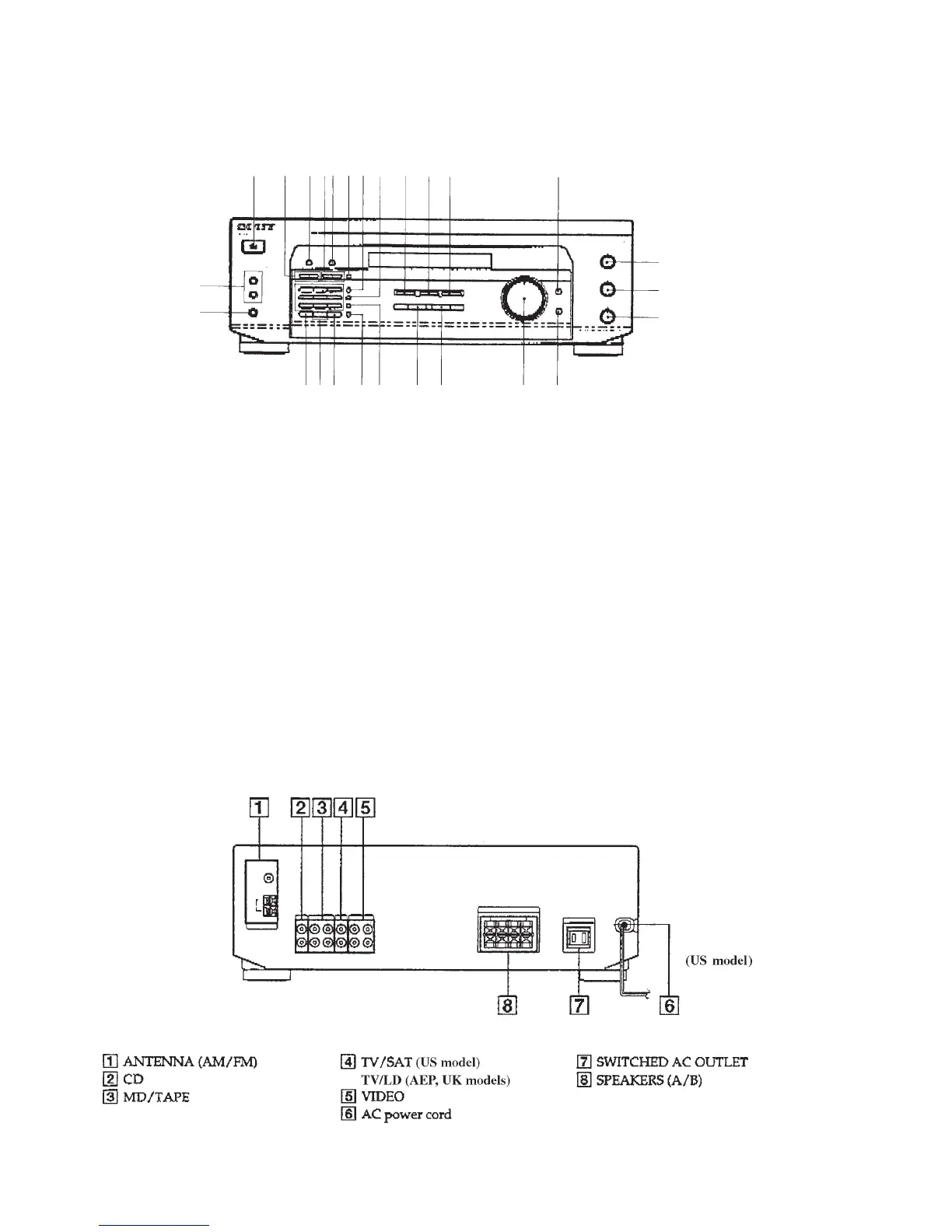

Location of controls
• Front view –
8 FM button (US model)
FM/AM button (AEP, UK models)
9 VIDEO button
0 TV/SAT button (US model)
TV/LD button (AEP, UK models)
!¡ MD/TAPE button
!™ BASS BOOST button and indicator
!£ SPEAKERS A, B ON/OFF buttons
!¢ PHONES jack
!∞ SHIFT button
!§ Numeric buttons
!¶ DIRECT button
!• MEMORY button (US model)
MEMORY/ENTER button
(AEP, UK models)
!ª FM MODE button
@º TUNER button
@¡ CD button
@™ VOLUME control
@£ MUTING button and indicator
@¢ TREBLE control
@∞ BASS control
@§ BALANCE control
3
45
1
2
67
!∞
8
9
0
!¡
!™
!£
!¢
!§!¶
!•
!ª @º
@¡
@™
@£
@¢
@∞
@§
• Rear view –
