STR-DE245/DE345
1010

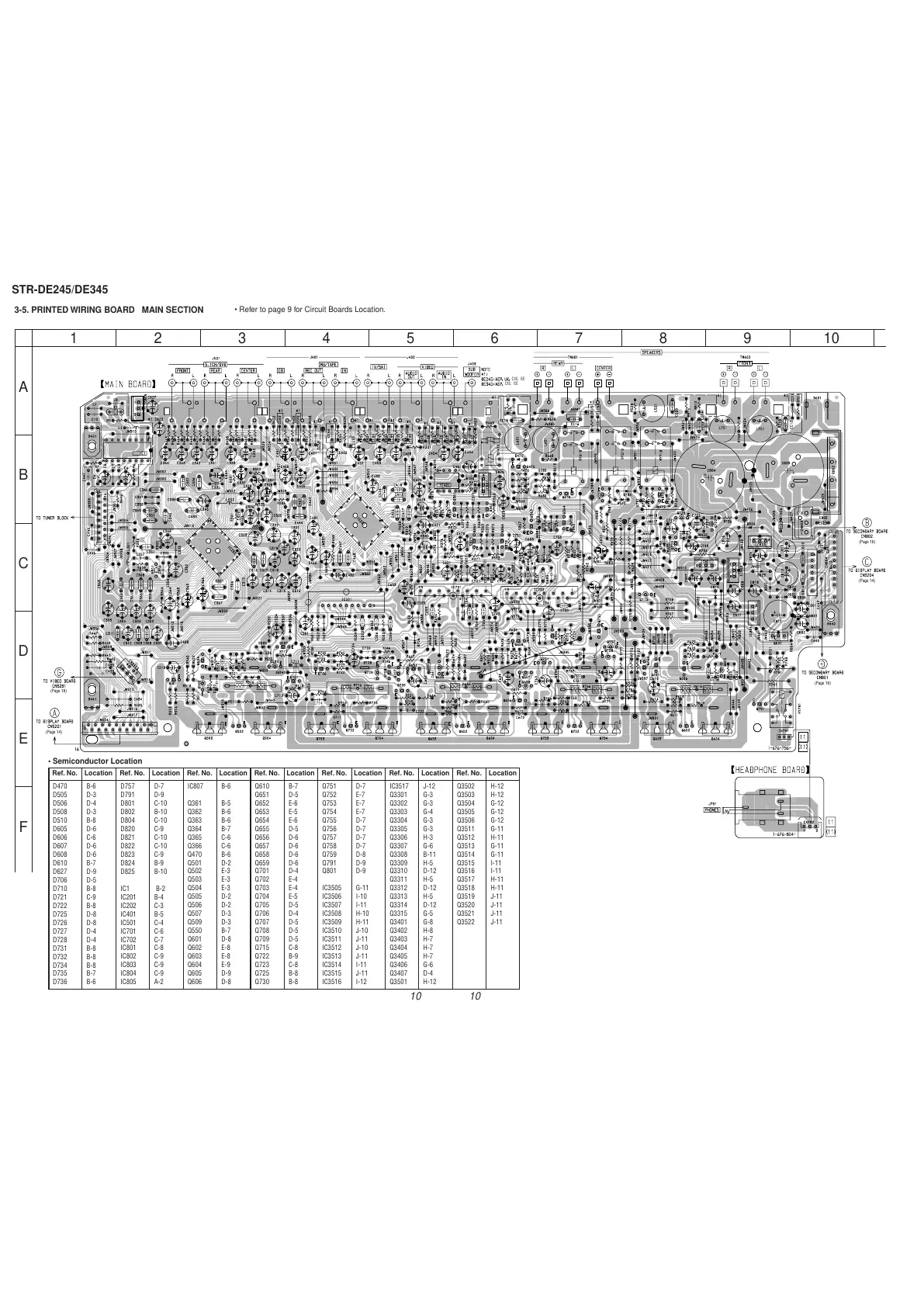

3-5. PRINTED WIRING BOARD MAIN SECTION
• Refer to page 9 for Circuit Boards Location.
12
A
B
C
D
E
F
345678910
(Page 16)
(Page 14)
(Page 16)
(Page 18)
(Page 14)
CIS, EE
CIS, EE
C706
C606
C764
C714
Ref. No. LocationRef. No. Location
• Semiconductor Location
D470 B-6
D505 D-3
D506 D-4
D508 D-3
D510 B-8
D605 D-6
D606 C-6
D607 D-6
D608 D-6
D610 B-7
D627 D-9
D706 D-5
D710 B-8
D721 C-9
D722 B-8
D725 D-8
D726 D-8
D727 D-4
D728 D-4
D731 B-8
D732 B-8
D734 B-8
D735 B-7
D736 B-6
D757 D-7
D791 D-9
D801 C-10
D802 B-10
D804 C-10
D820 C-9
D821 C-10
D822 C-10
D823 C-9
D824 B-9
D825 B-10
IC1 B-2
IC201 B-4
IC202 C-3
IC401 B-5
IC501 C-4
IC701 C-6
IC702 C-7
IC801 C-8
IC802 C-9
IC803 C-9
IC804 C-9
IC805 A-2
IC807 B-6
Q361 B-5
Q362 B-6
Q363 B-6
Q364 B-7
Q365 C-6
Q366 C-6
Q470 B-6
Q501 D-2
Q502 E-3
Q503 E-3
Q504 E-3
Q505 D-2
Q506 D-2
Q507 D-3
Q509 D-3
Q550 B-7
Q601 D-8
Q602 E-8
Q603 E-8
Q604 E-9
Q605 D-9
Q606 D-8
Q610 B-7
Q651 D-5
Q652 E-6
Q653 E-5
Q654 E-6
Q655 D-5
Q656 D-6
Q657 D-6
Q658 D-6
Q659 D-6
Q701 D-4
Q702 E-4
Q703 E-4
Q704 E-5
Q705 D-5
Q706 D-4
Q707 D-5
Q708 D-5
Q709 D-5
Q715 C-8
Q722 B-9
Q723 C-8
Q725 B-8
Q730 B-8
Q751 D-7
Q752 E-7
Q753 E-7
Q754 E-7
Q755 D-7
Q756 D-7
Q757 D-7
Q758 D-7
Q759 D-8
Q791 D-9
Q801 D-9
IC3505 G-11
IC3506 I-10
IC3507 I-11
IC3508 H-10
IC3509 H-11
IC3510 J-10
IC3511 J-11
IC3512 J-10
IC3513 J-11
IC3514 I-11
IC3515 J-11
IC3516 I-12
IC3517 J-12
Q3301 G-3
Q3302 G-3
Q3303 G-4
Q3304 G-3
Q3305 G-3
Q3306 H-3
Q3307 G-6
Q3308 B-11
Q3309 H-5
Q3310 D-12
Q3311 H-5
Q3312 D-12
Q3313 H-5
Q3314 D-12
Q3315 G-5
Q3401 G-8
Q3402 H-8
Q3403 H-7
Q3404 H-7
Q3405 H-7
Q3406 G-6
Q3407 D-4
Q3501 H-12
Q3502 H-12
Q3503 H-12
Q3504 G-12
Q3505 G-12
Q3506 G-12
Q3511 G-11
Q3512 H-11
Q3513 G-11
Q3514 G-11
Q3515 I-11
Q3516 I-11
Q3517 H-11
Q3518 H-11
Q3519 J-11
Q3520 J-11
Q3521 J-11
Q3522 J-11
Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location
