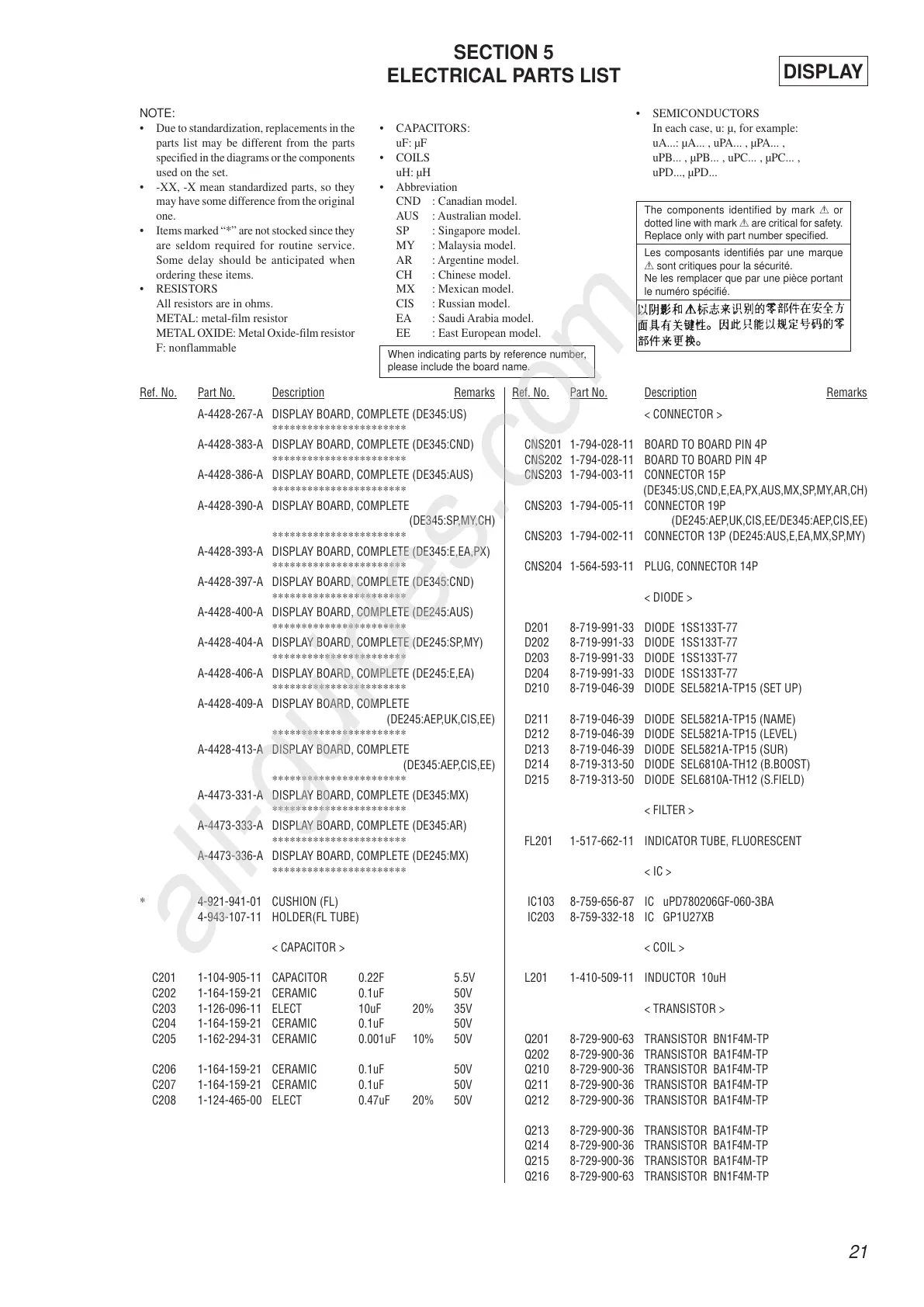

SECTION 5
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• CAPACITORS:
uF: µF
• COILS
uH: µH
• Abbreviation
CND : Canadian model.
AUS : Australian model.
SP : Singapore model.
MY : Malaysia model.
AR : Argentine model.
CH : Chinese model.
MX : Mexican model.
CIS : Russian model.
EA : Saudi Arabia model.
EE : East European model.
When indicating parts by reference number,
please include the board name.
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
A-4428-267-A DISPLAY BOARD, COMPLETE (DE345:US)
***********************
A-4428-383-A DISPLAY BOARD, COMPLETE (DE345:CND)
***********************
A-4428-386-A DISPLAY BOARD, COMPLETE (DE345:AUS)
***********************
A-4428-390-A DISPLAY BOARD, COMPLETE
(DE345:SP,MY,CH)
***********************
A-4428-393-A DISPLAY BOARD, COMPLETE (DE345:E,EA,PX)
***********************
A-4428-397-A DISPLAY BOARD, COMPLETE (DE345:CND)
***********************
A-4428-400-A DISPLAY BOARD, COMPLETE (DE245:AUS)
***********************
A-4428-404-A DISPLAY BOARD, COMPLETE (DE245:SP,MY)
***********************
A-4428-406-A DISPLAY BOARD, COMPLETE (DE245:E,EA)
***********************
A-4428-409-A DISPLAY BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
***********************
A-4428-413-A DISPLAY BOARD, COMPLETE
(DE345:AEP,CIS,EE)
***********************
A-4473-331-A DISPLAY BOARD, COMPLETE (DE345:MX)
***********************
A-4473-333-A DISPLAY BOARD, COMPLETE (DE345:AR)
***********************
A-4473-336-A DISPLAY BOARD, COMPLETE (DE245:MX)
***********************
* 4-921-941-01 CUSHION (FL)
4-943-107-11 HOLDER(FL TUBE)
< CAPACITOR >
C201 1-104-905-11 CAPACITOR 0.22F 5.5V
C202 1-164-159-21 CERAMIC 0.1uF 50V
C203 1-126-096-11 ELECT 10uF 20% 35V
C204 1-164-159-21 CERAMIC 0.1uF 50V
C205 1-162-294-31 CERAMIC 0.001uF 10% 50V
C206 1-164-159-21 CERAMIC 0.1uF 50V
C207 1-164-159-21 CERAMIC 0.1uF 50V
C208 1-124-465-00 ELECT 0.47uF 20% 50V
< CONNECTOR >
CNS201 1-794-028-11 BOARD TO BOARD PIN 4P
CNS202 1-794-028-11 BOARD TO BOARD PIN 4P
CNS203 1-794-003-11 CONNECTOR 15P
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
CNS203 1-794-005-11 CONNECTOR 19P
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CNS203 1-794-002-11 CONNECTOR 13P (DE245:AUS,E,EA,MX,SP,MY)
CNS204 1-564-593-11 PLUG, CONNECTOR 14P
< DIODE >
D201 8-719-991-33 DIODE 1SS133T-77
D202 8-719-991-33 DIODE 1SS133T-77
D203 8-719-991-33 DIODE 1SS133T-77
D204 8-719-991-33 DIODE 1SS133T-77
D210 8-719-046-39 DIODE SEL5821A-TP15 (SET UP)
D211 8-719-046-39 DIODE SEL5821A-TP15 (NAME)
D212 8-719-046-39 DIODE SEL5821A-TP15 (LEVEL)
D213 8-719-046-39 DIODE SEL5821A-TP15 (SUR)
D214 8-719-313-50 DIODE SEL6810A-TH12 (B.BOOST)
D215 8-719-313-50 DIODE SEL6810A-TH12 (S.FIELD)
< FILTER >
FL201 1-517-662-11 INDICATOR TUBE, FLUORESCENT
< IC >
IC103 8-759-656-87 IC uPD780206GF-060-3BA
IC203 8-759-332-18 IC GP1U27XB
< COIL >
L201 1-410-509-11 INDUCTOR 10uH
< TRANSISTOR >
Q201 8-729-900-63 TRANSISTOR BN1F4M-TP
Q202 8-729-900-36 TRANSISTOR BA1F4M-TP
Q210 8-729-900-36 TRANSISTOR BA1F4M-TP
Q211 8-729-900-36 TRANSISTOR BA1F4M-TP
Q212 8-729-900-36 TRANSISTOR BA1F4M-TP
Q213 8-729-900-36 TRANSISTOR BA1F4M-TP
Q214 8-729-900-36 TRANSISTOR BA1F4M-TP
Q215 8-729-900-36 TRANSISTOR BA1F4M-TP
Q216 8-729-900-63 TRANSISTOR BN1F4M-TP
DISPLAY
