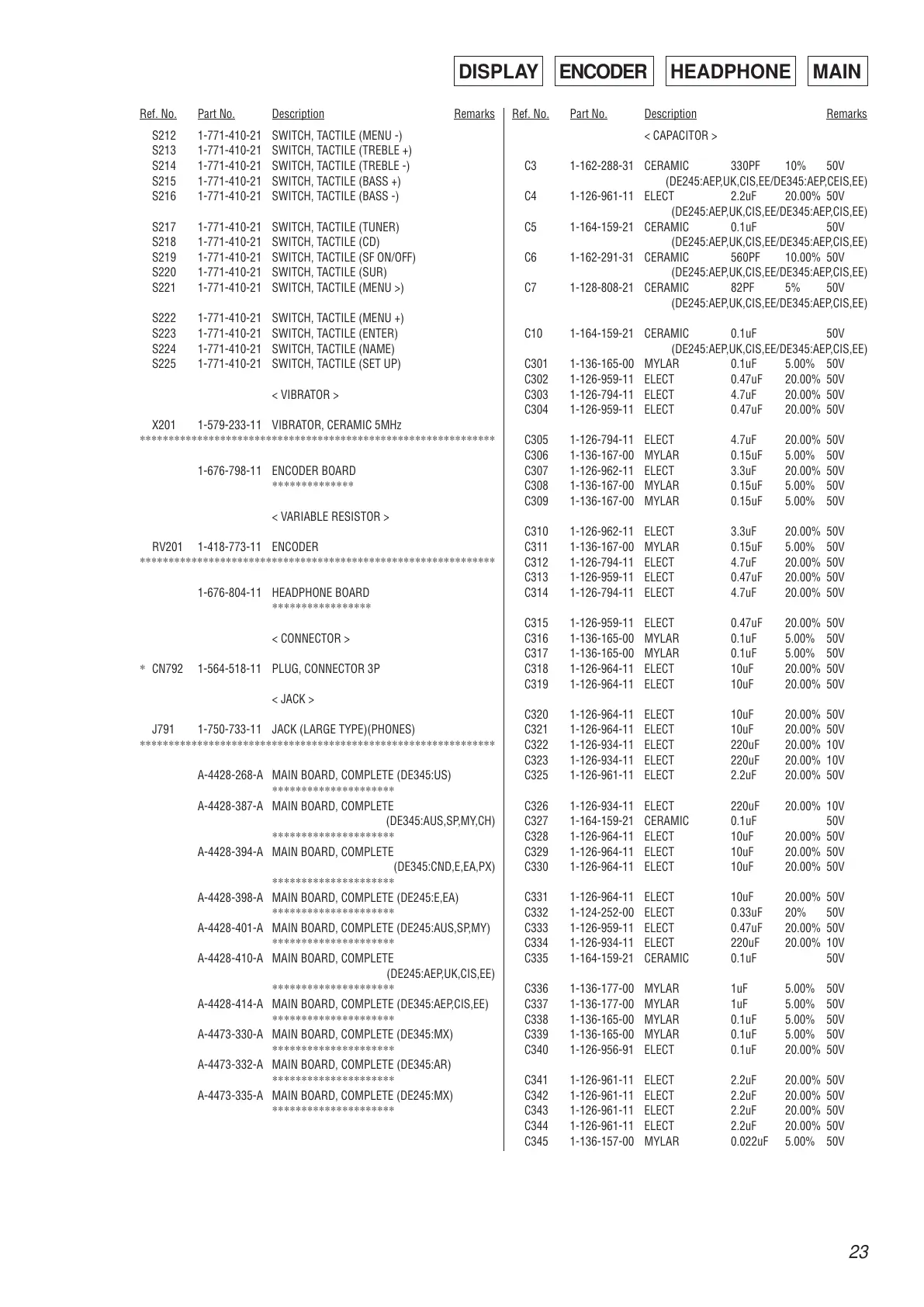

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
23
S212 1-771-410-21 SWITCH, TACTILE (MENU -)
S213 1-771-410-21 SWITCH, TACTILE (TREBLE +)
S214 1-771-410-21 SWITCH, TACTILE (TREBLE -)
S215 1-771-410-21 SWITCH, TACTILE (BASS +)
S216 1-771-410-21 SWITCH, TACTILE (BASS -)
S217 1-771-410-21 SWITCH, TACTILE (TUNER)
S218 1-771-410-21 SWITCH, TACTILE (CD)
S219 1-771-410-21 SWITCH, TACTILE (SF ON/OFF)
S220 1-771-410-21 SWITCH, TACTILE (SUR)
S221 1-771-410-21 SWITCH, TACTILE (MENU >)
S222 1-771-410-21 SWITCH, TACTILE (MENU +)
S223 1-771-410-21 SWITCH, TACTILE (ENTER)
S224 1-771-410-21 SWITCH, TACTILE (NAME)
S225 1-771-410-21 SWITCH, TACTILE (SET UP)
< VIBRATOR >
X201 1-579-233-11 VIBRATOR, CERAMIC 5MHz
**************************************************************
1-676-798-11 ENCODER BOARD
**************
< VARIABLE RESISTOR >
RV201 1-418-773-11 ENCODER
**************************************************************
1-676-804-11 HEADPHONE BOARD
*****************
< CONNECTOR >
* CN792 1-564-518-11 PLUG, CONNECTOR 3P
< JACK >
J791 1-750-733-11 JACK (LARGE TYPE)(PHONES)
**************************************************************
A-4428-268-A MAIN BOARD, COMPLETE (DE345:US)
*********************
A-4428-387-A MAIN BOARD, COMPLETE
(DE345:AUS,SP,MY,CH)
*********************
A-4428-394-A MAIN BOARD, COMPLETE
(DE345:CND,E,EA,PX)
*********************
A-4428-398-A MAIN BOARD, COMPLETE (DE245:E,EA)
*********************
A-4428-401-A MAIN BOARD, COMPLETE (DE245:AUS,SP,MY)
*********************
A-4428-410-A MAIN BOARD, COMPLETE
(DE245:AEP,UK,CIS,EE)
*********************
A-4428-414-A MAIN BOARD, COMPLETE (DE345:AEP,CIS,EE)
*********************
A-4473-330-A MAIN BOARD, COMPLETE (DE345:MX)
*********************
A-4473-332-A MAIN BOARD, COMPLETE (DE345:AR)
*********************
A-4473-335-A MAIN BOARD, COMPLETE (DE245:MX)
*********************
< CAPACITOR >
C3 1-162-288-31 CERAMIC 330PF 10% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CEIS,EE)
C4 1-126-961-11 ELECT 2.2uF 20.00% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C5 1-164-159-21 CERAMIC 0.1uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C6 1-162-291-31 CERAMIC 560PF 10.00% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C7 1-128-808-21 CERAMIC 82PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C10 1-164-159-21 CERAMIC 0.1uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
C301 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C302 1-126-959-11 ELECT 0.47uF 20.00% 50V
C303 1-126-794-11 ELECT 4.7uF 20.00% 50V
C304 1-126-959-11 ELECT 0.47uF 20.00% 50V
C305 1-126-794-11 ELECT 4.7uF 20.00% 50V
C306 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C307 1-126-962-11 ELECT 3.3uF 20.00% 50V
C308 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C309 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C310 1-126-962-11 ELECT 3.3uF 20.00% 50V
C311 1-136-167-00 MYLAR 0.15uF 5.00% 50V
C312 1-126-794-11 ELECT 4.7uF 20.00% 50V
C313 1-126-959-11 ELECT 0.47uF 20.00% 50V
C314 1-126-794-11 ELECT 4.7uF 20.00% 50V
C315 1-126-959-11 ELECT 0.47uF 20.00% 50V
C316 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C317 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C318 1-126-964-11 ELECT 10uF 20.00% 50V
C319 1-126-964-11 ELECT 10uF 20.00% 50V
C320 1-126-964-11 ELECT 10uF 20.00% 50V
C321 1-126-964-11 ELECT 10uF 20.00% 50V
C322 1-126-934-11 ELECT 220uF 20.00% 10V
C323 1-126-934-11 ELECT 220uF 20.00% 10V
C325 1-126-961-11 ELECT 2.2uF 20.00% 50V
C326 1-126-934-11 ELECT 220uF 20.00% 10V
C327 1-164-159-21 CERAMIC 0.1uF 50V
C328 1-126-964-11 ELECT 10uF 20.00% 50V
C329 1-126-964-11 ELECT 10uF 20.00% 50V
C330 1-126-964-11 ELECT 10uF 20.00% 50V
C331 1-126-964-11 ELECT 10uF 20.00% 50V
C332 1-124-252-00 ELECT 0.33uF 20% 50V
C333 1-126-959-11 ELECT 0.47uF 20.00% 50V
C334 1-126-934-11 ELECT 220uF 20.00% 10V
C335 1-164-159-21 CERAMIC 0.1uF 50V
C336 1-136-177-00 MYLAR 1uF 5.00% 50V
C337 1-136-177-00 MYLAR 1uF 5.00% 50V
C338 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C339 1-136-165-00 MYLAR 0.1uF 5.00% 50V
C340 1-126-956-91 ELECT 0.1uF 20.00% 50V
C341 1-126-961-11 ELECT 2.2uF 20.00% 50V
C342 1-126-961-11 ELECT 2.2uF 20.00% 50V
C343 1-126-961-11 ELECT 2.2uF 20.00% 50V
C344 1-126-961-11 ELECT 2.2uF 20.00% 50V
C345 1-136-157-00 MYLAR 0.022uF 5.00% 50V
DISPLAY ENCODER HEADPHONE MAIN
