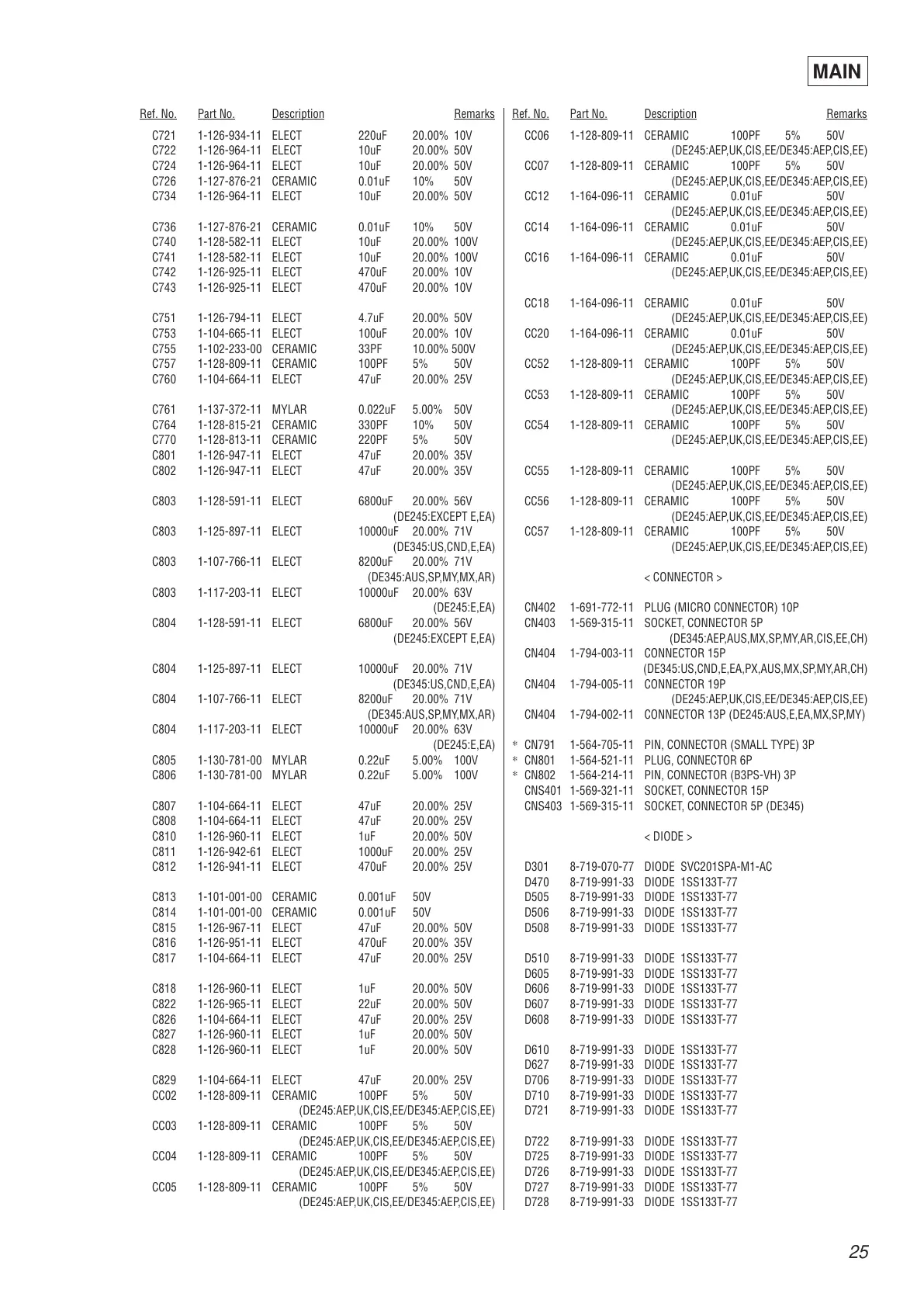

Sony STR-DE245 - Page 25

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
25
C721 1-126-934-11 ELECT 220uF 20.00% 10V
C722 1-126-964-11 ELECT 10uF 20.00% 50V
C724 1-126-964-11 ELECT 10uF 20.00% 50V
C726 1-127-876-21 CERAMIC 0.01uF 10% 50V
C734 1-126-964-11 ELECT 10uF 20.00% 50V
C736 1-127-876-21 CERAMIC 0.01uF 10% 50V
C740 1-128-582-11 ELECT 10uF 20.00% 100V
C741 1-128-582-11 ELECT 10uF 20.00% 100V
C742 1-126-925-11 ELECT 470uF 20.00% 10V
C743 1-126-925-11 ELECT 470uF 20.00% 10V
C751 1-126-794-11 ELECT 4.7uF 20.00% 50V
C753 1-104-665-11 ELECT 100uF 20.00% 10V
C755 1-102-233-00 CERAMIC 33PF 10.00% 500V
C757 1-128-809-11 CERAMIC 100PF 5% 50V
C760 1-104-664-11 ELECT 47uF 20.00% 25V
C761 1-137-372-11 MYLAR 0.022uF 5.00% 50V
C764 1-128-815-21 CERAMIC 330PF 10% 50V
C770 1-128-813-11 CERAMIC 220PF 5% 50V
C801 1-126-947-11 ELECT 47uF 20.00% 35V
C802 1-126-947-11 ELECT 47uF 20.00% 35V
C803 1-128-591-11 ELECT 6800uF 20.00% 56V
(DE245:EXCEPT E,EA)
C803 1-125-897-11 ELECT 10000uF 20.00% 71V
(DE345:US,CND,E,EA)
C803 1-107-766-11 ELECT 8200uF 20.00% 71V
(DE345:AUS,SP,MY,MX,AR)
C803 1-117-203-11 ELECT 10000uF 20.00% 63V
(DE245:E,EA)
C804 1-128-591-11 ELECT 6800uF 20.00% 56V
(DE245:EXCEPT E,EA)
C804 1-125-897-11 ELECT 10000uF 20.00% 71V
(DE345:US,CND,E,EA)
C804 1-107-766-11 ELECT 8200uF 20.00% 71V
(DE345:AUS,SP,MY,MX,AR)
C804 1-117-203-11 ELECT 10000uF 20.00% 63V
(DE245:E,EA)
C805 1-130-781-00 MYLAR 0.22uF 5.00% 100V
C806 1-130-781-00 MYLAR 0.22uF 5.00% 100V
C807 1-104-664-11 ELECT 47uF 20.00% 25V
C808 1-104-664-11 ELECT 47uF 20.00% 25V
C810 1-126-960-11 ELECT 1uF 20.00% 50V
C811 1-126-942-61 ELECT 1000uF 20.00% 25V
C812 1-126-941-11 ELECT 470uF 20.00% 25V
C813 1-101-001-00 CERAMIC 0.001uF 50V
C814 1-101-001-00 CERAMIC 0.001uF 50V
C815 1-126-967-11 ELECT 47uF 20.00% 50V
C816 1-126-951-11 ELECT 470uF 20.00% 35V
C817 1-104-664-11 ELECT 47uF 20.00% 25V
C818 1-126-960-11 ELECT 1uF 20.00% 50V
C822 1-126-965-11 ELECT 22uF 20.00% 50V
C826 1-104-664-11 ELECT 47uF 20.00% 25V
C827 1-126-960-11 ELECT 1uF 20.00% 50V
C828 1-126-960-11 ELECT 1uF 20.00% 50V
C829 1-104-664-11 ELECT 47uF 20.00% 25V
CC02 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC03 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC04 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC05 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC06 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC07 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC12 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC14 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC16 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC18 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC20 1-164-096-11 CERAMIC 0.01uF 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC52 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC53 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC54 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC55 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC56 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CC57 1-128-809-11 CERAMIC 100PF 5% 50V
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
< CONNECTOR >
CN402 1-691-772-11 PLUG (MICRO CONNECTOR) 10P
CN403 1-569-315-11 SOCKET, CONNECTOR 5P
(DE345:AEP,AUS,MX,SP,MY,AR,CIS,EE,CH)
CN404 1-794-003-11 CONNECTOR 15P
(DE345:US,CND,E,EA,PX,AUS,MX,SP,MY,AR,CH)
CN404 1-794-005-11 CONNECTOR 19P
(DE245:AEP,UK,CIS,EE/DE345:AEP,CIS,EE)
CN404 1-794-002-11 CONNECTOR 13P (DE245:AUS,E,EA,MX,SP,MY)
* CN791 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P
* CN801 1-564-521-11 PLUG, CONNECTOR 6P
* CN802 1-564-214-11 PIN, CONNECTOR (B3PS-VH) 3P
CNS401 1-569-321-11 SOCKET, CONNECTOR 15P
CNS403 1-569-315-11 SOCKET, CONNECTOR 5P (DE345)
< DIODE >
D301 8-719-070-77 DIODE SVC201SPA-M1-AC
D470 8-719-991-33 DIODE 1SS133T-77
D505 8-719-991-33 DIODE 1SS133T-77
D506 8-719-991-33 DIODE 1SS133T-77
D508 8-719-991-33 DIODE 1SS133T-77
D510 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D606 8-719-991-33 DIODE 1SS133T-77
D607 8-719-991-33 DIODE 1SS133T-77
D608 8-719-991-33 DIODE 1SS133T-77
D610 8-719-991-33 DIODE 1SS133T-77
D627 8-719-991-33 DIODE 1SS133T-77
D706 8-719-991-33 DIODE 1SS133T-77
D710 8-719-991-33 DIODE 1SS133T-77
D721 8-719-991-33 DIODE 1SS133T-77
D722 8-719-991-33 DIODE 1SS133T-77
D725 8-719-991-33 DIODE 1SS133T-77
D726 8-719-991-33 DIODE 1SS133T-77
D727 8-719-991-33 DIODE 1SS133T-77
D728 8-719-991-33 DIODE 1SS133T-77
MAIN
