Sony STR-DE545 Operating Instructions

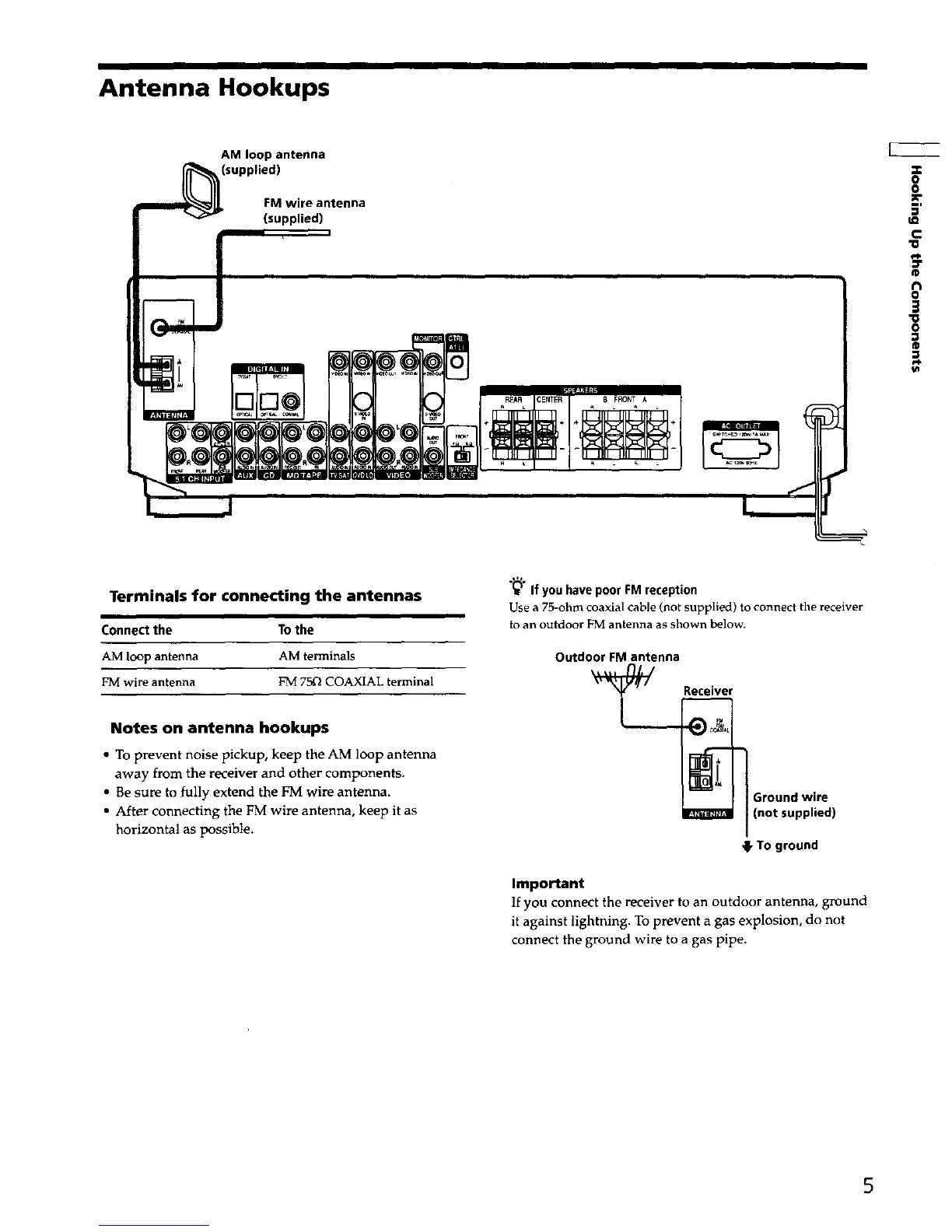

Antenna Hookups
i i
AM loop antenna
(supplied)
FM wire antenna
(supplied)
_P
o
o
3
U=
c
o
'u
o
-1
Terminals for connecting the antennas
Connectthe Tothe
AM loop antenna AM terminals
FM wire antenna FM 754)COAXIAL terminal
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
.,,%
If you havepoorFM reception
Use a 75-ohm coaxial cable (not supplied) to conned the receiver
to an outdoor FM antenna as shown below.
Outdoor FM antenna
_ Receiver
_ Ground wire
(not supplied)
_, To ground
Important
If you connect the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
5

Sony STR-DE545 Specifications

General

Impedance	8 ohms
Total Harmonic Distortion	0.09%
Tuning Range	FM, AM
Input Sensitivity	250 mV (line)
Speaker Load Impedance	8 ohms
Video Connections	Composite
Frequency Response	10 Hz - 50 kHz
Inputs	4 Audio, 3 Video
Outputs	2 Audio, 1 Video
Digital Inputs	1 optical, 1 coaxial
Dimensions	430 x 298 mm
Power Output	100W per channel (8 ohms, 20 Hz - 20 kHz, THD 0.09%)
