Getting Started
Description and location of parts
.
Getting Started

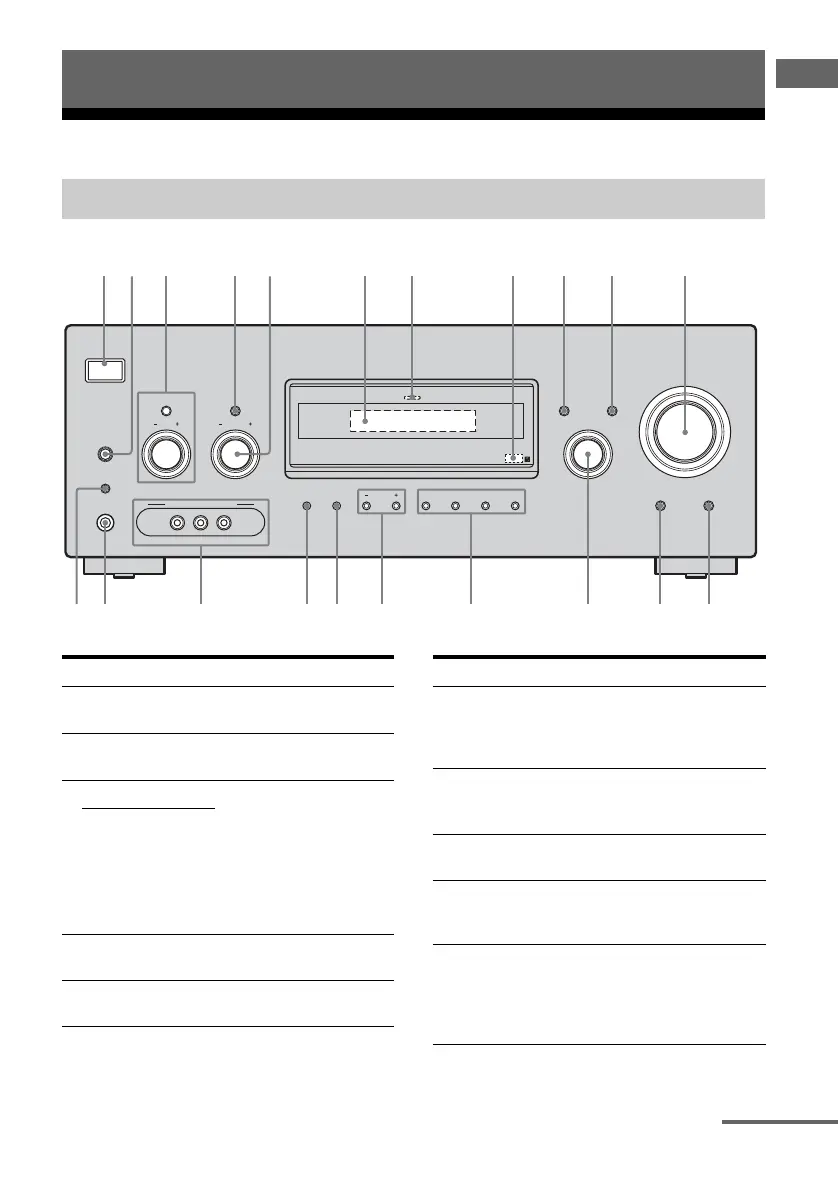

Front panel
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
CATEGORY
MODE
CATEGORY 2CH A.F.D. MOVIE MUSIC
AUTO CAL DIRECT
INPUT SELECTOR
TONE MODE
TUNINGTONE
6 74
8
qs
qd
1 32 59q; qa
qfqgw; qhqlwa
qjqk
TUNING MODE
MULTI CHANNEL DECODING
DISPLAY INPUT MODE
MASTER VOLUME
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
CATEGORY
MODE
CATEGORY 2CH A.F.D. MOVIE MUSIC
AUTO CAL DIRECT
INPUT SELECTOR
TONE MODE
TUNINGTONE
6 74
8
qs
qd
1 32 59q; qa
qfqgw; qhqlwa
qjqk
TUNING MODE
MULTI CHANNEL DECODING
DISPLAY INPUT MODE
MASTER VOLUME
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
CATEGORY
MODE
CATEGORY 2CH A.F.D. MOVIE MUSIC
AUTO CAL DIRECT
INPUT SELECTOR
TONE MODE
TUNINGTONE
6 74
8
qs
qd
1 32 59q; qa
qfqgw; qhqlwa
qjqk
TUNING MODE
MULTI CHANNEL DECODING
DISPLAY INPUT MODE
MASTER VOLUME
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 32, 43, 44, 66).
B SPEAKERS
(OFF/A/B/A+B)
Press to select the speaker
system (page 33).
C TONE MODE Adjusts the tonal quality
(bass/treble level) of the
front speakers.
Press TONE MODE
repeatedly to select bass or
treble level, then turn
TONE +/– to adjust the
level (page 46).
TONE +/–
D TUNING MODE Press to select the tuning
mode (page 67, 69, 72–74).
E TUNING +/– Turn to scan a station (page
67, 69, 72–74).
Name Function
F Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
G MULTI
CHANNEL
DECODING lamp
Lights up when multi
channel audio signals are
decoded (page 44).
H Remote sensor Receives signals from
remote commander.
I DISPLAY Press to select information
displayed on the display
(page 74, 83).
J INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 78).
continued
